2 Assembly instructions LBO 27" SIPLACE X4 LBO 27" 09/2007 Edition 72 : Make sure that the cable loop of the stopper comes over the conveyor width motor like shown on the following picture. 2 2 2 2 2 2 2 2 2 2 …
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
71
: Take the stopper for PA2 and put it with the cutout onto the alloy block. Disconnect the right
hose from the pneumatic cylinder before you start.
2
2
Cutout for the alloy block
Disconnect hose for assembly
Holes for the two M6 x 40 mm hexagon socket screws. In the left one there is already one of the
screws inserted because it’s difficult to get it in when the stopper is assembled..
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
72

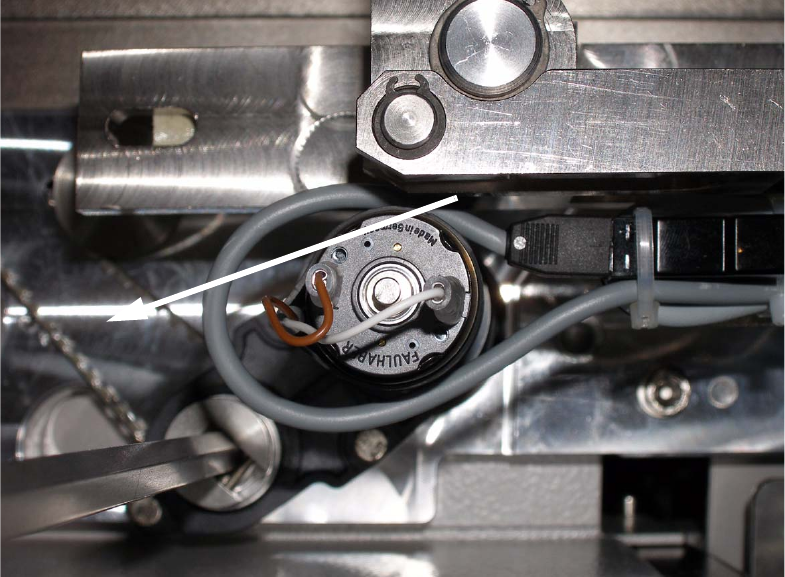

: Make sure that the cable loop of the stopper comes over the conveyor width motor like shown
on the following picture.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
73
: Use two M6 x 40 mm hexagon socket screws to mount the stopper to the alloy block. If neces-
sary use a long hexagon socket spanner to fasten the hidden screws.
: Reconnect the pneumatic hose to the pneumatic cylinder. Be aware, that the hose can not rub
on any other parts of the machine. If necessary cut the hose into the fitting length.
2
2
Left M6x40 mm hexagon socket screw
Right M6x40 mm
hexagon socket
screw
Reconnect pneu-
matic hose
Be aware of rubbing parts to the hose
