LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
73
: Use two M6 x 40 mm hexagon socket screws to mount the stopper to the alloy block. If neces-
sary use a long hexagon socket spanner to fasten the hidden screws.
: Reconnect the pneumatic hose to the pneumatic cylinder. Be aware, that the hose can not rub
on any other parts of the machine. If necessary cut the hose into the fitting length.
2
2

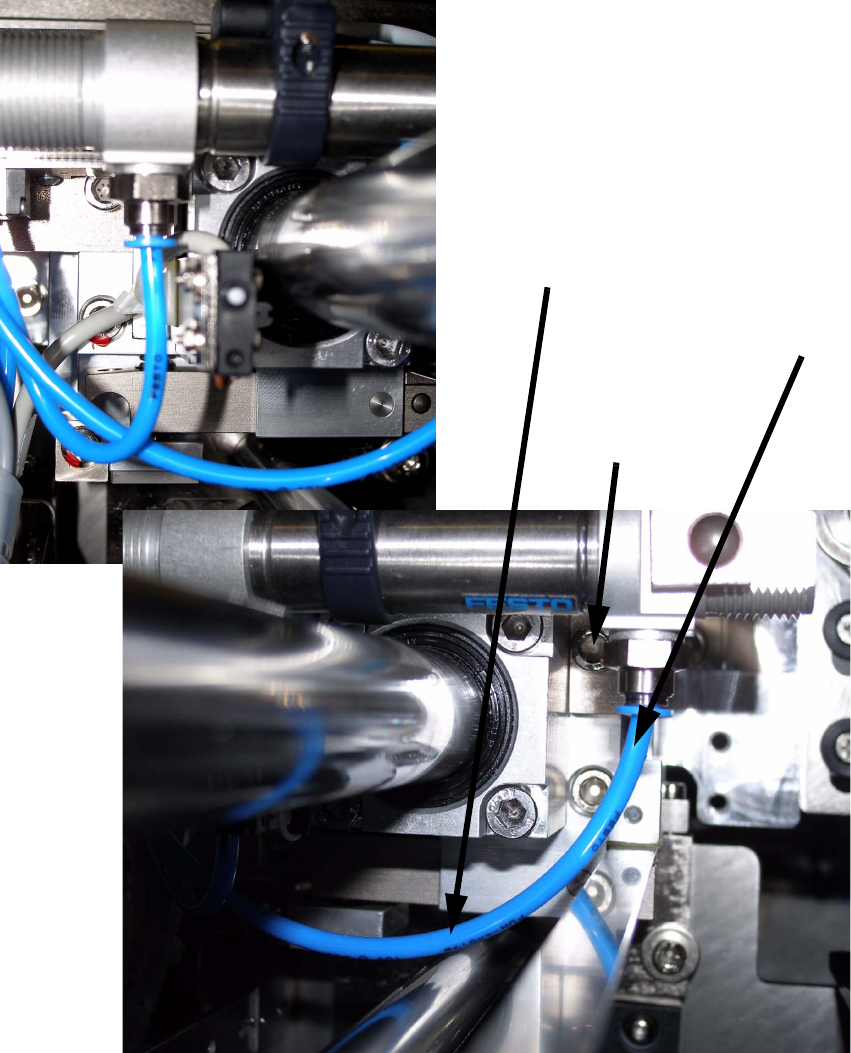

Left M6x40 mm hexagon socket screw
Right M6x40 mm
hexagon socket
screw
Reconnect pneu-
matic hose
Be aware of rubbing parts to the hose
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
74
At the following picture you can see the mounted stopper. 2
2

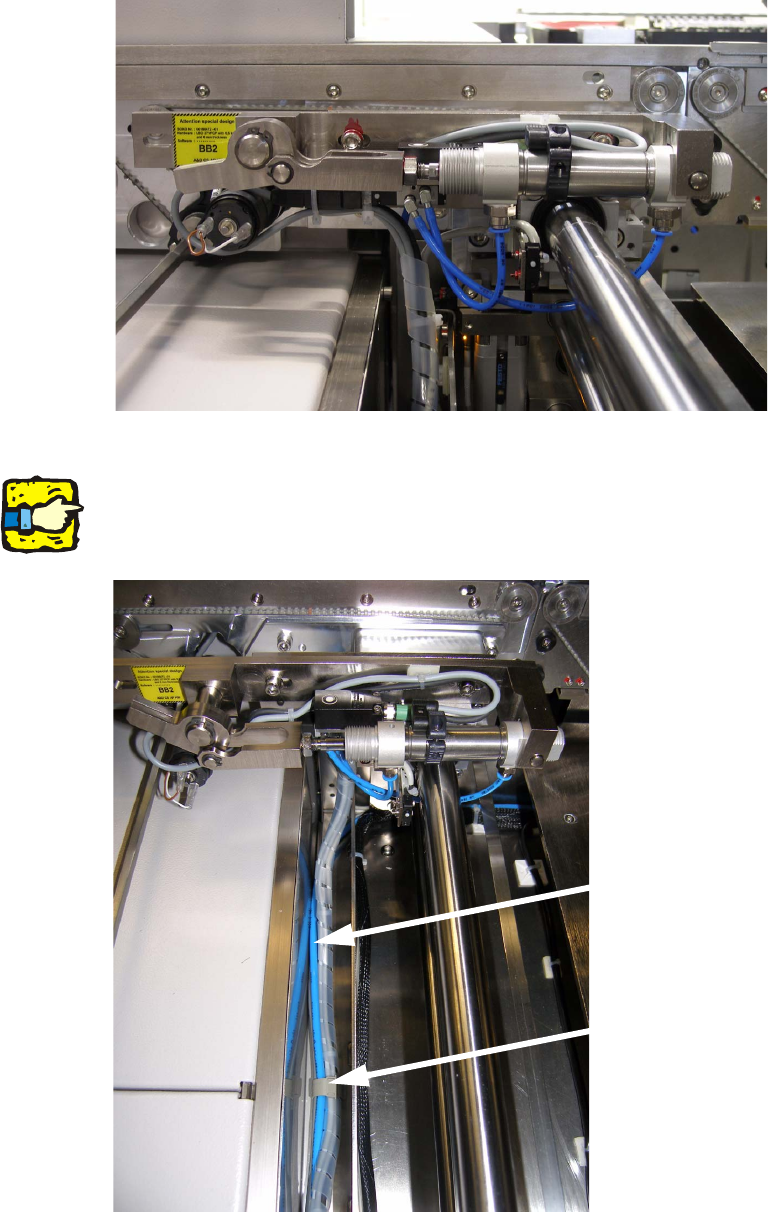

: The cable loom of the stopper has to be run like shown below.
2
The cable loom must not rub on any part of the machine! 2
2
2
Run the cable loom in the out-
side duct of the conveyor
Fix the cable loom and the other
cables and hoses with the returnable
cable clip attached before
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
75

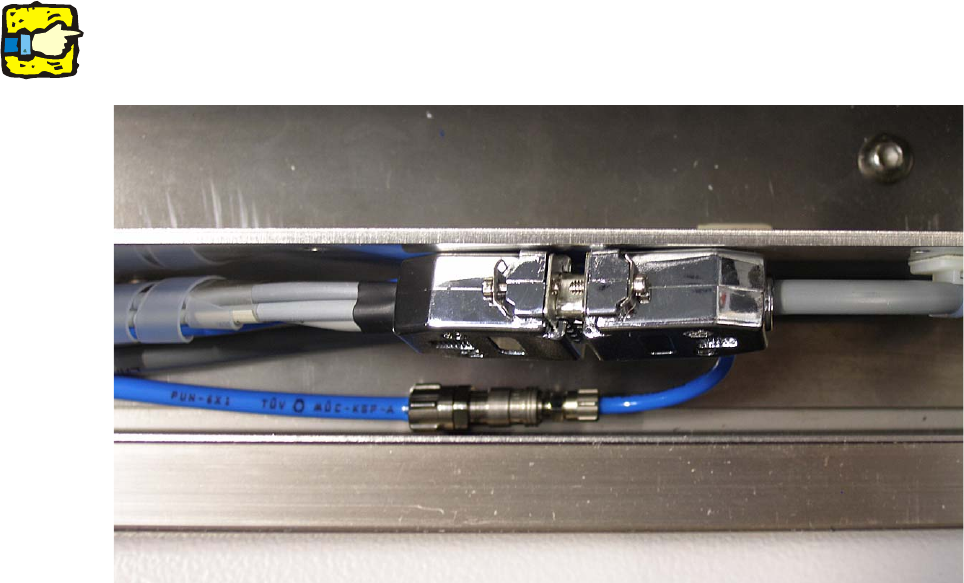

: Connect the Sub-D-plug and the Sub-D-coupling and connect the PUN 4 hose to the PUN 6
hose. See picture below.
2
All cables and hoses have to be hidden in the duct and should not reach out of it. 2
2
2
