LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4 09/2007 Edition 75 : Connect the Sub-D-plug and the Sub- D-coupling and connect the PUN 4 hose to the PUN 6 hose. See pi cture belo w . 2 All cables and hoses …
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
74
At the following picture you can see the mounted stopper. 2
2
: The cable loom of the stopper has to be run like shown below.
2
The cable loom must not rub on any part of the machine! 2
2
2
Run the cable loom in the out-
side duct of the conveyor
Fix the cable loom and the other
cables and hoses with the returnable
cable clip attached before
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
75
: Connect the Sub-D-plug and the Sub-D-coupling and connect the PUN 4 hose to the PUN 6
hose. See picture below.
2
All cables and hoses have to be hidden in the duct and should not reach out of it. 2
2
2
2
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
76
2.7 Settings
: Before you can start the settings, make sure that no tools or materials are left inside the ma-
chine. HEADCRASH!
: If you are sure that nothing is left inside the machine, turn on the machine and change to SI-
TEST after the boot up.
2.7.1 Calibration of the proximity switch

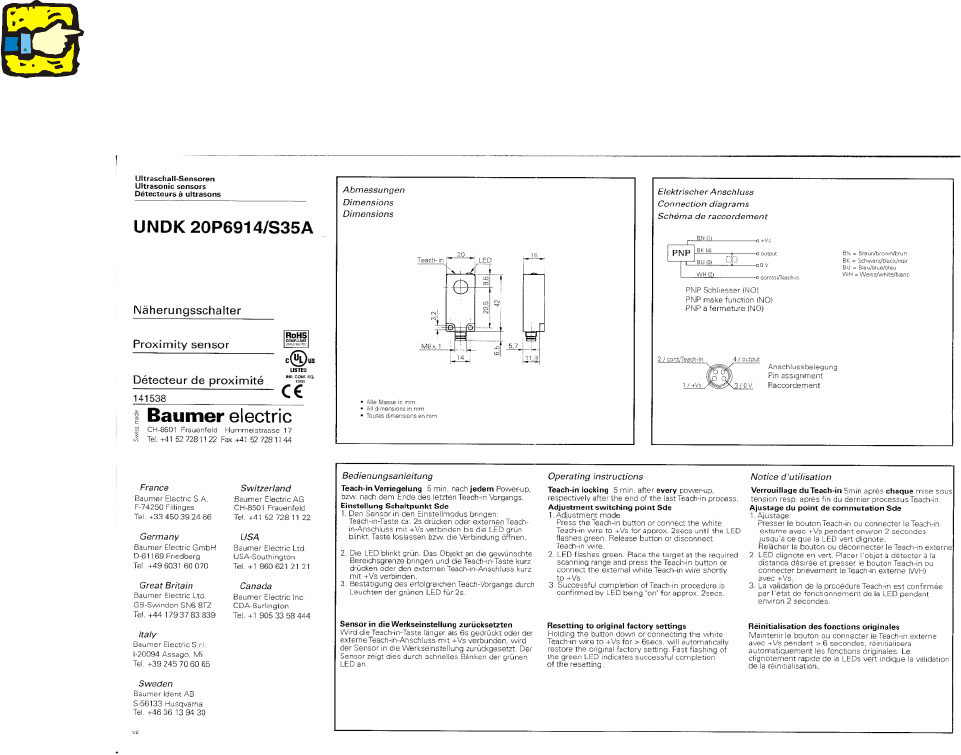

For calibrating the proximity sensor of the stopper, you need any test board. 2
: Adjust the conveyor to the width of this arbitrary board.
: Put in the test board and move it over the sensor of the stopper.
: Follow the instruction of the manufacturer of the sensor to calibrate it.
2
The sensor has a “teach-in locking”, which activates 5 minutes after every power-up, respectively
after the end of the last teach-in process. To deactivate the locking, the sensor has to be power-
less for a few seconds. Therefore disconnect the Sub-D-connectors for a few seconds and then
reconnect them again. Then the sensor can be calibrated for the next 5 minutes. 2
2
