2 Assembly instructions LBO 27" SIPLACE X4 LBO 27" 09/2007 Edition 78 2.7.2 Adjustment of the stopper position : Adjust the stopper s to 236 mm between the stopper and the laser ligh t barrier by using th e ca-…
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
77
2
2

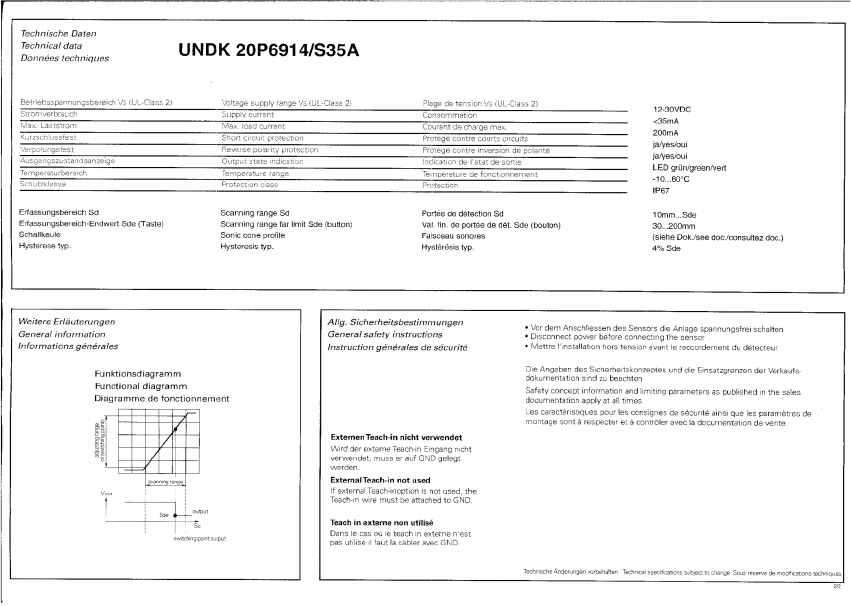

Checking the correct adjustment of the sensor 2
: Remove the PCB from the conveyor and place it sideways across the conveyor side walls
above the sensor.
The LED must not light up; the LED must only light up if there is a PCB on the conveyor.
2
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
78
2.7.2 Adjustment of the stopper position
: Adjust the stoppers to 236 mm between the stopper and the laser light barrier by using the ca-
libration board with 236 mm length.
: It is necessary to switch on the laser light barriers in each processing area with SITEST. To
allow that the laser light barrier can be activated whilst the cover of the machine is open, you
have to change the run option of the machine to the “safe mode”.
2
CAUTION:
Never look directly into the laser light! This can harm your eyes! 2
2

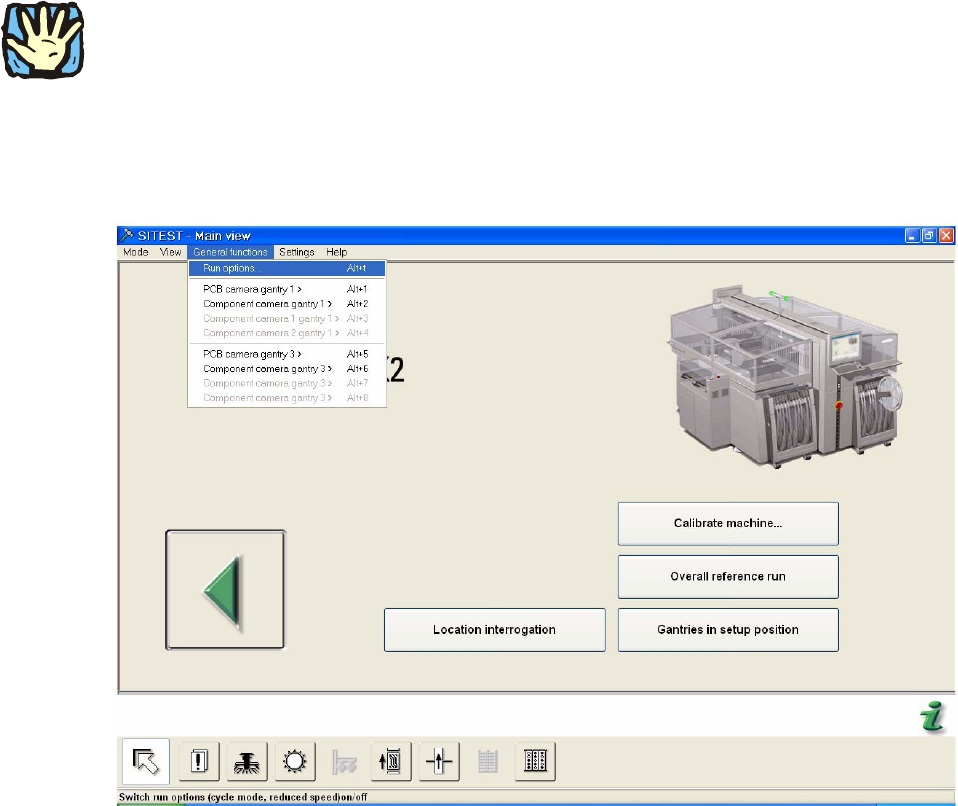

: Change to SITEST.
: Choose in “General functions” -> “Run options”.
2
2
2
2
2
2
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
79

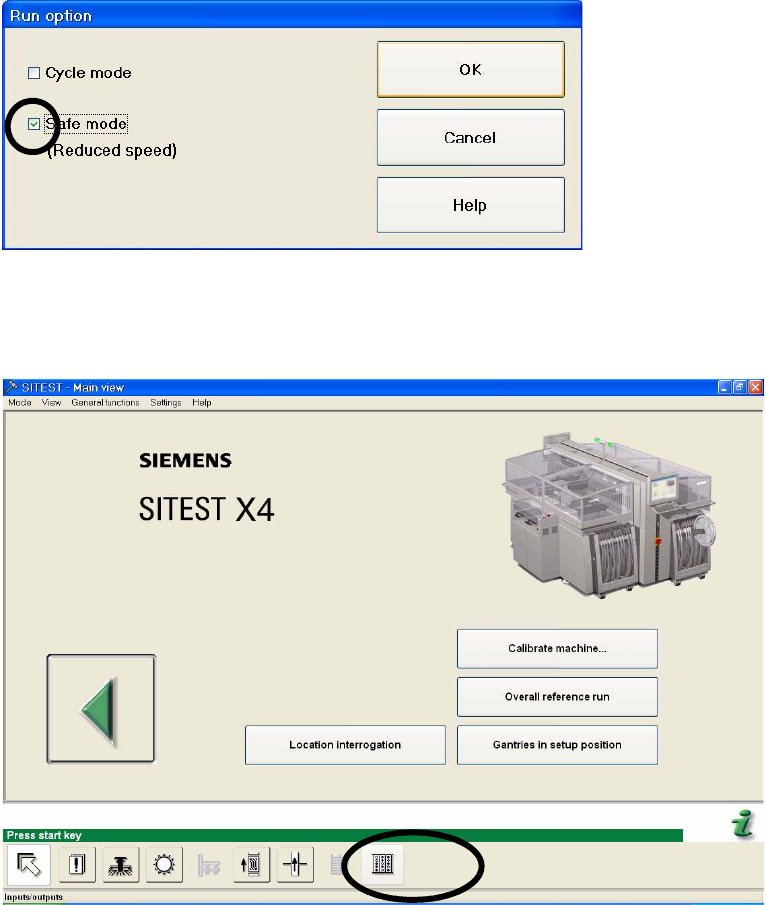

: Set the tick to “Safe mode” and click on “OK”.
2
2
: Now chose “Input/Outputs”.
2
2
2
2
2
2
2
2
