LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4 09/2007 Edition 81 : Choose the concernin g stopper and set the tick behind it. : Click on “Set” to move the stopper up. C li ck on “Delete” to move down the s…
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
80

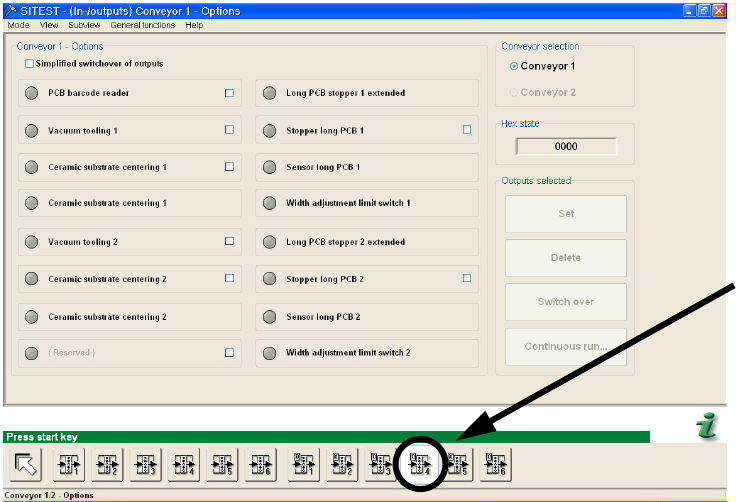

: For the adjustment the stoppers must be moved up. Therefore follow the following steps.
Click window 4.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Click here
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
81

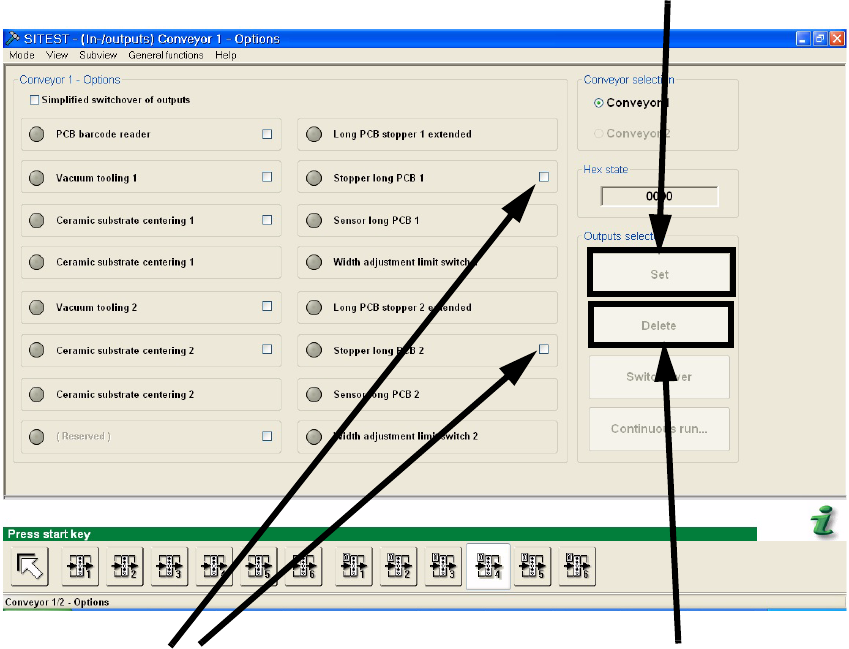

: Choose the concerning stopper and set the tick behind it.
: Click on “Set” to move the stopper up. Click on “Delete” to move down the stopper.
2
2
2
2
2
2
2
2
2
Click on „Set“ to move up
the chosen stopper.
Click on „Delete“ to move
down the chosen stopper.
Set the tick behind the chosen stopper
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
82

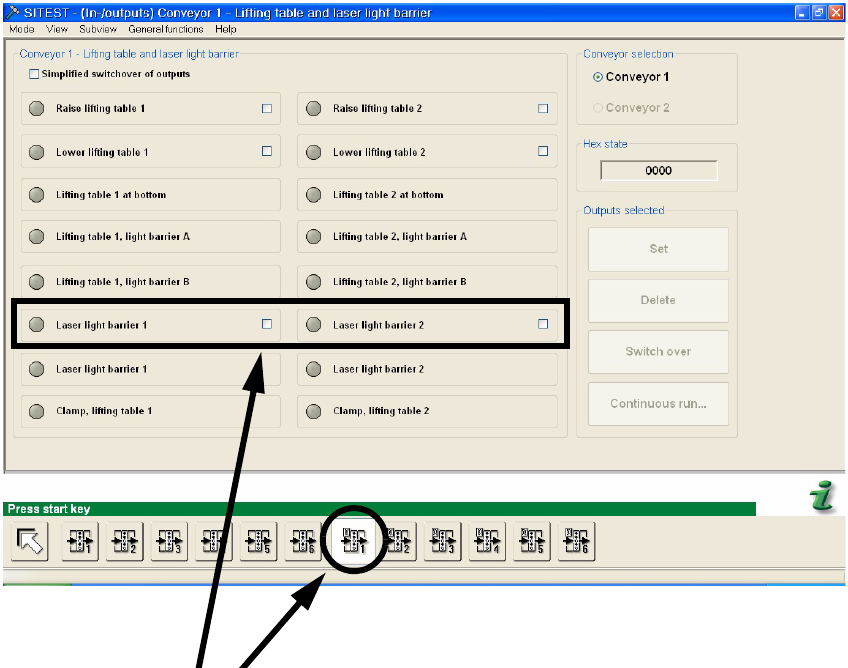

: Activate the laser light barrier 1 for the stopper adjustment in PA1 or the laser light barrier 2 for
the stopper adjustment in PA2. Set the tick behind the concerning laser light barrier and click
on “Set” to switch it on. To switch the laser off, click on “Delete”.
2
2
2
2
2
2
2
2
2
2
2
2
