M3PlusPartsList - 第17页
LC2-0312 V ision Attachment 5 2 Head 1 2 4 5 3 6
LC2-0312
Head
5
1
Head
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1
LC2-M7120-10X SHAFT, HEAD SUB ASSY 4
39
LC2-M71C3-10X CLAMP STAY 1
2
KGB-M7106-70X SHAFT, NOZZLE 1
40
LC2-M71C1-10X HANDLE 1
3
KG7-M7137-A0X LEAF SPRING 2
41
LC2-M71C2-10X STAY, HANDLE 1
4
90990-28J002 WASHER PLAIN 2
42
90K61-001L05 AC SERVO MOTOR 1
5
KG7-M7169-00X SCREW 2
43
LC2-M7101-10X HOUSING 1
6
90990-19J008 NEEDLE PIN 1
44
LC2-M71C4-10X COVER 1
7
KM1-M7106-90X SPG. NOZZLE 1
45
LC2-M7139-10X PULLEY, MOTOR 1
8
90185-00J00 NUT U : FU00SS(M10) 1
46
KV1-M9140-A0X PULLEY, CONV. ASSY 1
9
LC2-M71W1-10X WASHER 1
47
LC2-M710D-00X FRONT PLATE 1
10
LC2-M7109-00X PULLEY 1
48
LC2-M71E1-10X BAR, MULTI MACS 2
11
LC2-M7144-00X PLATE, BEARING 2
49
LC2-M7163-00X EJECTOR, RESIN 1
12
LC2-M7110-10X COLLAR 1
50
$UT4M JOINT 4
13
LC2-M7106-11X BALL SPLINE 1
51
LC2-M7118-10X POLE 4
14
LC2-M710M-00X PLATE, BRG 1
52
LC2-M7121-10X PLATE, MOTOR 1
15
LC2-M7126-00X WASHER 1
53
LC2-M71W3-10X BUSH 4
16
LC2-M71A3-00X U-NUT, M5 1
54
LC2-M7102-10X PLATE, HEAD 1
17
LC2-M71A4-00X BALL BEARING 1
55
LC2-M7125-10X PLATE, NUT-M 1
18
LC2-M71A5-00X BOLT HEX. SOCKET HEAD 4
56
LC2-M7138-00X BELT, R 1
19
LC2-M7130-10X Z DRIVE SUB ASSY 4
57
90K55-3U075A AC SERVO MOTOR 1
20
LC2-M7103-12X BUSH 1
58
90K55-3U075B AC SERVO MOTOR 1
21
LC2-M71W2-00X PIN, SPRING 1
59
90K55-3U075F AC SERVO MOTOR 1
22
$TSH4-M5M JOINT 1
60
90K55-3U075S AC SERVO MOTOR 1
23
LC2-M7146-10X BRACKET, Z 1
61
$TL6-01 JOINT 2
24
LC2-M7122-10X RACK 1
62
KGB-M71E4-00X SEAL, MULTI MACS 2
25
LC2-M7124-00X PLATE, NUT 1
63
LC2-M710J-00X PARALLEL PIN 2
26
LC2-M710E-00X POST, SPRING 1
64
LC2-M7154-10X SPRING, RETURN 4
27
LC2-M7123-10X PINION 1
65
LC2-M71A6-00X PAD 1
28
LC2-M7148-01X STOPPER 1
66
LC2-M710H-00X POST, SPRING 4
29
LC2-M7145-00X DAMPER 1 2
67
LC2-M71C7-10X COVER, PULLEY 1
30
LC2-M7136-10X GUIDE 1
68
LC2-M710G-00X BRACKET, SPRING 1
31
LC2-M71A1-00X WASHER 2
69
92A08-03303 SET SCREW M3X3 8
32
LC2-M71A2-00X WAVE WASHER 1
70 KGB-M7163-A0X EJECTOR (Spare) 1 SPARE
33
92907-08600 WASHER PLAIN 1
71 KM1-M7163-30X VALVE (OPERATE) 1 SPARE
34
92A08-03303 SET SCREW M3X3 2
72 KM1-M7163-20X VALVE (BLOW) 1 SPARE
35
95304-08700 NUT HEXAGON 2
73
36
98504-03006 SCREW PAN HEAD 2
74
37
$UK4M JOINT 4
75
38
LC2-M71C6-10X STAY, JOINT 1
76

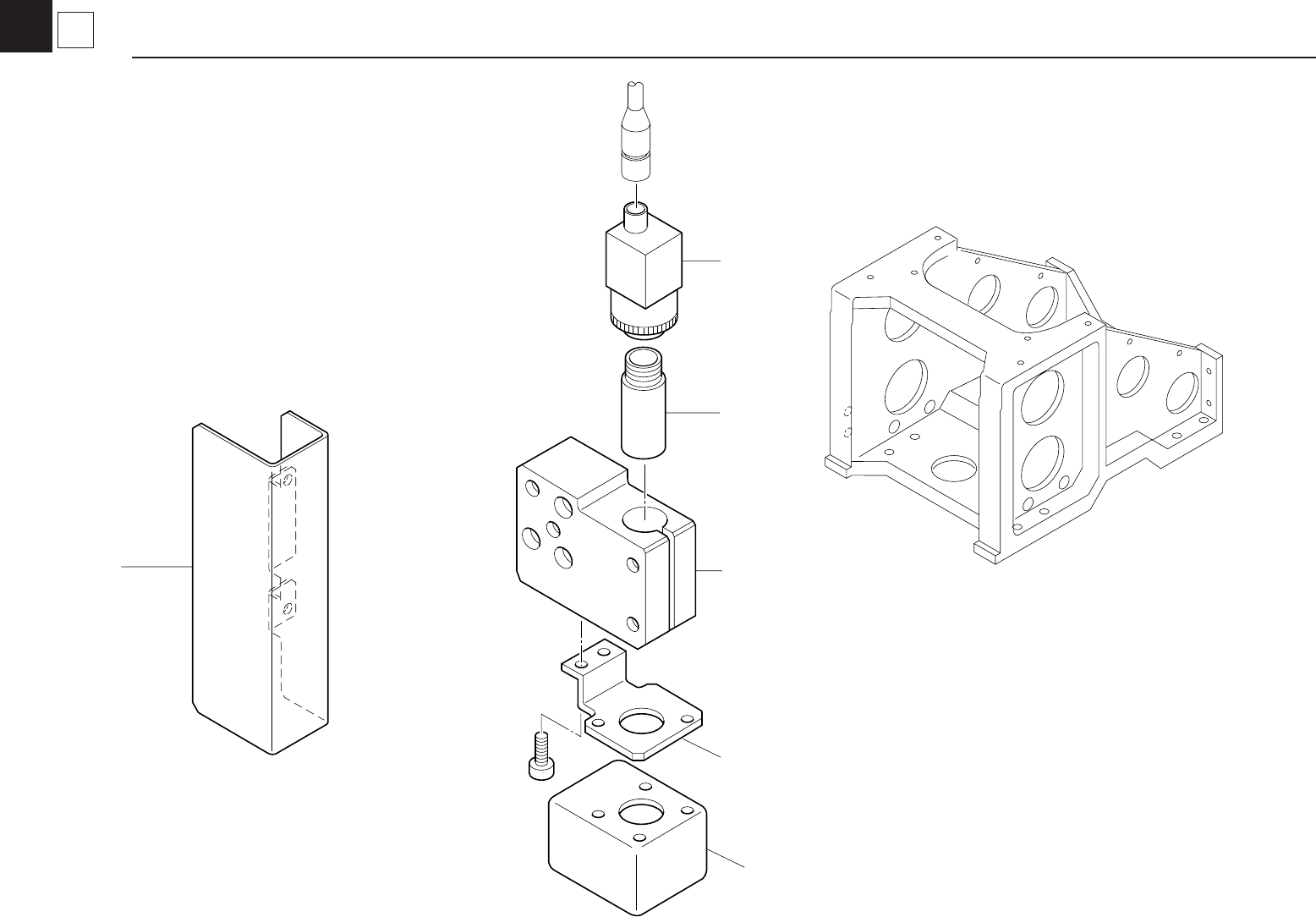

LC2-0312
Vision Attachment
5
2
Head
1
2
4
5
3
6
LC2-0312
Vision Attachment
5
2
Head
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KGA-M7210-01X CCD CAMERA 1 3 9
2 KV7-M7211-00X LENS 095 1 4 0
3 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1 4 1
4 LC2-M7133-00X HOLDER, CAMERA 1 4 2
5 LC2-M7135-00X STAY, FID. LIGHT 1 43
6 LC2-M7134-10X COVER, CAMERA 1 4 4
7 45
8 46
9 47
10 48
11 49
12 50
13 51
14 52
15 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
