LC2-0312 V ision Attachment 5 2 Head No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks 1 K GA - M 7 21 0 - 0 1X CCD CAMERA 1 3 9 2 KV7-M7211-00X LENS 095 1 4 0 3 KV7-M7600-00X F IDUCIAL LI…
LC2-0312
Vision Attachment
5
2
Head
1
2
4
5
3
6
LC2-0312
Vision Attachment
5
2
Head
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KGA-M7210-01X CCD CAMERA 1 3 9
2 KV7-M7211-00X LENS 095 1 4 0
3 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1 4 1
4 LC2-M7133-00X HOLDER, CAMERA 1 4 2
5 LC2-M7135-00X STAY, FID. LIGHT 1 43
6 LC2-M7134-10X COVER, CAMERA 1 4 4
7 45
8 46
9 47
10 48
11 49
12 50
13 51
14 52
15 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
LC2-0312

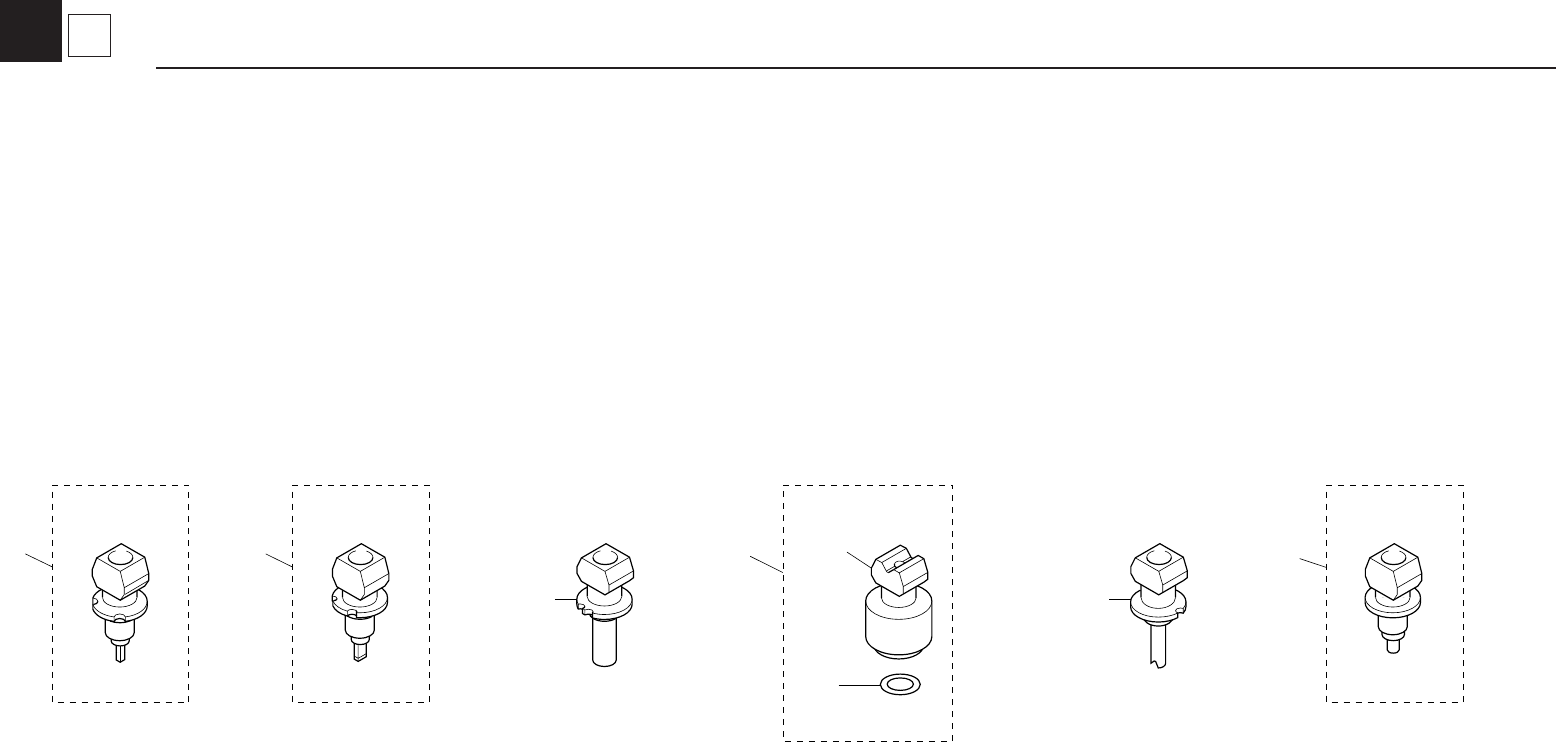

Nozzle Selection
5
3
Head
4
6
1 2
5
3
7
Type71A/81A Type82A
8
Type73A/83A Type76A/86A Type79A/89AType74A/84A
