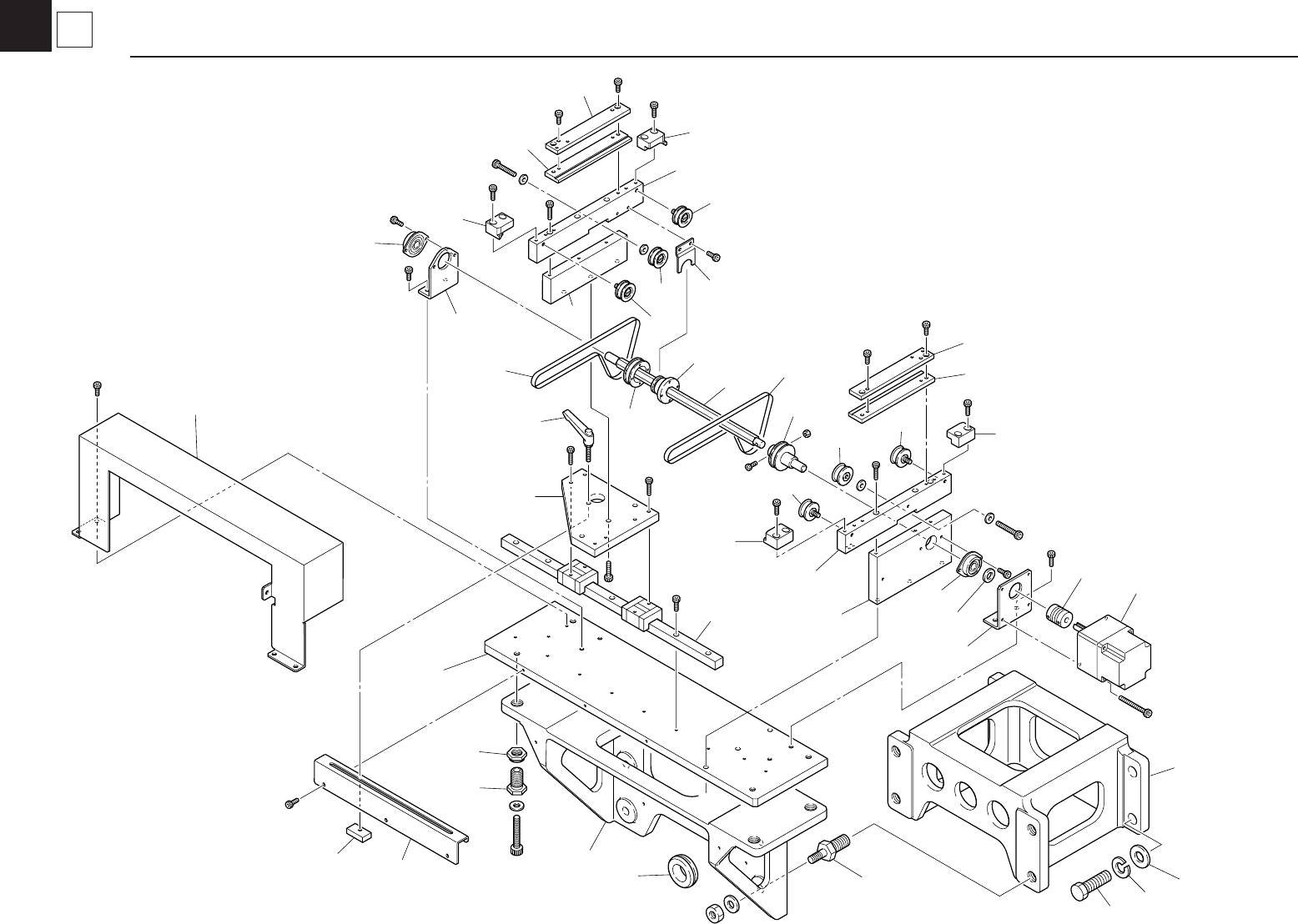

LC2-0312 Extention Conveyor (Option) 7 5 Conveyor 1 2 5 13 14 25 8 3 9 16 16 17 17 15 23 18 10 11 7 12 19 43 44 45 46 20 26 4 6 21 24 30,38 31,39 34,42 31,39 21 21 21 29,37 32,40 33,41 21 28,36 27,35 28,36 27,35 22 22
LC2-0312
Push-Up
7
4
Conveyor
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 LC2-M9201-02X PLATE, PUSHUP 1 3 9
2 LC2-M9202-00X BAR, JOINT 2 4 0
3 LC2-M9203-00X SHAFT, PIVOT 2 4 1
4 LC2-M9204-00X SHAFT, LINK 2 4 2
5 LC2-M9205-00X SHAFT, CYL. 1 4 3
6 LC2-M9206-00X ROD 2 44
7 LC2-M9207-00X LINK 4 4 5
8 LC2-M9208-00X BRACKET, CYL. 1 4 6
9 LC2-M9209-00X CYLINDER 1 4 7
10 $TL4-M5M JOINT 2 4 8
11 LC2-M920A-20X LINEAR BUSH 4 4 9
12 LC2-M920B-XXX SHIM SEL. 1 5 0
13 LC2-M920C-01X BRACKET, SENSOR 1 5 1
14 LC2-M653G-00X SENSOR ASSY 1 5 2
15 LG8-M18A2-00X LINEAR BUSH 1 5 3
16 LC2-M920F-00X HOLDER 1 5 4
17 LC2-M920G-00X FLOATING JOINT 1 5 5
18 LC2-M920H-00X WASHER 1 5 6
19 LC2-M920J-00X PLATE 2 5 7
20 LC2-M920K-00X SHEET 1 5 8
21 LC2-M911X-00X BEARING 8 5 9
22 LC2-M920D-00X PUSH UP PIN UNIT 6 6 0
23 KG2-M9208-10X BRACKET 1 6 1
24 KG2-M9209-11X SHAFT 1 6 2
25 K98-M9213-10X MAGNET 1 6 3
26 91317-04005 BOLT HEX. SOCKET HEAD 1 6 4
27 95307-05600 NUT HEXAGON 1 6 5
28 92990-04200 WASHER PLAIN 1 6 6
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
LC2-0312
Extention Conveyor (Option)
7
5
Conveyor
1
2
5
13
14
25
8
3
9
16
16
17
17
15
23
18
10
11
7
12
19
43
44
45
46
20
26
4
6
21
24
30,38
31,39
34,42
31,39
21
21
21
29,37
32,40
33,41
21
28,36
27,35
28,36
27,35
22
22
LC2-0312
Extention Conveyor (Option)
7
5
Conveyor
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1
LC2-M13G1-00X GROMMET 1
39
LC2-M9555-00X BELT 2
L=400MM
2
LC2-M9523-00X ANGLE PLATE 1
40
LC2-M9562-00X PLATE, BASE 1
Right
3
LC2-M9524-00X FRAME 1
41
LC2-M9563-00X PLATE, JOINT 1
Right
4
LC2-M9525-00X FRAME 1
42
LC2-M9564-00X COVER 1
Right
5
LC2-M9526-00X RAIL, SLIDE 1
43
LC2-M9583-00X JOINT PLATE 1
6
LC2-M9527-00X PLATE, GUIDE 1
44
91317-16050 BOLT HEX, SOCKET HEAD 4
7
LC2-M9528-00X BRACKET, MOTOR 1
45
92907-16200 WASHER, PLAIN 4
8
LC2-M9529-00X BOLT 4
46
92907-16100 WASHER, SPLING 4
9
LC2-M952A-00X PULLEY, DRIVE F 1
47
10
LC2-M952B-00X LINEAR GUIDE 1
48
11
LC2-M952C-00X GRIP 1
49
12
LC2-M952D-00X COUPRING 1
50
13
LC2-M952E-00X BOLT 4
51
14
LC2-M952F-00X NUT 4
52
15
KG2-M9108-11X COLLAR, CONVEYOR 1
53
16
KGA-M9113-00X GUIDE 1, END 2
54
17
KGA-M9114-00X GUIDE 2, END 2
55
18
LC2-M9122-00X PULLEY, DRIVE R 1
56
19
LC2-M9130-00X DC MOTOR COMB. TYPE 1
57
20
KH2-M9121-00X BEARING 2
58
21
KV1-M9140-A0X PULLEY, CONV. ASSY 4
59
22
KV7-M9140-A0X PULLEY, CONV. ASSY 2
60
23
LG7-M900H-00X SHAFT, DRIVE 1
61
24
LG7-M900M-00X SUPPORT, BRG. 1
62
25
LC2-M952G-00X SQUARE NUT 1
63
26
LG7-M90A5-00X COLLAR, BRG. 1
64
27
LC2-M9541-00X GUIDE, BELT 2
L=200MM 65
28
LC2-M9542-00X GUIDE 2
L=200MM 66
29
LC2-M9543-00X BAR, JOINT F 1
L=200MM 67
30
LC2-M9544-00X BAR, JOINT M 1
L=200MM 68
31
LC2-M9545-00X BELT 2
L=200MM 69
32
LC2-M9572-00X PLATE, BASE 1
Left 70
33
LC2-M9573-00X PLATE, JOINT 1
Left 71
34
LC2-M9574-00X COVER 1
Left 72
35
LC2-M9551-00X GUIDE, BELT 2
L=400MM 73
36
LC2-M9552-00X GUIDE 2
L=400MM 74
37
LC2-M9553-00X BAR, JOINT F 1
L=400MM 75
38
LC2-M9554-00X BAR, JOINT M 1
L=400MM 76
