Installation Manual, Station Software Version 704.01 04/2010 Edition
The following diagram shows the hardware components of the computer system for the SIPLACE X2, X3,
X4 and X4I machines in one-computer operation:
Camera system
for 4 placement areas with 4 placement heads
with comp. vision and pcb position recognition
PS
Power supply
Production line -
LAN (hub)
Customer LAN
1 2
CAN bus
Remote control
Machine
Structure of the computer unit and its interfaces
Use of SIMATIC Box PC 827B SIPLACE X-Series
Basic setup Serial / SW: 704 / 1 – computer operation
Line computer
Siplace Pro
Line computer and
external networks
LAN
Computer unit
Touch
screen 1
User
interface
Touch
screen 2
Keyboard
1
Keyboard
2
Mouse
1
Mouse
2
Monitor
1
Monitor
2
USB hub
+5 V
+24 V+24 V
to
- Box PC 827B
- Video splitter
+24 V
Video
splitter
.
+24 V
Adapter
DVI-I
to VGA
VGA
+5 V
Core 2 Duo T7400 / 2,16 GHz, HSP 2 GB
Machine controller R1
SIMATIC Box PC 827B
P C I b u s
C
O
M
1
D
V
I
-I
U
S
B
1
U
S
B
2
U
S
B
3
HD
80 GB
L
A
N
1
U
S
B
4
L
A
N
2
Connec-
tion:
Compact
Flash
drive
CAN
1 2
PCI
COM 168
DVD
drive
2-channel
Hot
link
PCI
2-channel
Hot
link
PCI

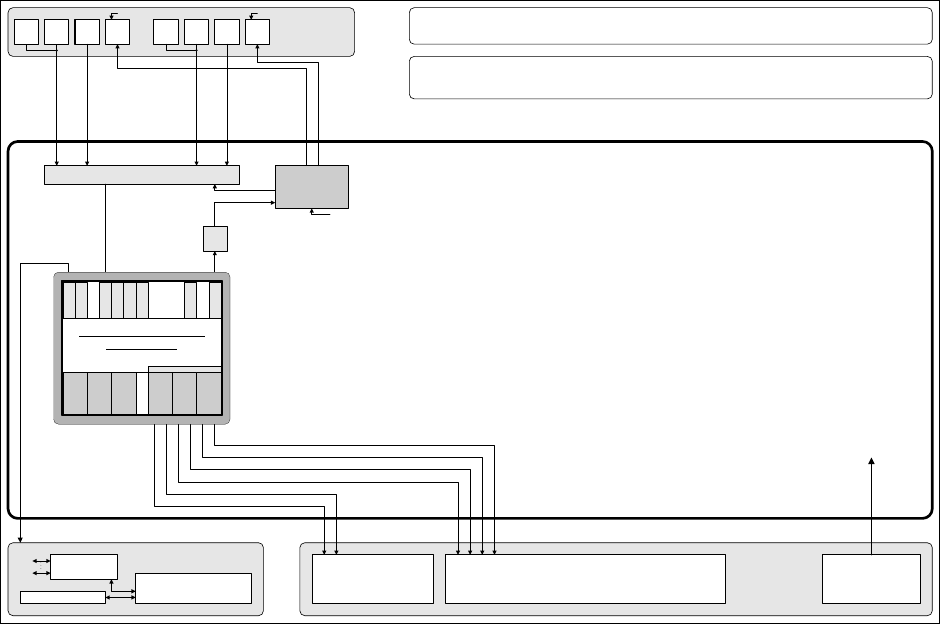

Fig. 4-4: Hardware components of the computer system for the SIPLACE X-series in one-computer operation (schematic block
diagram)
For the SIPLACE SX4 machine the hardware components of the computer system in one-computer
operation are the same as displayed in figure 4-4 with the following variation:
- No USB hub
23 of 60
Installation Manual, Station Software Version 704.01 04/2010 Edition
24 of 60
4.2.1 Machine/Vision computer (in two-computer operation)
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M 760 / 2 GHz
RAM
1 GB
Hard disk
Yes
External DVD drive
Yes (1 per machine)
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
Table 4-1: Machine/Vision computer hardware SIPLACE X-series
Name
SIMATIC Box PC 627B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
1 GB
Harddisk
Yes
External DVD drive
Yes (1 per machine)
Internal DVD drive
No
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
Table 4-2: Machine/Vision computer hardware SIPLACE X-series
Installation Manual, Station Software Version 704.01 04/2010 Edition
25 of 60
4.2.2 Machine/Vision computer (in one-computer operation)
Name
SIMATIC Box PC 627B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
1 GB
Harddisk
Yes
External DVD drive
Yes
Internal DVD drive
No
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
Table 4-3: Machine/Vision computer hardware SIPLACE SX1/2
Name
SIMATIC Box PC 827B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
2 GB
Harddisk
Yes
External DVD drive
No
Internal DVD drive
Yes
Serial interfaces
1
USB interfaces
Yes
External USB hub
Yes (X-series) / No (SX4)
Network
2x 100 MBit
Table 4-4: Machine/Vision computer hardware SIPLACE X-series and SX4
