KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M1306…
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。

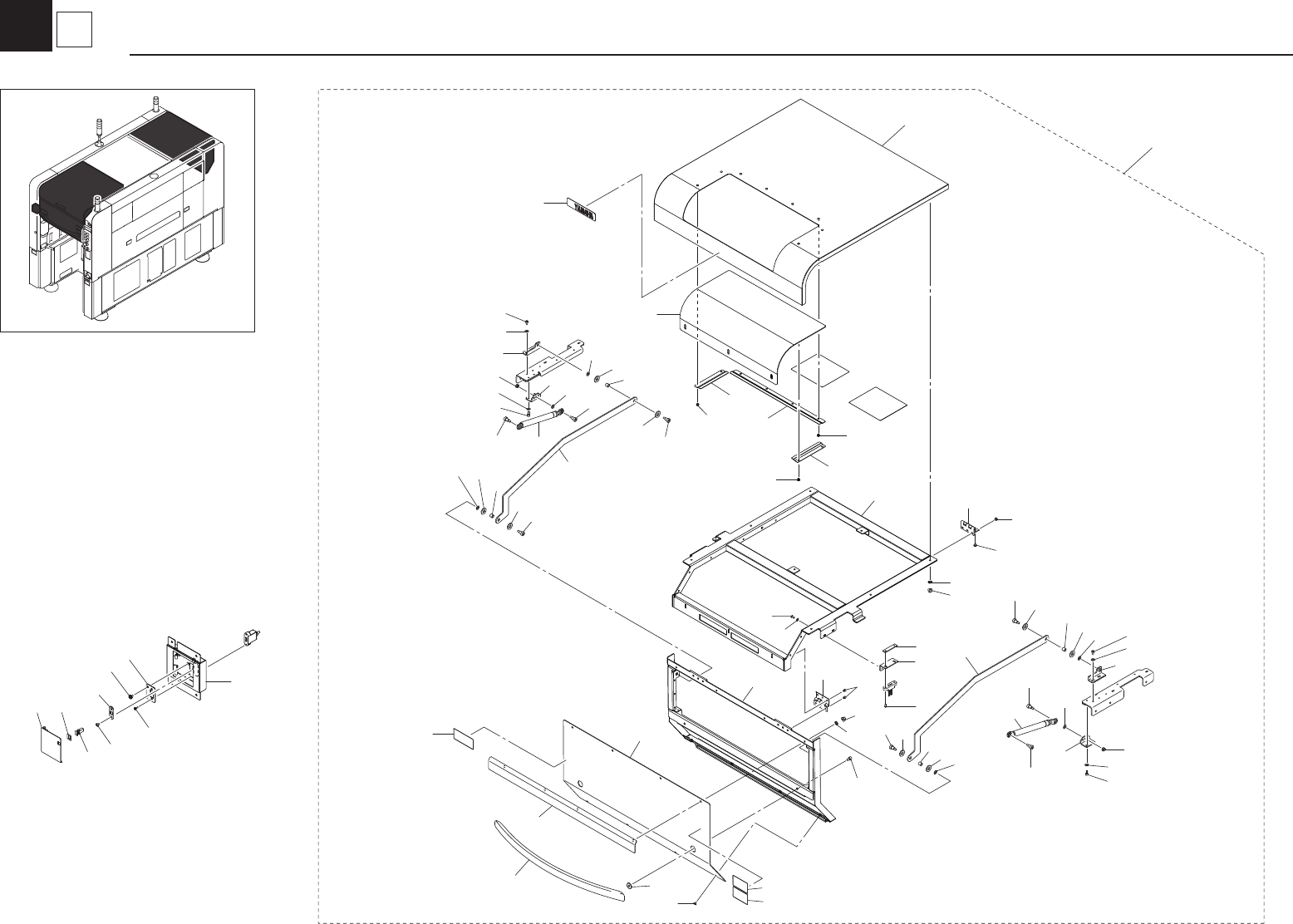

No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M1306-A1 COVER6 ASSY. 1 /
Í
2 KLF-M1305-01 COVER 6-1 1 /
Í
3 KLF-M130H-02 COVER,FAN 1 /
Í
4 KLF-M1329-01 COVER 29 2 /
Í
5 KLF-M26F4-00 PLATE 4 2 . /
Í
6 KLF-M26F5-00 PLATE 5 2 /
Í
7 90990-12J001 SCREW BIN.HEAD W/W 16
8 90990-12J004 SCREW BIN.HEAD W/W 27
9 91312-05008 BOLT HEX.SOCKET HEAD 20 M5X8
10 92902-04200 WASHER PLAIN 4
11 98902-03005 SCREW BINDING HEAD 8
12 KLF-M130F-02 BRKT.,FAN 2 /
Í
13 KLF-M1370-00 DAMPER 4 /
Í
14 KLF-M1371-00 TAPE 12 /
Í
15 KLF-M1372-01 COVER 72 1 /
Í
16 KLF-M1335-00 BRKT.2,GATE COVER 2 /
Í
17 KLF-M1379-00 COVER 79 1 /
Í
18 KLF-M137C-00 BRKT,COVER79 1 /
Í
19 KLF-M137D-00 BRKT 2,COVER 79 1 /
Í
20 KLF-M137E-00 BRKT 3,COVER 79 1 /
Í
21 KLF-M137F-00 PLATE,CON. COVER 1 /
Í
22 90990-12J006 SCREW BIND HEAD W/W 10
23 90990-41J134 COLLAR 8
24 KLF-M9133-01 PLATE,DUCT 2 /
Í
25 KLF-M130J-00 FILTER,TOP COVER FAN 2 E
26 KLF-M130P-00 MAGNET 4 /
Í
27 98502-04050 SCREW PAN HEAD (+) 16
28 98702-03006 SCREW FLAT HEAD 4
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
1

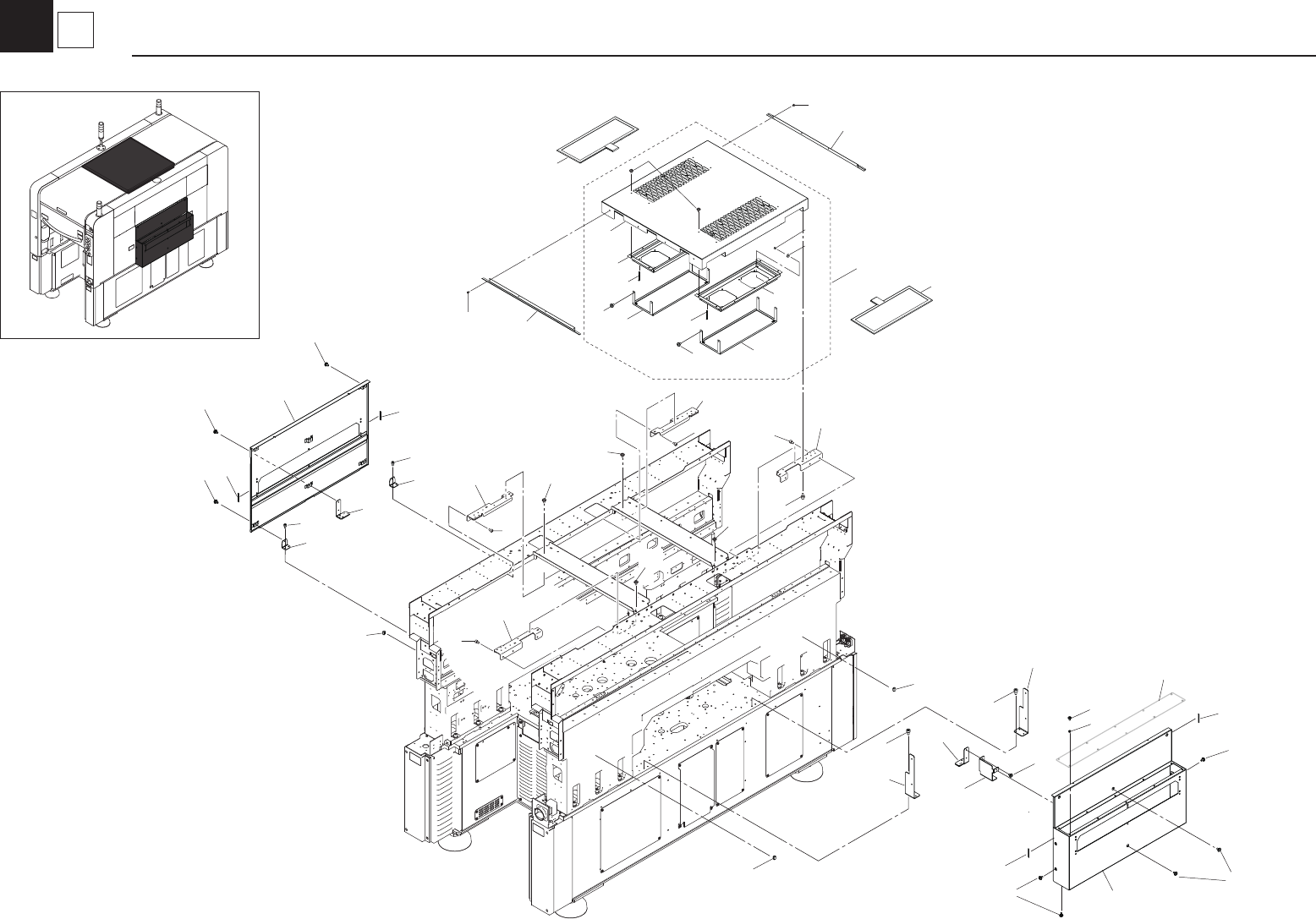

Top Cover
Cover
