YSM40R_KMB-100_mpl - 第13页

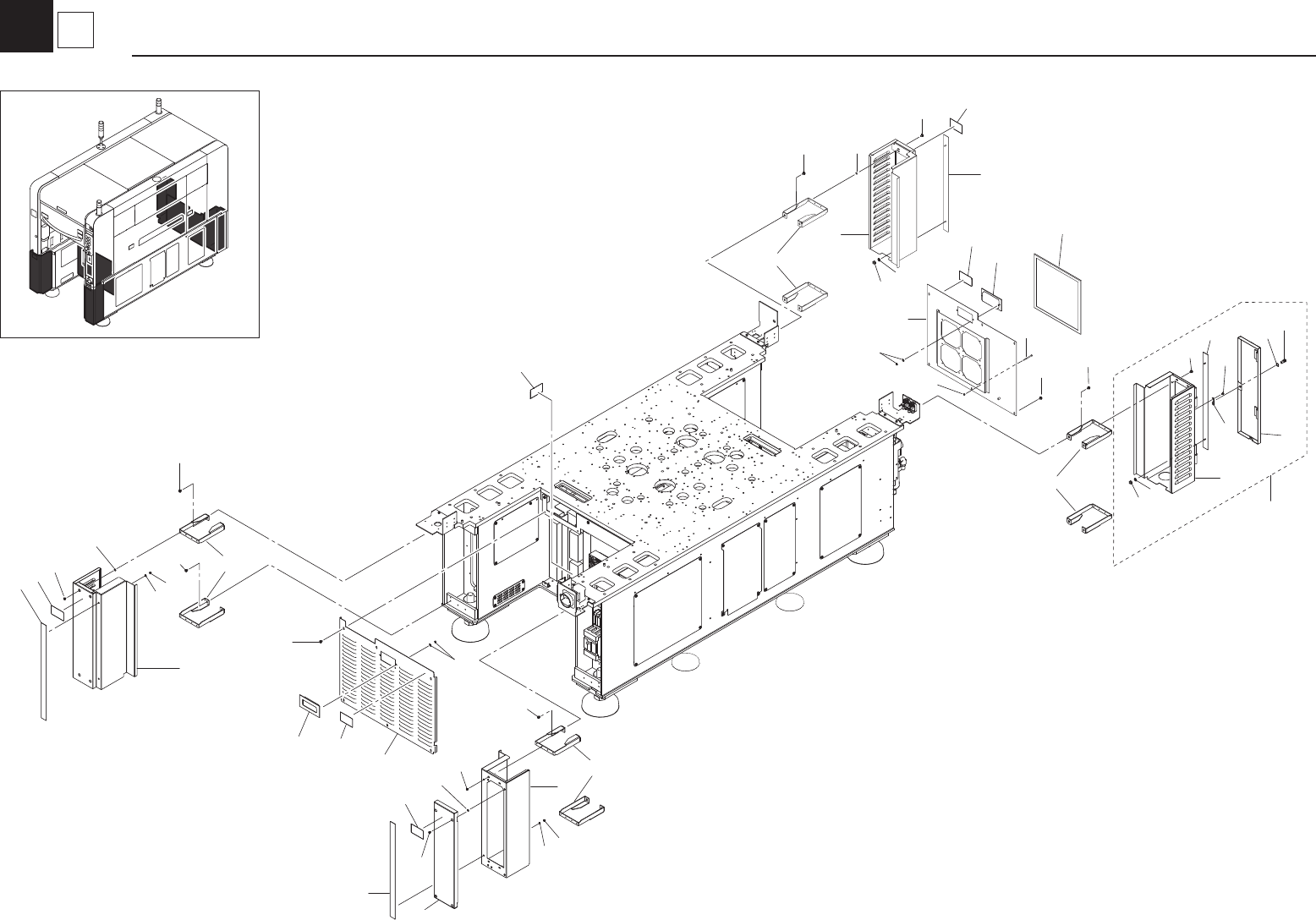

KMB-100-1607 15 21 20 16 13 12 16 18 18 18 1 9 10 20 21 20 14 21 15 15 16 17 17 17 13 16 18 18 2 7 19 3 21 20 4 5 6 8 18 1 1 22 17 16 18 23 22 22 22 23 16 17 23 13 13 24 26 25 2 3 Base Cover
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M1309-01 COVER 9-1 1 /
2 KMB-M130A-00 COVER 9-2 1 /
3 KMB-M130K-00 BRKT. 1,COVER 9 1 /
Í
4 KMB-M130L-00 BRKT. 2,COVER 9 1 /
Í
5 KLF-M1347-00 COVER 9-4 1 /
6 KMB-M130R-00 WINDOW,COVER 9 1 /
Í
7 KLF-M1345-00 PLATE,LINK 2 /
Í
8 KLF-M1324-00 KNOB 1 /
9 KLF-M134A-00 BRKT. NUT L 1 /
Í
10 KLF-M134B-00 BRKT. NUT R 1 /
Í
11 KLF-M1328-00 BRACKET, GAS DAMPER 2 /
Í
12 KGS-M1348-00 GAS SPRING 2 A
13 K46-M1374-12 HINGE 2 3 /
Í
14 KLF-M1374-00 HINGE 2 /
Í
15 KLF-M1373-00 BRACKET 1, SCHMEASAL 1 /
Í
16 KL0-M1374-00 PLATE 1 SCHMESAL 1 /
Í
17 KGS-M1360-00 BOLT 4 /
Í
18 90990-28J166 WASHER PLAIN 8 /
Í
19 KHT-M1346-00 BUSH 4 /
Í
20 KKX-M13D7-00 SEAL 2(YAMAHA) 1 /
Í
21 90K41-001250 LABEL,WARNING 1 /
Í
22 90K41-001420 LABEL,WARNING 1 /
Í
23 KLF-M1392-00 LABEL,WARNING 1 /
Í
24 KMB-M130E-00 BOX,USB 1 /
Í
25 KLF-M130E-00 DOOR,USB 1 /
Í
26 KLF-M1348-00 PLATE,USB 1 /
Í
27 KW3-M1349-00 MINI LATCH 1 /
Í
28 KGJ-M1350-00 SPACER,MINI LATCH 1 /
Í
29 KGJ-M1351-01 PLATE,MINI LATCH 1 /
Í
30 KMB-M1309-A0 COVER 9 ASSY 2 /
Í
31 90990-12J001 SCREW BIN.HEAD W/W 2
32 90990-12J003 SCREW BIN.HEAD W/W 20
33 98902-03008 SCREW BINDING HEAD 2
34 98902-04006 SCREW BINDING HEAD 2
35 90990-28J003 WASHER,PLAIN 2
36 90990-31J006 BOLT,SHOULDER 8
37 90990-46J001 BOLT,THIN HEAD 4
38 91312-04005 BOLT HEX.SOCKET HEAD 17 M4X5
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
40 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
41 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
42 92902-04200 WASHER PLAIN 2
43 92902-05200 WASHER PLAIN 8
44 92902-06200 WASHER PLAIN 6
45 95307-06600 NUT HEXAGON 2
46 95702-04500 NUT FLANGE 13
47 90172-00J040 WASHER,EXTL.TOOTHED 38
48 KMB-M130S-00 PLATE,WINDOW 1 2 /
Í
49 KMB-M130T-00 PLATE,WINDOW 2 1 /
Í
50 97602-04306 SCREW,PAN HEAD W/W 8
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
2
Door
Cover
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M1310-02 COVER 10 1 /
Í
2 KLF-M1311-A1 COVER 11 ASSY. 1 /
Í
3 KLF-M1311-02 COVER 11 1 /
Í
4 KLF-M132D-01 COVER 11-1 1 /
5 KLF-M137A-01 COVER,PANEL A 1 /
6 KGJ-M1350-00 SPACER,MINI LATCH 1 /
7 KGJ-M1351-01 PLATE,MINI LATCH 1 /
8 KW3-M1349-00 MINI LATCH 1 /
9 KLF-M1312-00 COVER,12 1 /
Í
10 KLF-M1313-02 COVER 13 1 /
Í
11 KLF-M1314-02 COVER 14 1 /
Í
12 KLF-M1315-04 COVER,15 1 /
Í
13 KHU-M1117-00 PULL 2 /
Í
14 KLF-M132A-01 COVER 10-1 1 /
15 KLF-M137A-01 COVER,PANEL A 3 /
Í
16 90K41-001270 LABEL,WARNING 6 /
17 90990-12J001 SCREW BIN.HEAD W/W 16 /
Í
18 90990-12J004 SCREW BIN.HEAD W/W 28 /
Í
19 90990-12J006 SCREW BIND HEAD W/W 2 /
Í
20 90172-00J040 WASHER,EXTL.TOOTHED 8 /
Í
21 95702-04500 NUT FLANGE 8 /
Í
22 KLF-M13E1-00 BRKT.,COVER 8 /
Í
23 KH1-M1396-00 WASHER 12 /
Í
24 KLF-M131J-00 FILTER,REAR BASE FAN 1 E
25 98502-04050 SCREW PAN HEAD (+) 16
26 95302-04600 NUT, HEXAGON 16
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
3
Base
Cover
