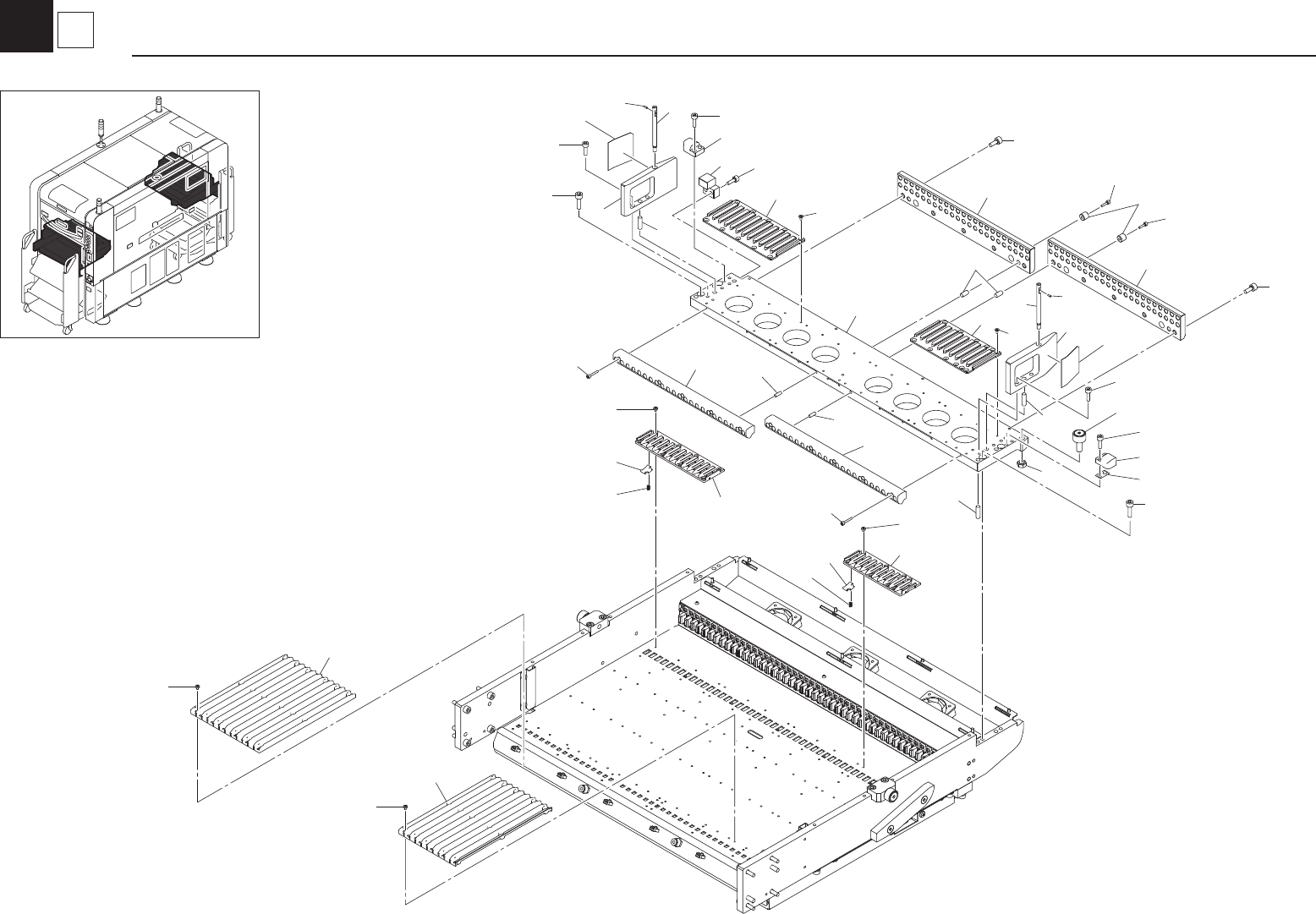

YSM40R_KMB-100_mpl - 第14页
KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M1310…
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M1310-02 COVER 10 1 /
Í
2 KLF-M1311-A1 COVER 11 ASSY. 1 /
Í
3 KLF-M1311-02 COVER 11 1 /
Í
4 KLF-M132D-01 COVER 11-1 1 /
5 KLF-M137A-01 COVER,PANEL A 1 /
6 KGJ-M1350-00 SPACER,MINI LATCH 1 /
7 KGJ-M1351-01 PLATE,MINI LATCH 1 /
8 KW3-M1349-00 MINI LATCH 1 /
9 KLF-M1312-00 COVER,12 1 /
Í
10 KLF-M1313-02 COVER 13 1 /
Í
11 KLF-M1314-02 COVER 14 1 /
Í
12 KLF-M1315-04 COVER,15 1 /
Í
13 KHU-M1117-00 PULL 2 /
Í
14 KLF-M132A-01 COVER 10-1 1 /
15 KLF-M137A-01 COVER,PANEL A 3 /
Í
16 90K41-001270 LABEL,WARNING 6 /
17 90990-12J001 SCREW BIN.HEAD W/W 16 /
Í
18 90990-12J004 SCREW BIN.HEAD W/W 28 /
Í
19 90990-12J006 SCREW BIND HEAD W/W 2 /
Í
20 90172-00J040 WASHER,EXTL.TOOTHED 8 /
Í
21 95702-04500 NUT FLANGE 8 /
Í
22 KLF-M13E1-00 BRKT.,COVER 8 /
Í
23 KH1-M1396-00 WASHER 12 /
Í
24 KLF-M131J-00 FILTER,REAR BASE FAN 1 E
25 98502-04050 SCREW PAN HEAD (+) 16
26 95302-04600 NUT, HEXAGON 16
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
3
Base
Cover
