KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M3748…
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M3748-00 WASHER 4 /
Í
2 KLF-M374A-00 BASE,CLAMP 2 /
Í
3 KLF-M374B-00 LEVER,CLAMP 2 /
Í
4 KLF-M374C-00 SPRING,CLAMP 2 /
Í
5 KLF-M374F-00 STOPPER,ARM 2 /
Í
6 KLF-M374K-00 PLUNGER 2 /
Í
7 KLF-M374L-00 BRKT.,SENSOR 2 /
Í
8 KMB-M374U-00 COVER,R SENSOR 1 /
Í
9 KMB-M374V-00 COVER,L SENSOR 1 /
Í
10 KMB-M374Y-00 BASE,ARM R 1 /
Í
11 KMB-M374Y-50 BASE,ARM L 1 /
Í
12 KLF-M652W-00 SENSOR COVER DIASSY 2 B
Í
13 KHJ-MC10S-01 PIN,LOCATE 1 2 /
Í
14 KHJ-MC289-00 PIN,CLAMP 2 /
Í
15 90440-01J030 CIRCLIP 2
16 90990-10J008 SCREW, BINDING HEAD 6
17 90990-28J038 WASHER, PLAIN 2
18 91312-03004 BOLT,HEX.SOCKET HEAD 4
19 91312-04005 BOLT,HEX.SOCKET HEAD 8
20 91312-05010 BOLT,HEX.SOCKET HEAD 8
21 91609-25008 PIN, SPRING 2
22 92902-03600 WASHER, PLAIN 4
23 92A08-03303 SCREW, SET 2
24 95302-06600 NUT, HEXAGON 2
25 97602-03310 SCREW,PAN HEAD W/W 2
26 99480-04014 PIN, PARALLEL 2
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
3
3

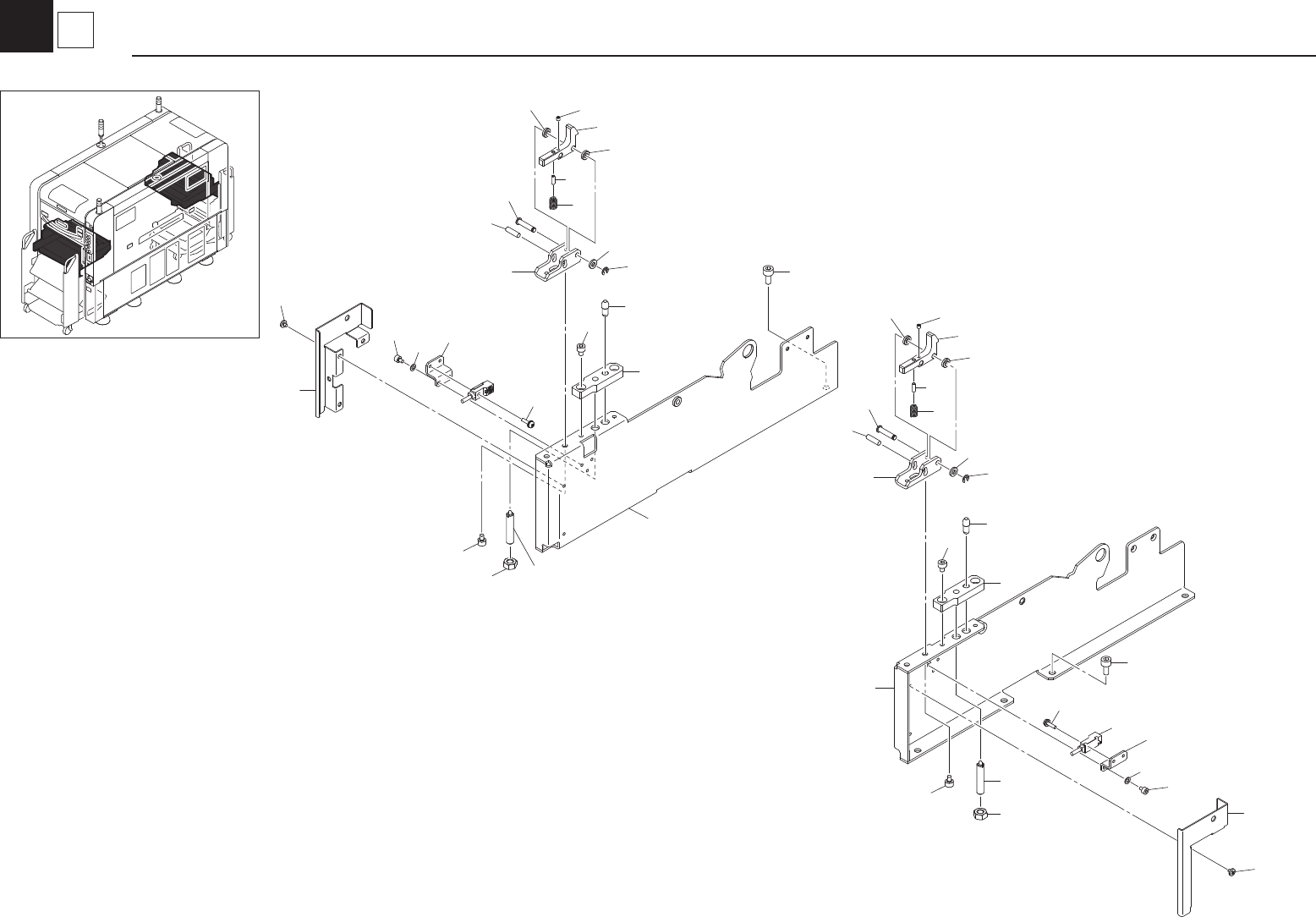

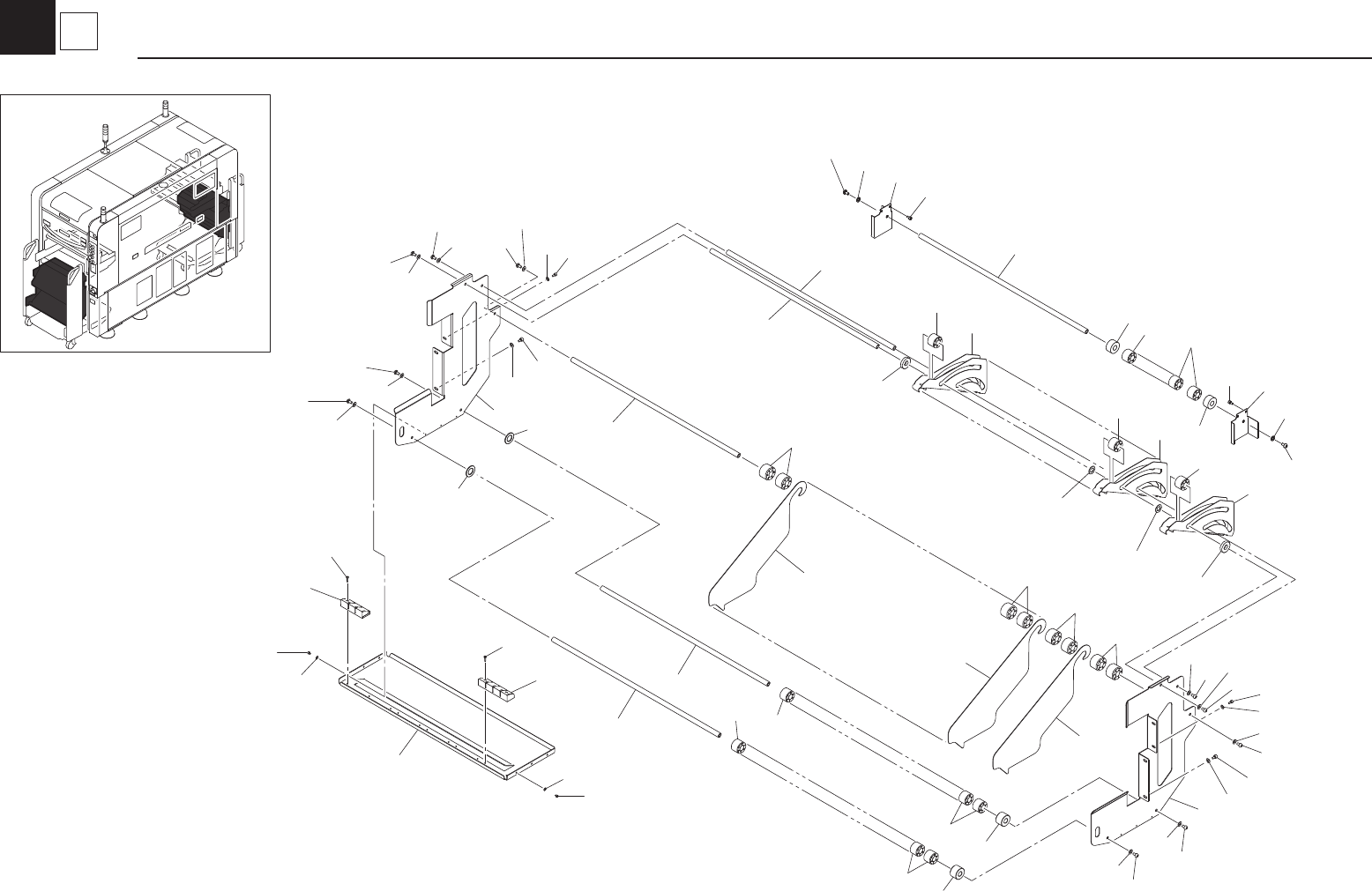

Cover FES46 Base / Sensor
Feeder Holder
