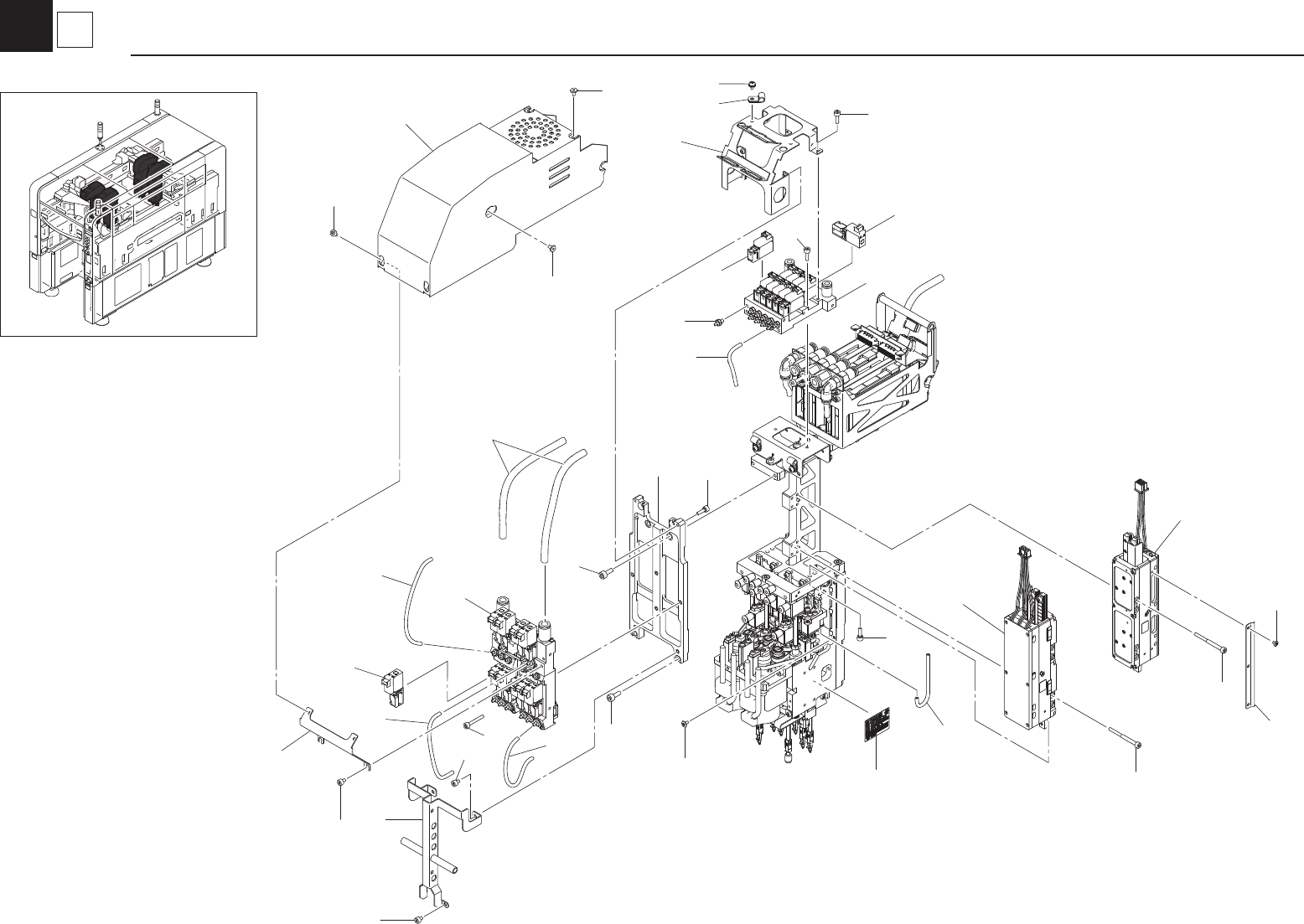

KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 90933-01J…
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90933-01J000 BEARING 2
2 90KA1-303303 AC SERVO MOTOR 1 B
Í
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-04005 BOLT HEX,SOCKET HEAD 2
5 91312-04008 BOLT HEX,SOCKET HEAD 14
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04030 BOLT HEX,SOCKET HEAD 4
8 91312-05014 BOLT HEX,SOCKET HEAD 4
9 91312-05016 BOLT HEX,SOCKET HEAD 4
10 91312-06022 BOLT HEX,SOCKET HEAD 8
11 KG2-M9173-00 LOCK NUT 1 /
Í
12 KLF-M4187-10 FAN GUARD 1 /
Í
13 KGS-M2628-00 LOCK NUT 1 /
Í
14 KHN-M2248-00 SPACER 2 /
Í
15 KHN-M2221-00 SUPPORT UNIT 1 /
Í
16 KLF-M653A-10 SENSOR 1 X ORG B
Í
17 KLF-M653B-10 SENSOR 1 X OT1 B
Í
18 KHN-M224D-00 SPACER 1 /
Í
19 KHN-M22AD-00 GREASE NIPPLE 2 /
Í
20 KHY-M2240-00 SLEEVE,BRG. 1 /
Í
21 KHY-M266C-00 BLOCK,JOINT 2 /
Í
22 $BF4U JOINT 1 /
Í
23 KLF-M653C-10 SENSOR 1 X OT2 B
Í
24 KLF-M653J-10 SENSOR 1 Y SAFE B
Í
25 KLF-M2212-10 BALL SCREW,XL 1 /
Í
26 KLF-M2214-00 HOLDER,BRG 1 /
Í
27 KLF-M221N-00 COVER,B CABLE 1 Type B /
Í
28 KLF-M222B-00 HOLDER,MOTOR XB 1 Type B /
Í
29 KLF-M222D-00 PLATE,NUT X MOTOR 2 /
Í
30 KLF-M222E-00 BRKT.,A FAN XM 1 Type A /
Í
31 KLF-M222E-50 BRKT.,B FAN XM 1 Type B /
Í
32 KLF-M222F-00 COUPLING,X-AXIS 1 /
Í
33 KLF-M2239-00 BRKT.,XA 2ND-LIMIT 1 Type A /
Í
34 KLF-M2239-50 BRKT.,XB 2ND-LIMIT 1 Type B /
Í
35 KLF-M224L-00 BRKT.,CONN. 2 /
Í
36 KLF-M227G-00 COVER,1 B.S. 1 /
37 KLF-M227H-00 COVER,2-F B.S. 1 Type A /
Í
38 KLF-M227H-50 COVER,2-R B.S. 1 Type B /
Í
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KLF-M266A-00 PLATE,PIPE 2
40 KLF-M6185-A0 FAN MOTOR ASSY 1
41 91312-06025 BOLT HEX,SOCKET HEAD 3
42 97602-03108
SCREW PAN HEAD W/WASHER
8
43 98902-04008 SCREW BINDING HEAD 6
44 KLF-M222A-00 HOLDER,MOTOR XA 1 Type A /
Í
45 KLF-M221M-00 COVER,A CABLE 1 Type A /
Í
46 KLF-M221S-10 DAMPER,1 1 /
Í
47 KLF-M221U-10 DAMPER,2 1 /
Í
48 90990-41J181 COLLAR 4
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
4
1

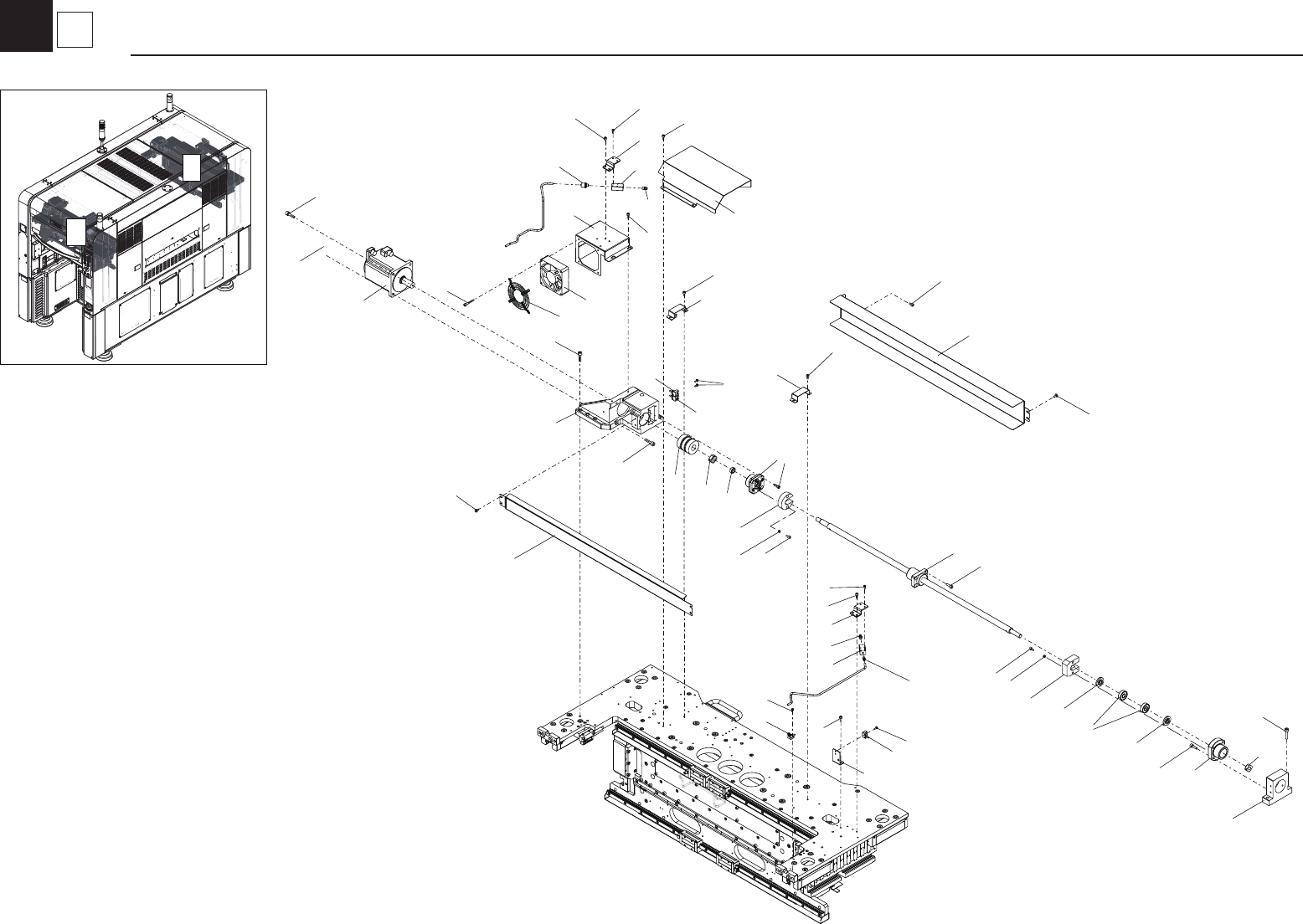

X-axis Motor / Sensor / Cover
Moving-axis
