KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M7413…

100%1 / 77
KMB-100-1607
28
23
27
26
1
7
37
36
36
36
34
34
33
31
35
32
32 31
35
30
33
38
38
36
36
8
3
21
24
10
11
2
9
14
17
12
18
16
16
15
13
6
19
25
20
22
5
29
4
7
7
39
5
4

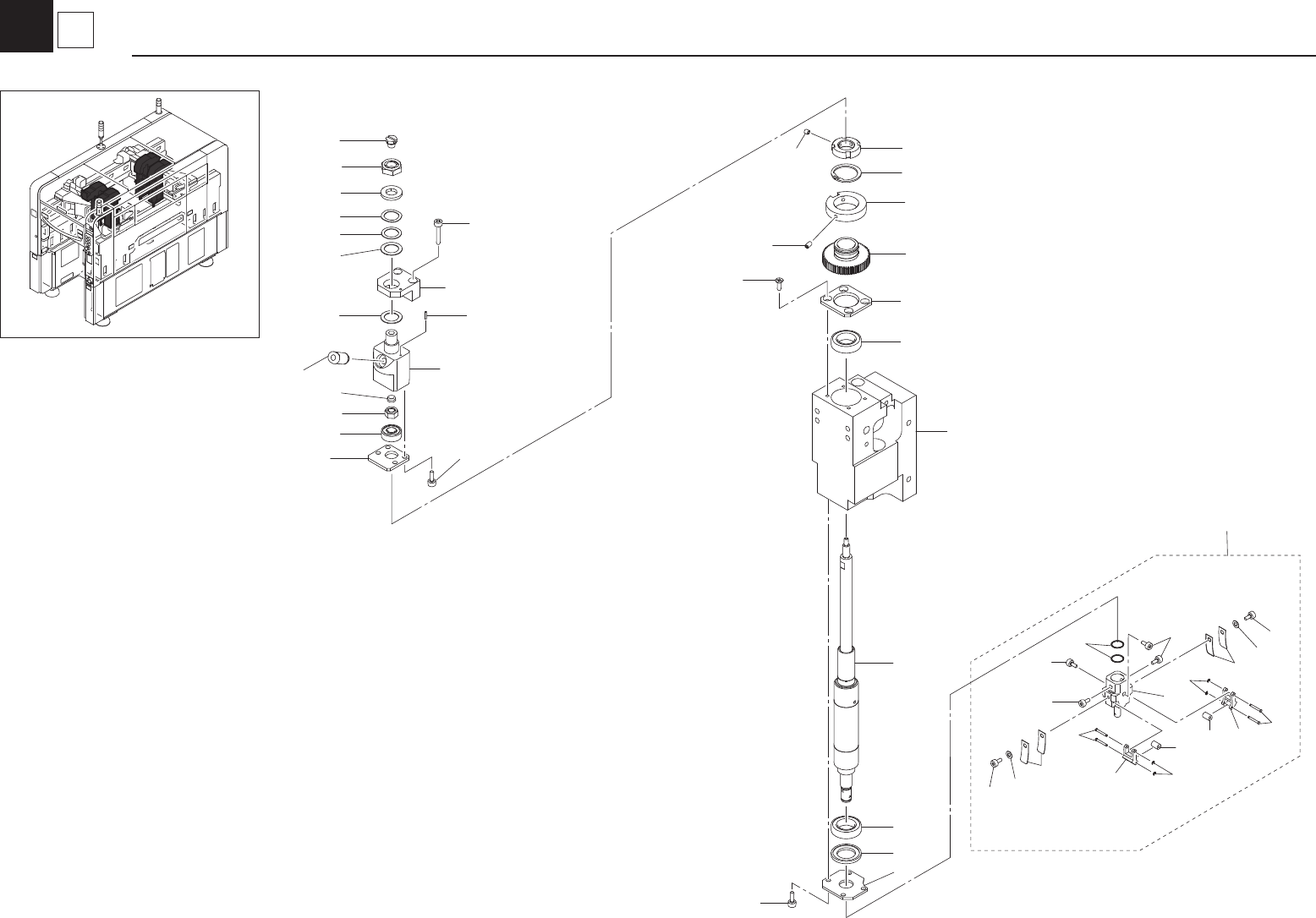

Head Shaft Assy (FL)
Head
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M7413-00 BLOCK,SHAFT 1 /
Í
2 KLF-M7419-00 PLATE,BEARING TOP 1 /
Í
3 KLF-M741S-00 PLATE,STOPPER 1 /
Í
4 KLF-M742M-01 ARM 1 /
Í
5 KLF-M742S-00 BLOCK,SPLINE 1 /
Í
6 KLF-M742V-00 PLATE,BRG 1 /
Í
7 KLF-M7441-01 SPLINE SHAFT 1 /
Í
8 KLF-M744A-00 COLLAR,BEARING 1 /
Í
9 KLF-M7460-00 NUT,SPLINE 1 /
Í
10 KLF-M7480-00 COLLAR,DOG 1 /
Í
11 KLF-M7483-00 GEAR,HEAD R 1 /
Í
12 KGS-M715A-02 WAVE WASHER 1 /
Í
13 90933-02J605 BEARING 1
14 90990-16J002 NUT,U 1
15 90990-22J009 PACKING 1
16 90990-28J045 WASHER,PLAIN 2
17 90990-28J046 WASHER,PLAIN 1
18 90990-29J033 SHIM 1
19 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
20 91312-03016 BOLT,HEX.SOCKET HEAD 2 M3X16
21 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
22 91609-12006 PIN SPRING 1
23 92A08-03003 SET SCREW M3X3 2
24 92A08-03005 SET SCREW M3X5 2
25 95602-05100 NUT U 1
26 98702-03008 SCREW FLAT HEAD 4
27 99009-17800 CIRCLIP (IS) 1
28 $PF PLUG 1 /
Í
29 $TSH4-M5M JOINT 1 /
Í
30 KLF-M74D3-01 BLOCK,NOZZLE HOLDER 1 /
Í
31 KV7-M81D1-00 ARM,NOZZLE 2 /
Í
32 KV7-M81D4-00 ROLLER 2 A
Í
33 KV7-M81D3-01 PIN 4 /
Í
34 KV7-M8171-00 PLATE,SPLING 4 E
35 90440-10J008 CIRCLIP 4
36 90115-02J004 BOLT,HEX.SOCKET HEAD 6
37 90990-17J079 O-RING 2
38 90990-28J002 WASHER PLAIN 2
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KLF-M74A0-01 ROLLER LOCK ASSY. 1
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
5
4
Head Shaft Assy (FL)
Head
KMB-100-1607
26

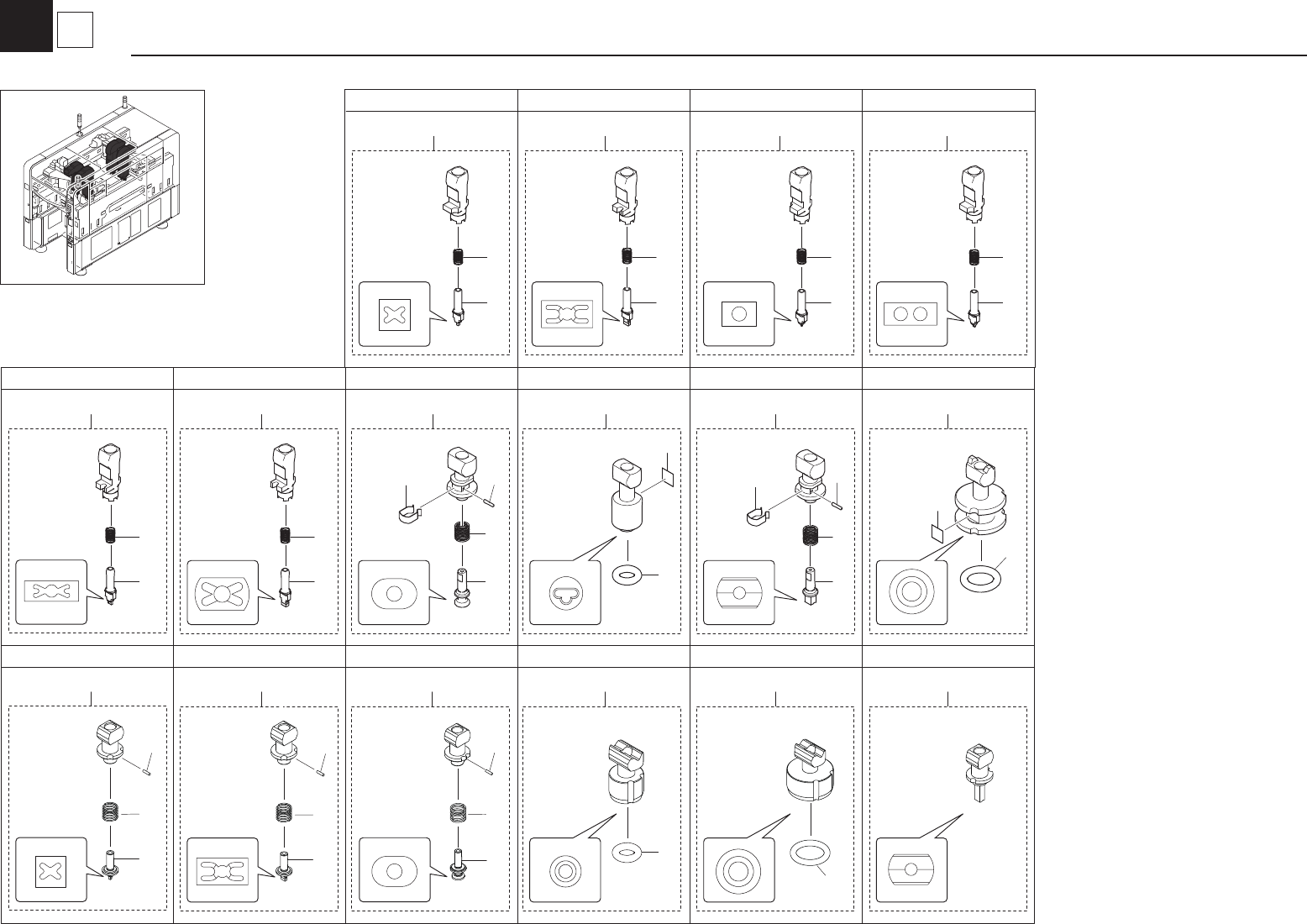

NOZZLE 601A ASSY.
27
28
30
NOZZLE 602A ASSY.
32
NOZZLE 603 ASSY.
33
NOZZLE 64A/604A ASSY.
21
34
NOZZLE 65A/605A ASSY. NOZZLE 66A/606A ASSY.
36
35
31
28
29
37
38
29
1
NOZZLE 501A ASSY.
2
3
10
NOZZLE 512A ASSY.
11
3
12
NOZZLE 513A ASSY.
13
3
17
18
14
NOZZLE 503A/514A ASSY.
15
16
4
NOZZLE 502A ASSY.
5
3
6
NOZZLE 510A ASSY.
7
3
8
NOZZLE 511A ASSY.
9
3
20
19
NOZZLE 504A/515A ASSY.
21
17
18
22
NOZZLE 506A/515A ASSY. NOZZLE 507A/518A ASSY.
23
16
24
20
25
29
6
1
Nozzle
Nozzle
