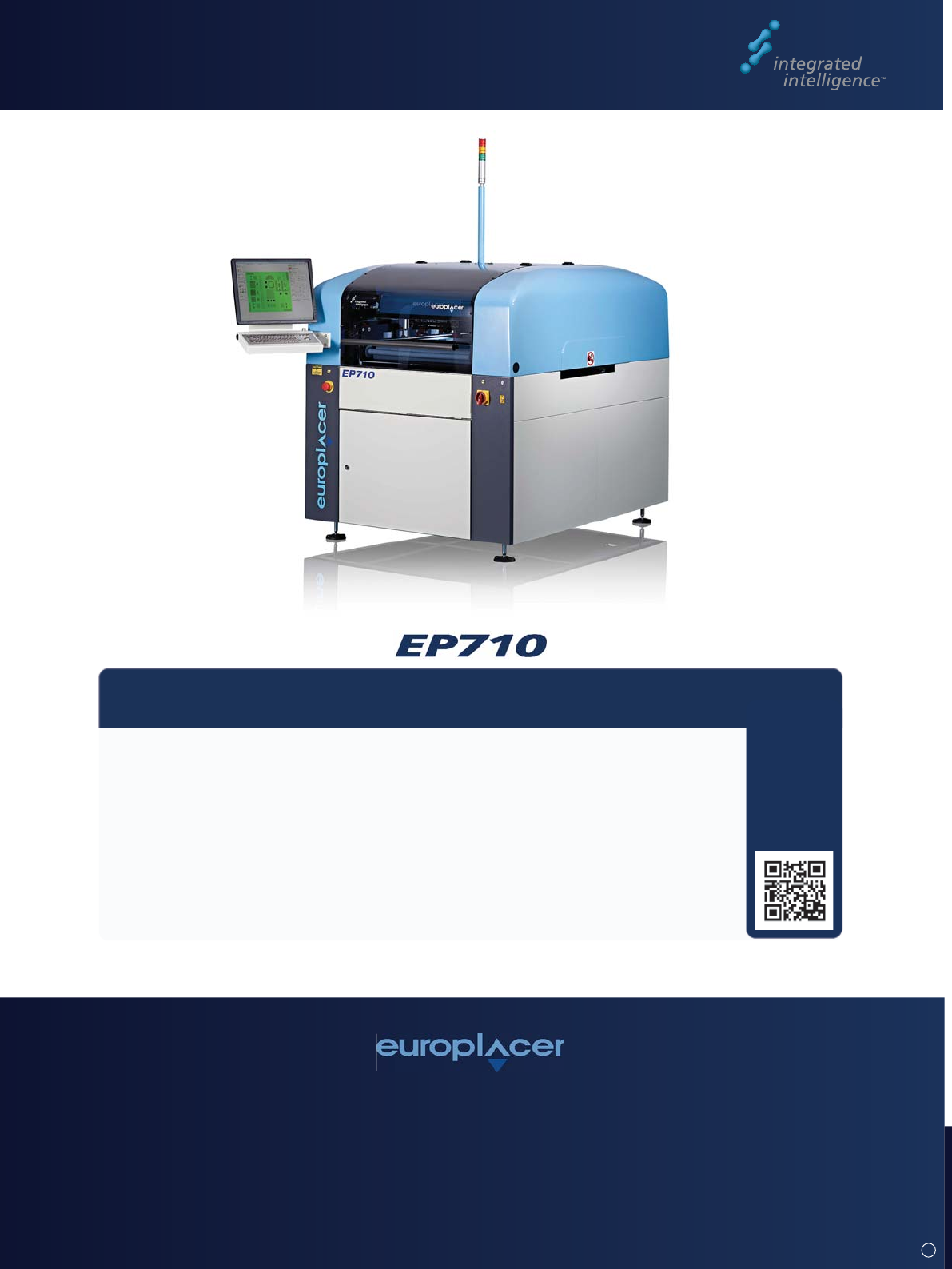

AUTOMATION

Flexible automation is at the very centre of the

platform. ep700 Series printers are comprehensively

equipped with almost every parameter fully

programmable.

That’s how they address the critical demands of fast

set up and product changeover to streamline your

assembly throughput. Automation features include

closed-loop print head control, fully programmable

board stops and pneumatic board clamping, as well as

direct SMEMA compatibility for easy automated SMT

production line integration.

The ep700 Series is the ideal platform for low and

medium volume assembly in any challenging high-mix

surface mount environment.

ACCURACY

Exceptional repeatability and print accuracy stem

from meticulous alignment. Our patented Dual Roving

camera (DRc) technology precisely aligns the board

and stencil, and checks for solder paste presence on

the stencil before printing. DRc innovations include

SmartCal, a zero-cost calibration utility designed to

maximise and maintain your process window and

deliver optimum performance for the life of the printer

platform.

ASSURANCE

Europlacer printer platforms are reﬁ ned, robust,

design-optimised products built to last. Be assured

that ep700 Series printers will perform identically in a

decade as they do when new.

Europlacer printer platforms are the result of years of

meticulous materials, manufacturing and process control

excellence. Complementing our pick and place equipment

range, the ep700 Series is engineered to deliver

streamlined performance at low ownership costs for high,

medium and low-volume production applications.

DUAL SYRINGE DISPENSING

DELIVERS PASTE AND GLUE

AS DOTS OR LINES

Europlacer’s ep710avi printer can optionally deploy

the unique Advanced Dispense Unit (ADU) or the ADU+

to dispense a wide range of media including paste,

glue and ﬂ ux via removable temperature-controlled

modules. Simple drag & drop programming imports

from Gerber ﬁ les, allowing full and easy customisation

of deposits as dots or lines onto any substrate.

Using latest-generation motor drive and control

technology, including 1 micron resolution linear

encoders on all axes, ep700 Series platforms deliver

exceptional throughput capabilities for even the

most demanding high volume applications. With the

addition of the Velocity or Velocity+ option, the printers

achieve best-in-class speeds of 8-second or 6-second

core cycle times.

Highly eﬃ cient vacuum-assisted under stencil

cleaning. Fully programmable. Wet or dry, with or

without vacuum

Auto stencil load and eject streamlines product

changeover

Closed loop dual squeegee control for print process

optimisation. Fully programmable print parameters

Defect prevention with programmable Optical Paste

Bead Management. Veriﬁ es solder paste presence on

the stencil. Alerts to insuﬃ cient volume. Safeguards

quality

SmartCal cost-free instant process calibration

Maximum positional accuracy with 1 micron resolution

linear encoders on all axes

COMPREHENSIVELY EQUIPPED

WITH ADVANCED FEATURES AS

STANDARD

ADU+ is the most accurate

and ﬂ exible dual head for

dispensing dots and lines.

“

•

SP210

Europlacer France

Route de Cholet

85620 Rocheservière

France

Tel: +33 (0)2 5131 0303

contact@europlacer.fr

Europlacer North America

519 US Highway 301 South

Tampa, FL 33619

USA

Tel: +1 813 246 9500

sales@europlacer-na.com

Europlacer Germany

Im Böning 24

63695 Glauburg

Germany

Tel: +49 (0)6041 969 2300

info@europlacer.de

Europlacer China

Floor 1, Building 1

No.80 Huashen Road,

Shanghai Waigaoqiao

Free Trade Zone,

P.R.China 200131

Tel: +86-21-5868 3500

contact@europlacer.cn

www.europlacer.com

As part of our policy of continuous development, speciﬁ cations are subject to change without prior notice.

Europlacer UK

30 Factory Road

Upton Industrial Estate

Poole , Dorset BH16 5SL

Tel: +44 (0)1202 266500

sales@europlacer.co.uk

Europlacer Italy

Strada Monte d’Oro 4

34147 Trieste

Italy

Tel: +39 (0)40 0640 180

infoit@europlacer.it

610mm (x) x 515mm (y)

45mm x 45mm

12.5μm @ 6 sigma 2Cpk

20μm @ 6 sigma 2Cpk

+/- 5mm

automatic

metal or polyurethane

1Kg to 20Kg

5mm/sec to 250mm/sec

pneumatic foils (standard)

Max board size

Min board size

Machine alignment repeatability

Full process repeatability

X/Y PCB alignment

Stencil load/unload

Squeegees material

Squeegee pressure

Print speed

Board clamping

0.2mm to 8mm

fully programmable

11.5 secs (standard)

SMEMA compatible

Microsoft Windows™ 7 or higher

13 Amps

110V to 240V AC, single phase

10°C to 35°C @ 30% to 50% RH

650Kg

Clamping thickness

Board stop

Cycle time

Up/down line protocol

Operating system

Power consumption

Power supply

Operating temperature

Weight

SPECIFICATIONS
