1 9 Push Up Conveyor Unit KGT -081 105 22 19 34 34 30 30 19 1 2 4 3 6 10 11 11 10 11 11 6 7 7 36 36 36 36 36 36 31 31 2 4 3 7 7 36 36 29 8 15 35 9 16 33 5 17 31 33 33 18 32 35 20, 21 (40, 41) 13, 38 12, 37 14, 39 43 43 3…
1
9

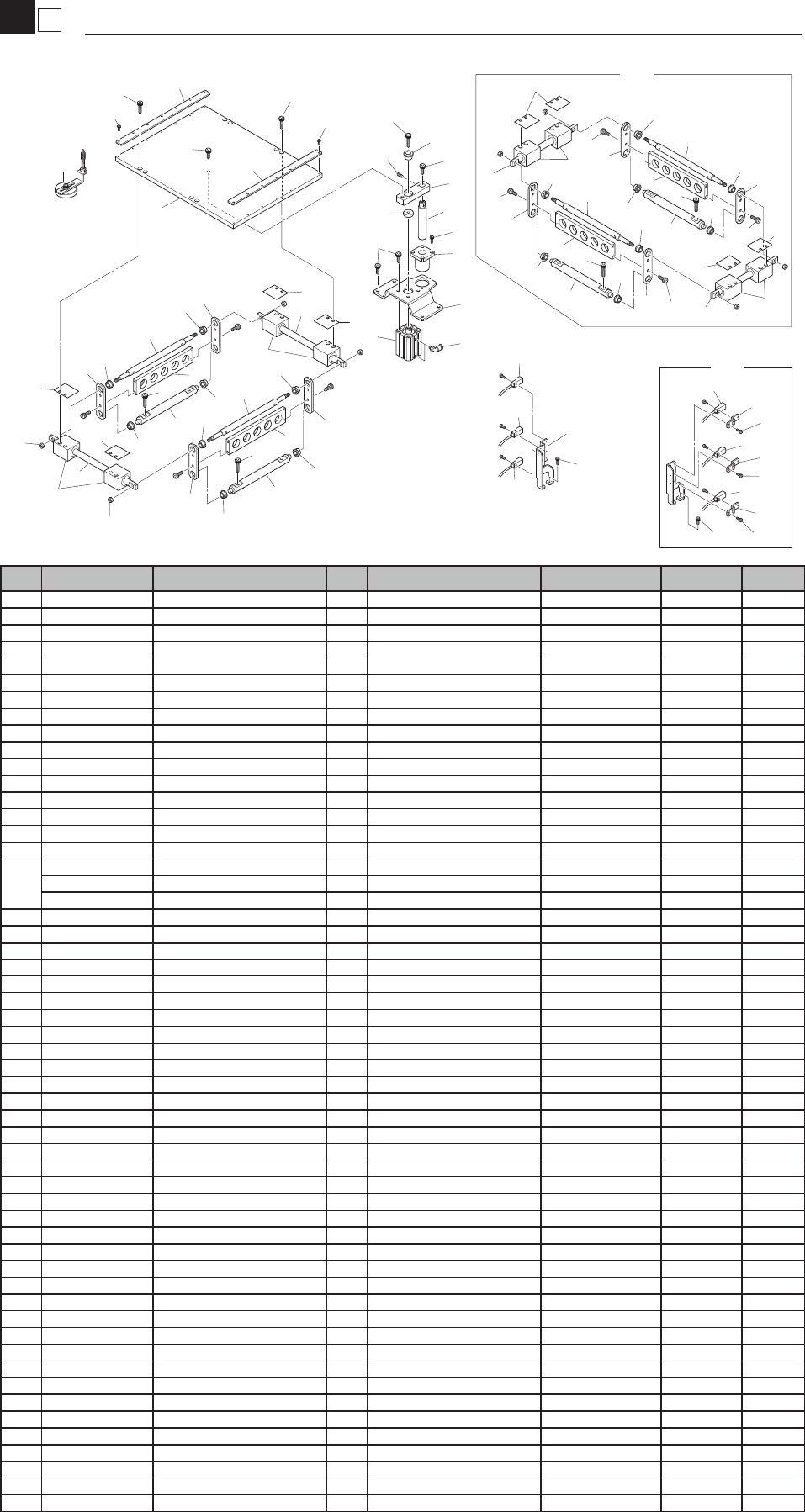

Push Up
Conveyor Unit
KGT-081105
22
19
34
34
30
30
19
1
2
4
3
6
10
11
11
10
11
11
6
7
7
36
36
36
36
36
36
31
31
2
4
3
7
7
36
36
29
8
15
35
9
16
33
5
17
31
33
33
18
32
35
20, 21
(40, 41)
13, 38
12, 37
14, 39
43
43
35
12,37
42
13,38
42
42
14,39
34
34
34
2
4
3
6
10
11
11
10
6
7
7
36
36
36
36
31
2
4
3
7
7
36
36
36
36
31
37
37
11
37
37
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M9201-00X PLATE,PUSHUP 1
1-1 KGT-M9201-01X PLATE,PUSHUP 1 (2003/11/18) M3X0051 NG
2 KGT-M9202-00X BAR, JOINT 2
3 KGT-M9203-00X SHAFT,PIVOT 2
3-1 KGT-M9203-01X SHAFT,PIVOT 2 (2003/11/18) M3X0051 OK
4 KGT-M9204-00X SHAFT,LINK 2
4-1 KGT-M9204-01X SHAFT,LINK 2 (2003/11/18) M3X0051 OK
5 KGT-M9205-00X SHAFT, CYL. 1
6 KGT-M9206-00X ROD 2
6-1 KGT-M9206-01X ROD 2 (2003/11/18) M3X0051 NG
7 KGT-M9207-00X LINK 4
7-1 KGT-M9207-01X LINK 4 (2003/11/18) M3X0051 OK
8 KGT-M9208-00X BRACKET,CYL. 1
8-1 KGT-M9208-01X BRACKET,CYL. 1 (2003/11/18) M3X0051 NG
9 KGT-M9209-00X CYLINDER 1
10 KGT-M920A-00X LINEAR BUSH 4
11
KGT-M920B-00X SHIM 0.02 1
KGT-M920B-10X SHIM 0.05 1
KGT-M920B-20X SHIM 0.1 1
12 KGT-M920P-01X SENSOR, PU UP 1 (R)
13 KGT-M920R-01X SENSOR, PU MID 1 (R)
14 KGT-M920S-01X SENSOR, PU DOWN 1 (R)
15 KGT-M920E-00X LINEAR BUSH 1
16 KGT-M920F-00X HOLDER 1
17 KGT-M920G-00X FLOATING JOINT 1
18 KGT-M920H-00X WASHER 1
18-1 90990-28J047 WASHER,PLAIN 1 (2007/12/20) MDX0104 OK
19 KGT-M920J-00X PLATE 2
19-1 KGT-M920J-01X PLATE 2 (2005/5/18) MB50070 OK
20 KGT-M920L-00X BASE,SENSOR R 1 (R)
20-1 KGT-M920L-01X BASE,SENSOR R 1 (R) (2003/8/25) M380055 OK
20-2 KGT-M920L-02X BASE,SENSOR R 1 (R) (2003/11/17) M3X0047 OK
21 KGT-M920M-00X BASE,SENSOR L 1 (L)
21-1 KGT-M920M-01X BASE,SENSOR L 1 (L) (2003/8/25) M380055 OK
21-2 KGT-M920M-02X BASE,SENSOR L 1 (L) (2003/11/17) M3X0047 OK
22 KGT-M920D-00X PUSH UP PIN UNIT 6
22-1 KGT-M920D-01X PUSH UP PIN UNIT 6 (2007/12/12) H011140 OK
29 $TL4-M5M JOINT 2
30 91317-05016 BOLT HEX. SOCKET HEAD 8
31 91317-06018 BOLT HEX. SOCKET HEAD 5
32 92A08-04306 SET SCREW M4X6 1
33 91317-06010 BOLT HEX. SOCKET HEAD 10
34 91317-03006 BOLT HEX. SOCKET HEAD 20
35 91317-04012 BOLT HEX. SOCKET HEAD 6
36 KGT-M920W-00X BEARING 8
36-1 90933-03J148 BEARING 8 (2007/9/24) MD80067
37 KGT-M920T-01X SENSOR, PU UP 1 (L)
38 KGT-M920U-01X SENSOR, PU MID 1 (L)
39 KGT-M920V-01X SENSOR, PU DOWN 1 (L)
40 KGT-M920L-50X BASE, SENSOR R 1 (L)
41 KGT-M920M-50X BASE, SENSOR L 1 (L)
42 KGT-M920C-00X BRACKET,SENSOR 3
42-1 Delete (2003/11/17) M3X0047
43 95307-06600 NUT HEXAGON 4
