3.8.5 SIPLACE PowerConnector X
Item no. 00141420-xx SIPLACE PowerConnector X
3
Fig. 3.8 - 6 SIPLACE PowerConnector X
(1) Handle
(2) Unlocking button for extender arm and feeder
(3) Extender arm (in work position)
Item W 024, item no. 03155346-01
3.8.5.1 Description
The SIPLACE PowerConnector X helps to resolve problems connected to SIPLACE X feeder
modules in the machine, without the need to stop the production process.
For a detailed description, see the SIPLACE PowerConnector X user guide, [item no. 00198772-
01-xx.]
W 024
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.8 SIPLACE tape feeder modules for SIPLACE TX
163
3.8.5.2 Safety instructions
3.8.5.3 Technical data
3
3
3
3
Warning about hand injuries
There is a risk of injury to hands when folding the extender arm up
into the park position.
When folding up the extender arm, make sure that you do not
trap your hand between the extender arm and the
S
IPLACE PowerConnector X.
Length 648.4 mm (folded in)
866.9 mm (folded out)
Width 34.4 mm
Height 188.4 mm
Occupied locations 3
Weight 3.2 kg
3 Technical data and assemblies Instruction manual SIPLACE TX
3.9 Component trolley From software version 714.0 12/2020
164
3.9 Component trolley
Two SIPLACE TX component trolleys can be docked onto SIPLACE TX placement machines.
3

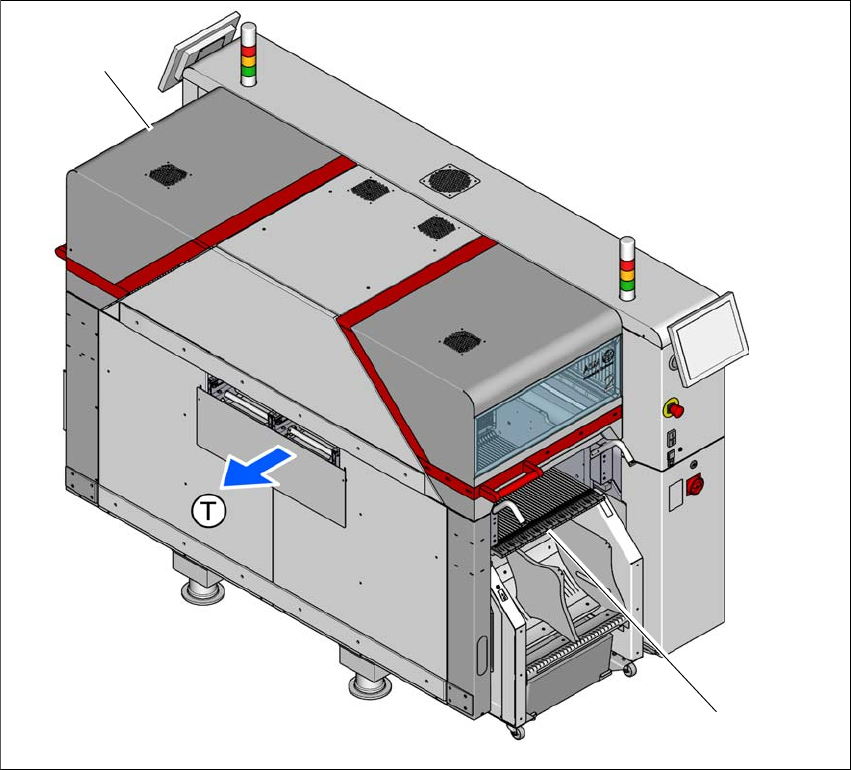

Fig. 3.9 - 1 Component trolley locations
(1) Location 1
(2) Location 2 with optional 7" tape reel holder
(T) Direction of PCB transport
The component trolleys are stand-alone modules that can be set up with feeders at an external
setup area. This means that the production process only has to be interrupted briefly in order to
change the component trolley. The component trolley has 5 holders in total. Each tape reel holder
can accommodate 2 tape reels, so that up to ten 13" (optional 7") tape reels can be positioned
above the tape container.
(2)
(1)
