6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
274
6.1.2 Nozzle changer for the SIPLACE MultiStar CPP / CPP M
6.1.2.1 Short nozzle changer for the CPP/CPP M with 4 magazines
The short nozzle changer with 4 magazines is used with the SIPLACE TX1/2 and TX2 m.
Item no. 03103649-xx Nozzle changer basic assembly CP/all - short
Item no. 03066107-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 20 garages
6
Fig. 6.1 - 4 Short nozzle changer for the SIPLACE MultiStar with 4 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
6
CAUTION
Only use this nozzle magazine together with the MultiStar.
(2)
(1)
Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
275
6.1.2.2 Narrow nozzle changer for the CPP with 3 magazines
The narrow nozzle changer with 3 magazines is used with the SIPLACE TX2i.
Item no. 03129201-xx Nozzle changer for TX2i
Item no. 03066107-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 20 garages
6

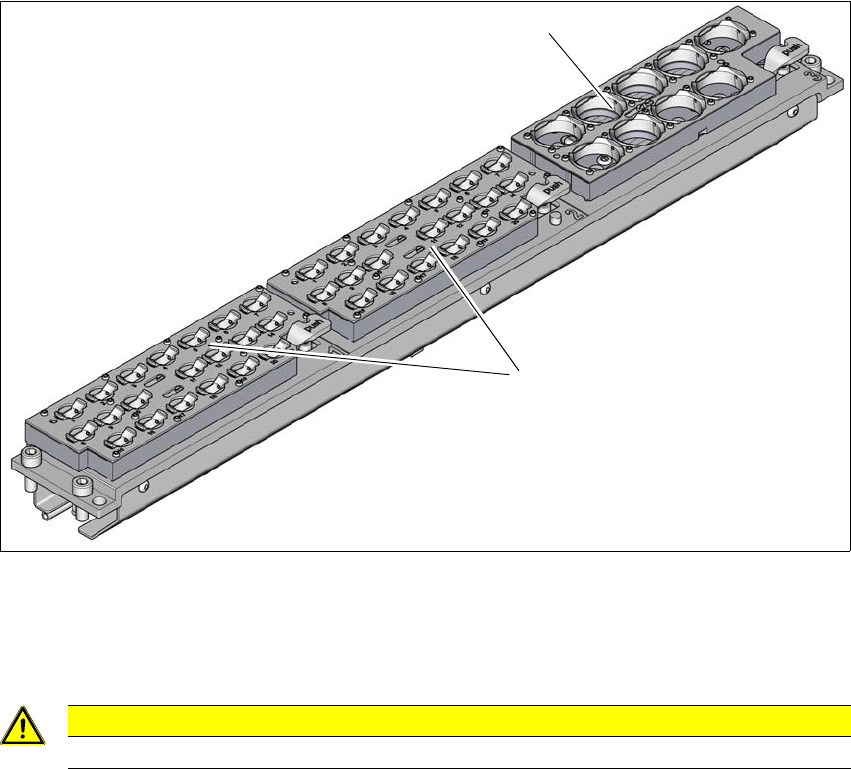

Fig. 6.1 - 5 Narrow nozzle changer for the SIPLACE MultiStar with 3 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
6
CAUTION
Only use this nozzle magazine together with the MultiStar.
(2)
(1)
6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
276
6.1.2.3 Nozzle magazine with 20 garages for 20xx nozzles
6

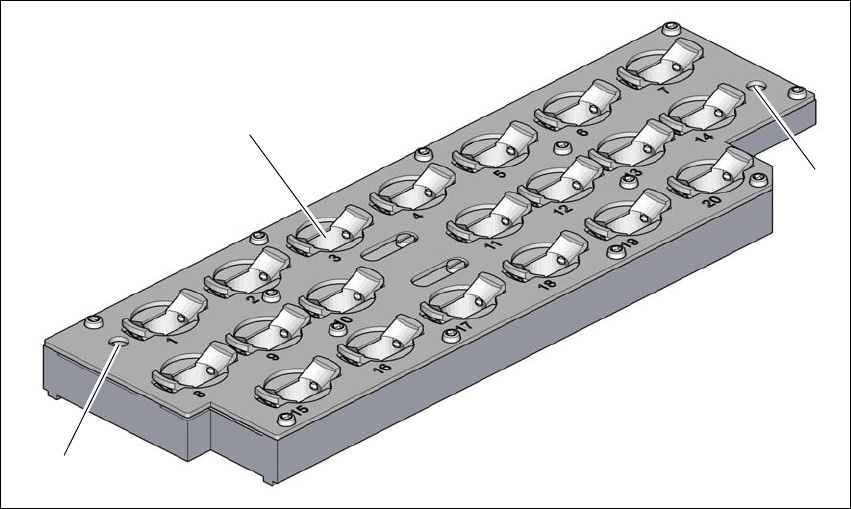

Fig. 6.1 - 6 Nozzle magazine for 20xx nozzles with 20 garages - locking plate open
(1) 20 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(2)
(1)
(2)
