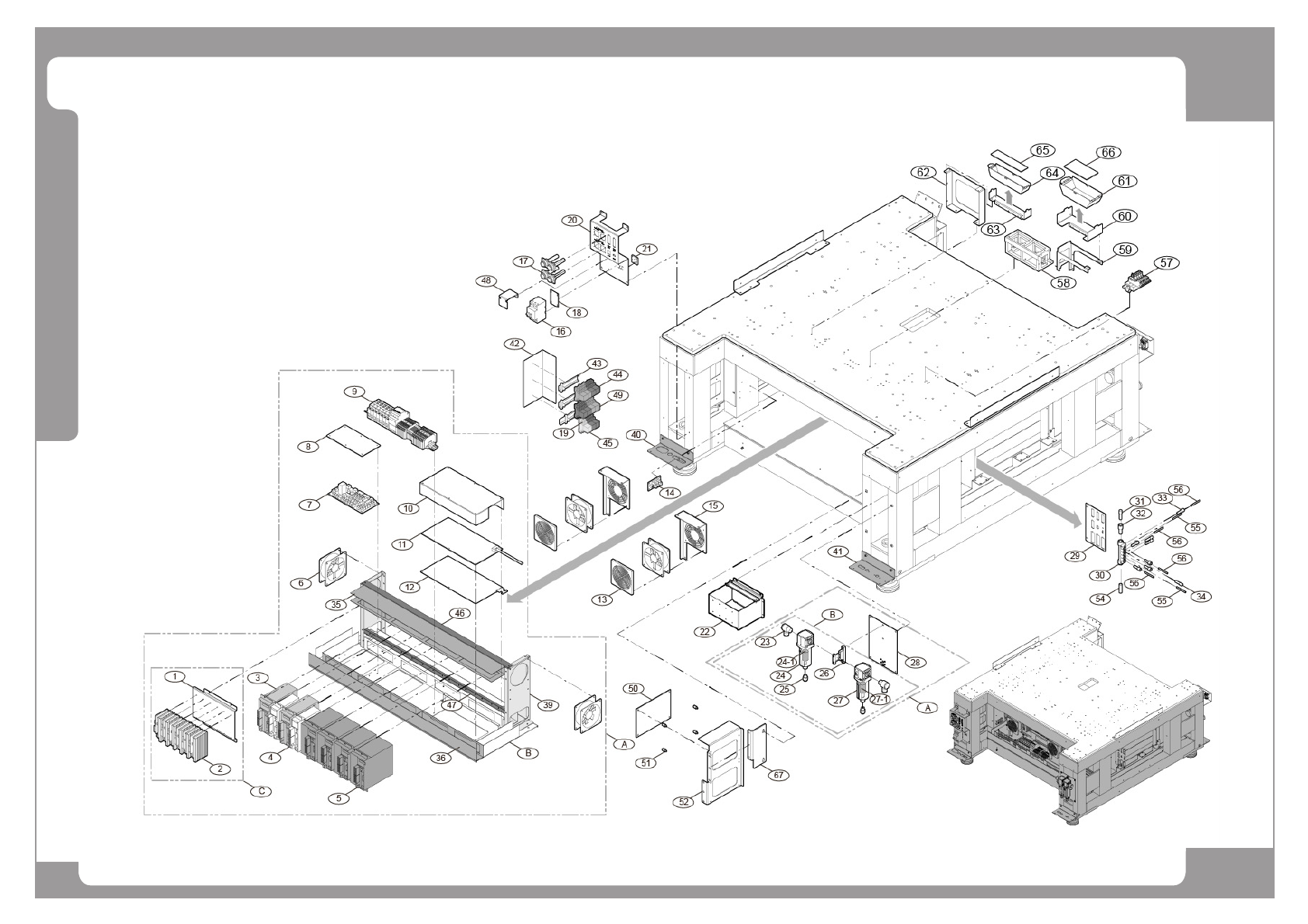

Base Frame (Front)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
34 FC28-000105 STRAIGHT NIPPLE 1
35 HP06-900046 FITTING KQ2R04-08 1
36 HP06-000234 FITTING KQ2R08-12 1
37 HP06-000250 FITTING KQ2VT12-03S 1
38 AM03-005338B AXIS_SENSOR_BOARD 1 AM03-005338A
39 EP20-900105 LOAD SWITCH[PI-25] 1
40 J3409019A KEY_SWITCH 1
41 FC09-003401A FRONT ELEC PANEL 1
42 FC09-003509A FRONT CABLE BKT 1
43 EP07-901339 MSOD-Q11CX(KP)0.4KW(2.1A)200V DC24V 1
44 EP07-901345 UN-SA33 1
45 RM01-000080 RAIL-DIN RAIL 35MM 1
46 EP21-900002 STOPPER 2
47 FC09-003446A RIGHT DC BKT 1
48 J71520028E GROUND BASE(2) 1
49 FC09-004599A OUTLET FAN BKT 2 FC09-003435A
50 FC09-003430A BKT NOISE FILTER 1
51 AM03-011573B ASSY,ELECTRIC-NOISE_FILTER_MODULE 1
52 EP23-001004A ACCESSORY,TRANSFORMER-3PH 5.7KVA
(DECAN)
1
53 FC09-003483A BKT SIDE COVER 2
55 EP07-901528 FAN FILTER 120MM 2
61 FC09-003480A BOTTOM FL 1
62 FC09-003475A BOTTOM FR 1
63 FC09-003436B DUCT HANGER 4 FC09-003436A
64 FC10-000074A CUSHION,RUBBER-AIRPUMP 2
69 HP13-900086 AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] 1
70 HP13-900081 AIR TUBE (POLYURETHANE) 1
71 FC05-000390A BASE PUMP KHF141 1
72 EP06-901011 POWER_SUPPLY_STW400-S 6
