DECAN_S2_TRM(Ver2.3_CS18.01) - 第124页

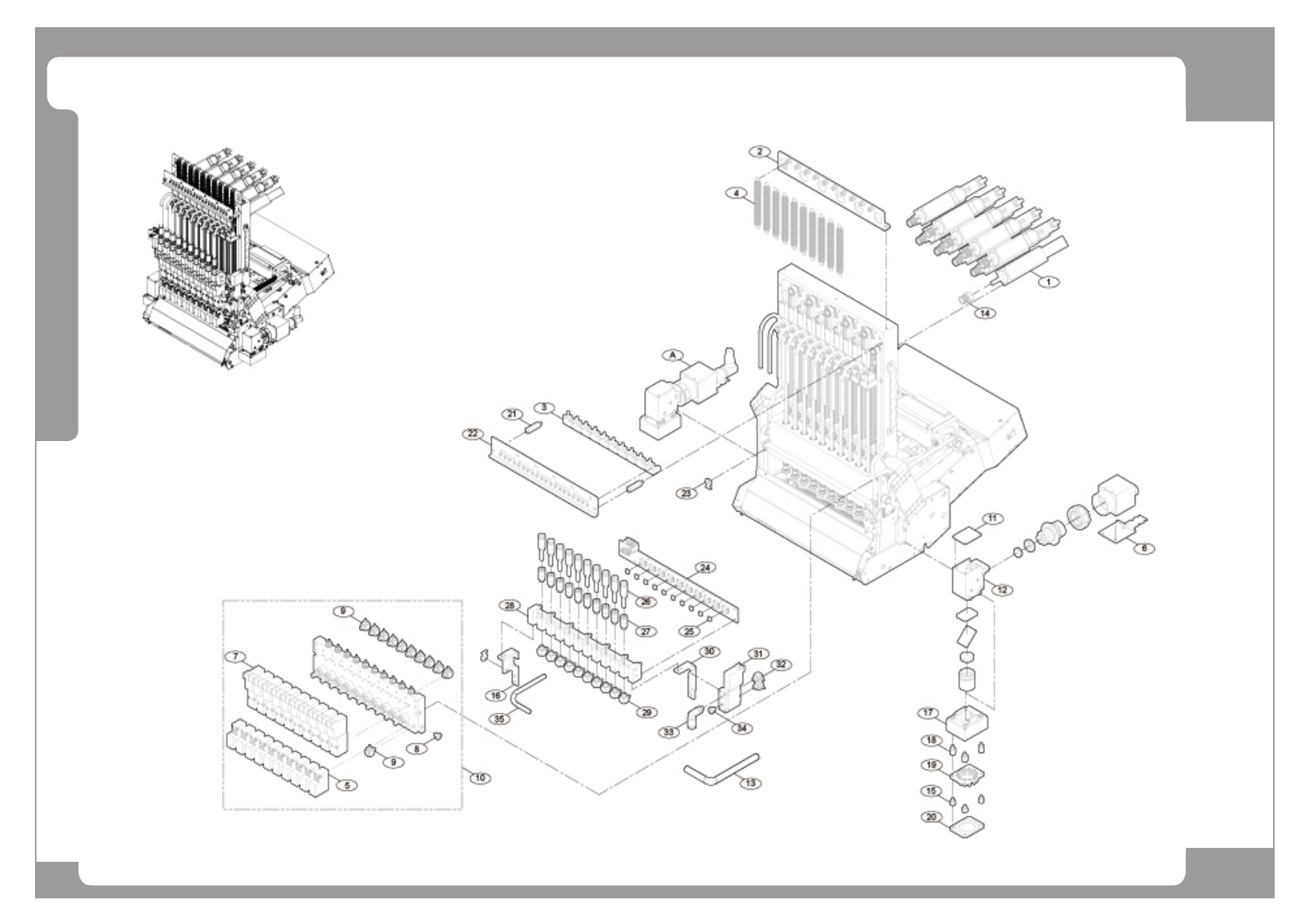

Page +$1:+$ 120 DECAN S2 Head (2/6)
Page
+$1:+$
119
DECAN
S2
Head (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-019754A ASSY,HEAD-DECAN S2 FID2 2
1 FC15-001388A HEAD TOP COVER 1
2 FC09-001568B BRACKET-FLAT_CABLE_BKT;A5052-H32 1
3 FC09-001847B BRACKET-FITTING_BKT 1
4 J1301070 STRAIGHT_CONNETOR_FITTING 6
5 FC09-003535B HEAD_BKT_PANEL 1 FC09-001573A/ FC09-003535A
6 AM03-005341B MOTOR_IF_BOARD 1 AM03-005341A
7 FC30-000991A PLATE-MOTOR_IF_BOARD_SHEET 1
8 FC29-900610 HEX SUPPORT 8
9 AM03-005337C ASSY,BOARD-SM471 HEAD IF BOARD VER1.0 1
10 FC30-000990A PLATE-IO_BOARD_SHEET 1
11 FC09-001574A HEAD_BOARD_BRACKET 1
12 FC29-900148 HANDLE 1
13 FC30-001814A PLATE-511_HARNESS_PLATE 1
14 FC18-902795 BUTTON_HEAD_CAP_SCREW 1
15 FC09-001690A HEAD_BKT_FIX 1
16 FC09-001576B BRACKET-IF_BOARD_BKT 2
17 FC09-004659A BRACKET-3-NIPPLE 1
18 J71541016B HARNESS_SUPPORT 2
19 FC28-900369 GREASE NIPPLE 5
20 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A
21 HP06-900079 ELBOW_UNION_FEMALE 5
Page
+$1:+$
120
DECAN
S2
Head (2/6)
Page
+$1:+$
121
DECAN
S2
Head (2/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM08-004291A ASSY-FID7_LENS_ASSY 2 STADARD
AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 2 BLUE FILTER
AM03-022390A ASSY,OPTICS-PROGRESSIVE FID. CAMERA 2 S2 PROGRESSIVE
1 AM03-011868A CABLE ASSY-Z1_MOTOR_AS 10
2 FC09-004707A Z_SPRING_BKT 1 FC09-001505A
3 AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1
4 FC38-000072A Z_SPRING 10
5 HP14-000206 VALVE-BLOW_VALVE 10
6 FC09-004660A BRACKET-CAM_CABLE_HOLDER 1
7 HP14-002040 VALVE,SOLENOID-VQZ115R-5LO1-C1-PR 10
8 FC14-900638 DUMY PLUG 1
9 HP06-900021 BOB FITTING [M-5ALU-4] 11
10 HP09-000129 HEAD_AIR_MODULE 1
11 J91661026A FIDUCIAL_COAXIAL_PCB_ASS'Y 2
12 J71591108A FID7_BLOCK 2
13 AM03-001543A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 1
14 J71551840A Z_MOTOR_PULLEY 10
15 FC29-900557 HEX SUPPORT 6
16 FC09-001523A MANIFOLD_PLATE_2 1
18 FC29-900610 HEX SUPPORT 6
19 AM03-020609A FIDUCIAL_OUTER_PCB_ASSY 2 STADARD
AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 2 BLUE FILTER
AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 2 S2 PROGRESSIVE
20 J72801017A FIDUCIAL_DIFFUSER 2
21 FC29-900614 HEX SUPPORT 2
22 AM03-014949B ASSY,BOARD-SM471 HOME SENSOR 1
FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1
23 FC18-903190 PROFILE MOUNT 2
HP13-900087 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] .5
HP13-90008 AIR TUBE (POLYURETHANE) 3
24 AM03-015255A ASSY,BOARD-DECAN_VACUUM_SENSOR 1
