DECAN_S2_TRM(Ver2.3_CS18.01) - 第130页
Page +$1:+$ 126 DECAN S2 Head (4/6)
Page
+$1:+$
125
DECAN
S2
Head (3/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-005101A ASSY,OPTICS-SM411_PLUS_FLY_OUTER_A_ASSY 1
2 AM03-019757A ASSY,HEAD-S2 FLY OUTER PCB SUB 1
3 FC09-002293A FLY_SIDE_BRACKET 2
4 FC18-902709 SOCKET HEAD CAP SCREW 6
6 FC18-902703 SOCKET HEAD CAP SCREW 18
7 FC30-004523A PLATE-DS2_REF_PLATE 1
8 FC09-002294B BRACKET-MIRROR_BRACKET 1
9 FC09-004165A BRACKET-MIRROR_CLAMP_2 1
10 FC09-001521A MIRROR_CUSHION 2
11 EP12-000030A FOLDING_MIRROR 1
12 FC09-001517A MIRROR_PLATE 1
13 FC15-001001A HD-MIRROR_COVER 1
A AM03-005088A ASSY,OPTICS-SM411_PLUS_FLY_OUTER_B_ASSY 1
A AM03-005836A ASSY,HEAD-MIRROR_ASSY 1
14 FC36-000036A MT511P-Y_OUTER_INSULATION_A 1
15 FC36-000037A MT511P-FLY_OUTER_INSULATION_B 1
16 AM03-005923A ASSY,HEAD-SM471_SIDE_PCB_ASSY 1
17 FC09-004164A BRACKET-MIRROR_CLAMP_1 1
18 AM03-019757A ASSY,HEAD-S2 FLY OUTER PCB SUB 1
Page
+$1:+$
126
DECAN
S2
Head (4/6)
Page
+$1:+$
127
DECAN
S2
Head (4/6)

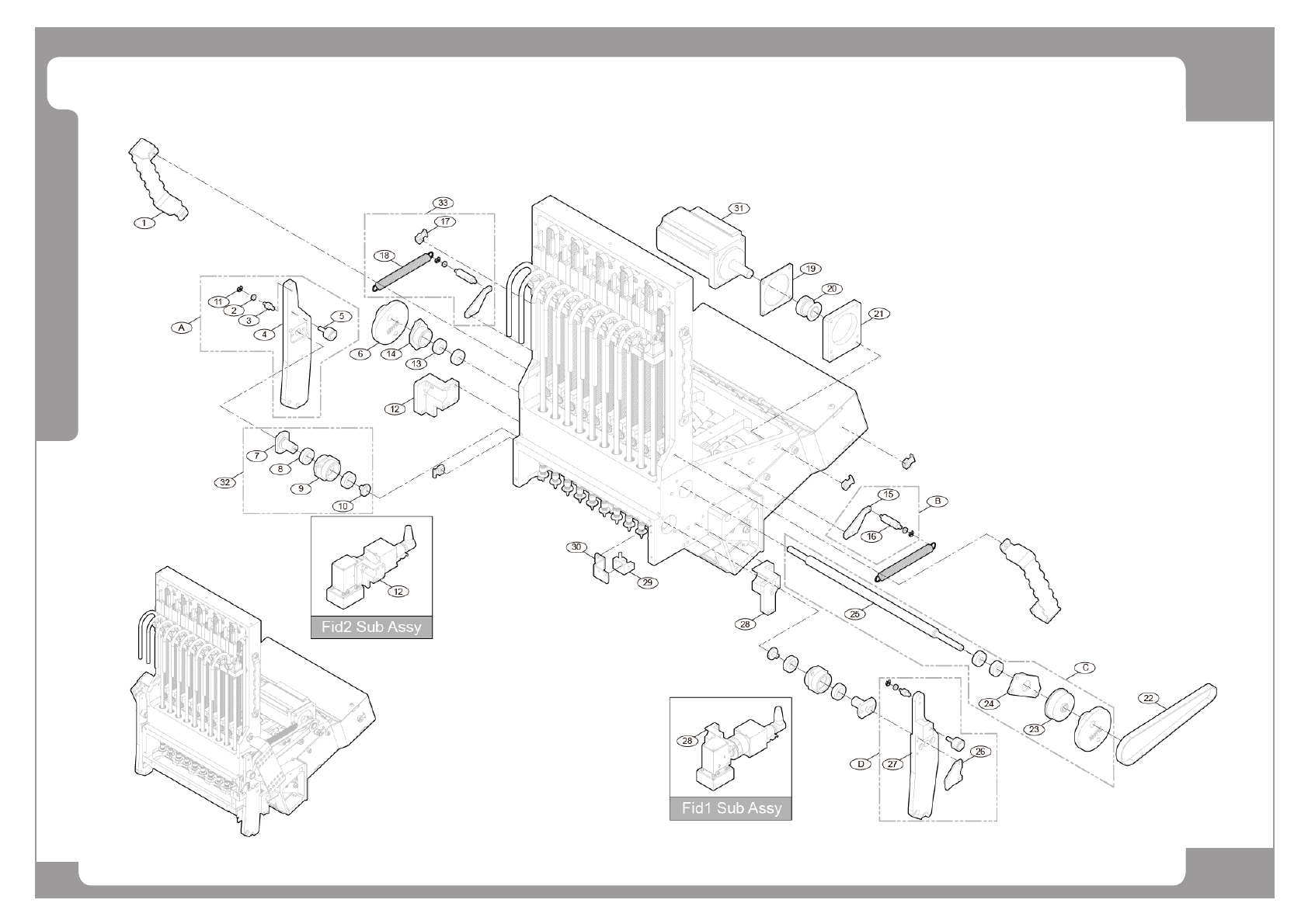

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-004663A BRACKET-TIE_MOUNT_1 2
A AM03-012549A ASSY,HEAD-MIRROR LINK L FS 1
2 J7455026A SPRING_BUSH 4
3 FC29-004275A SPRING_POST-MOVING 2 J70551042A
4 FC30-002025A MIRROR LINK L 1
5 MC11-900055 CAM FOLLOWER 2
6 MC11-000591A SM481_CAM 2
7 J7055204A ARM_JOINT 2
8 MC03-900034 BALL_BEARING 4
9 J7055205A WC 2
10 FC18-001484A MIRROR_SCREW 2 J7055153A
11 FC18-901347 E-RING[DIA1.5(SUS)] 4
12 AM03-006152A ASSY,HEAD-FID2_SUB_ASSY 1
13 MC03-900033 BALL BEARING 695ZZ 4
14 J7055163A BEARING_HOUSING 1
B AM03-007750A RIGHT_SPRING_POST_ASSY 1
15 FC09-002292B BRACKET-MIRROR_SPRING_BRACKET 1
16 FC09-001553B MIRROR_PIN_3 2 FC09-001553A
17 FC18-903190 PROFILE MOUNT 4
18 FC38-900011 SPRING 2
19 J7255081A MIRROR MOTOR ISOLATOR 1
20 J7155523A PULLEY(S-AXIS) 1
21 FC30-000805B PLATE-MIRROR_MOTOR_BKT;A6061-T6 1 FC30-000805A
22 MC05-900048 TIMING BELT 1
C AM03-007751A SM481_MIRROR_SHAFT_ASSY 1
23 J71551026A PULLEY-S_AXIS1 1
24 J7055557A BEARING_HOUSING 1
25 MC19-000345A MIRROR_SHAFT 1
D AM03-012548A MT511A-HD040A-MIRROR_LINK_R 1
26 FC30-001164B PLATE-481_S_SENSOR_DOG 1
27 FC30-002024A MIRROR LINK R 1
