Page +$1:+$ 131 DECAN S2 Head (5/6) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC09-004658A FID_CAM_COVER 1 2 FC09-001563B FL Y_IO_BOTTOM_COVER 1 3 FC09-001562A FL Y_IO_TOP_COVE R 1 4 AM06-0…
Page
+$1:+$
130
DECAN
S2
Head (5/6)
Page
+$1:+$
131
DECAN
S2
Head (5/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-004658A FID_CAM_COVER 1
2 FC09-001563B FLY_IO_BOTTOM_COVER 1
3 FC09-001562A FLY_IO_TOP_COVER 1
4 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO BD 1
5 AM03-020580A ASSY,HEAD-FLY CAM KIT S2_AS 5
6 FC18-902707 SOCKET HEAD CAP SCREW 4
7 FC18-902719 SOCKET HEAD CAP SCREW 4
8 FC15-001311A LIGHT_COVER 1
9 FC18-903475 FLAT WASHER 4
10 FC30-000971B PLATE-COAXIAL_COVER 1
11 FC09-001561C FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B
B AM03-006110A FLY_IO_BOARD_ASSY 1
FC36-001053A SHEET-BLACtK;FINE SHUT SP,157,75 1
12 AM03-005100C SM471_FLY_COAXIAL_PCB_ASSY 1
13 EP12-000029B MIRROR,OPTICS-SM411_PLUS_BEAM_SPLITTER 1
14 FC09-001565B BRACKET-BS_CLAMP;A6061-T6 2
15 FC09-004588A BRACKET-COAXIAL_PLATE 1
16 FC09-001849A BRACKET-COAXIAL_SPACE 4
17 FC09-004589A BRACKET-FLY_SIDE_PLATE1 1
18 FC09-004590A BRACKET-FLY_SIDE_PLATE2 1
19 RM03-000032A PLASTICS-PLUS_COAXIAL_DIFFUSEER 1
Page
+$1:+$
132
DECAN
S2

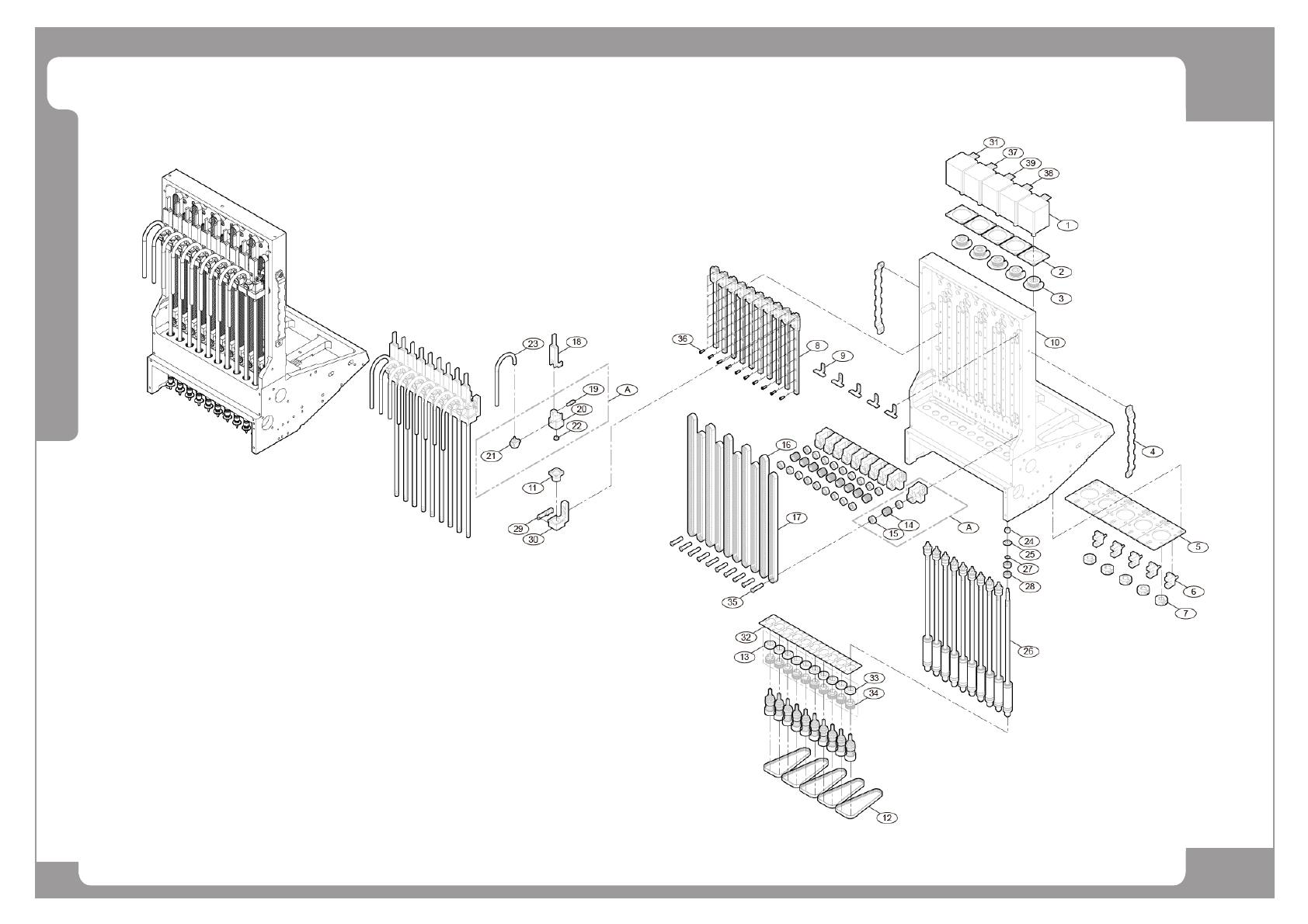

Head (6/6)
