Page
+$1:+$
136

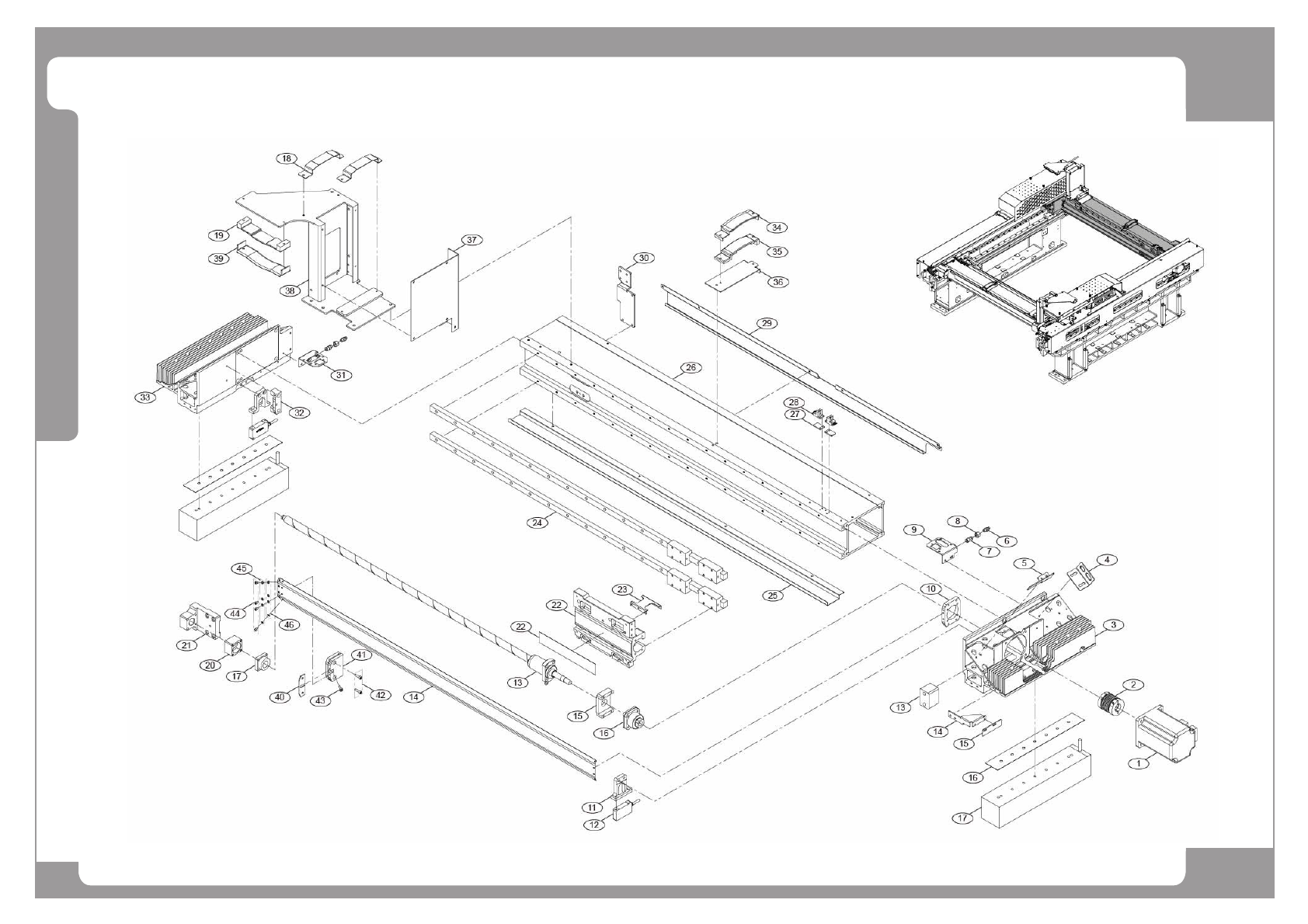

DECAN
S2
X Frame (1/2)
Page
+$1:+$
137
DECAN
S2
X Frame (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-001057 ACCESSORY,MOTOR-SERVO-MSME082G2A 2
2 MC22-000092 COUPLING 1
3 FC30-001671E PLATE-Y1 PROFILE;A6063S-T5 1 FC30-001671A/ FC30-001671B/ FC30-001671C/
FC30-001671D
4 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B
5 FC29-002614A DOG_CRASH_Y 1
6 FC28-900369 GREASE NIPPLE 2
7 J70541105A GREASE_NIPPLE_NUT 2
8 HP06-900080 STRAIGHT_FITTING 2
9 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A
10 FC09-003189A BRACKET_SPACER 1
11 FC15-003146A BKT_ENCODER_Y 4 FC09-003179A
12 FC28-000196 LINEAR_SCALE_UNIT_SCANNING_HEAD_LIC219 4 LINEAR SCALE HEAD
FC28-000197 LINEAR_SCALE_UNIT_LIC2107_SCALE_1220MM 4 LINEAR SCALE
13 MC13-001054 SCREW,BALL-WGF1520S-3GT+921.2LC5;RIGHT,1 1
14 FC36-000092A SHEET_B-SCREW_CV 1
15 FC29-004428A CUSHION_X_FRONT 1 J72541003A
16 MC04-900012 SUPPORT_UNIT 1
17 FC29-004430A STOPPER-CUSHION_X_REAR 1 J72541005B
18 FC09-001662A BKT CABLE X 2
19 PM02-001450A CUSHION CABLE Y 1
20 FC18-003429A SPACER-X_HOUSING_SPACER 1
21 FC29-001079C SUPPROT B SCREW X 1 FC29-001079B
22 FC05-000514A BASE HEAD CARRIER 1 FC05-000336B DECAN L2 : FC05-000514A
23 FC29-002632B DOG_SENSOR_X 1 FC29-002632A
24 MC13-900032 LM GUIDE 2
25 FC36-000074B SHEET_X-LOWER 1
26 FC39-001351A X_FRAME 1
27 J70541295A X_LIMIT_SENSOR_PLATE 2
28 EP19-900114 PHOTO_SENSOR 2
29 FC15-002046A COVER_CABLE_X 1
Page
+$1:+$
138
DECAN
S2
X Frame (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 FC09-003388A CHAIN_Y_SUPPORT 1
31 FC30-001674B CONNECT_PLT_R 1 FC30-001674A
32 FC07-001225A BLOCK_B-SCREW_CV 1
33 FC30-001672D PLATE-Y2 PROFILE;A6063S-T5 1 FC30-001672A/ FC30-001672B/ FC30-
001672C
34 FC09-001481B BKT CUSHION X 1
35 PM02-000794A CUSHION CABLE X 1
36 FC09-001771A BKT CABLE CHAIN X 1
37 FC15-002178A COVER CHAIN Y 1
38 FC09-003421C BKT CABLE CHAIN Y 1 FC09-003421A/ FC09-003421B
39 FC09-001485A BKT CUSHION Y 1
40 FC09-003695B BRACKET-SPACER_F;STS304_CP 1
41 FC07-001225A BLOCK-B-SCREW_COVER_F 1
42 J6001401538 SOCKET HEAD CAP SCREW 2
43 J6001401238 SOCKET HEAD CAP SCREW 1
44 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 4
45 J6043300038 SPRING WASHER 4
46 J6042300038 FLAT WASHER 4
