Page
+$1:+$
144

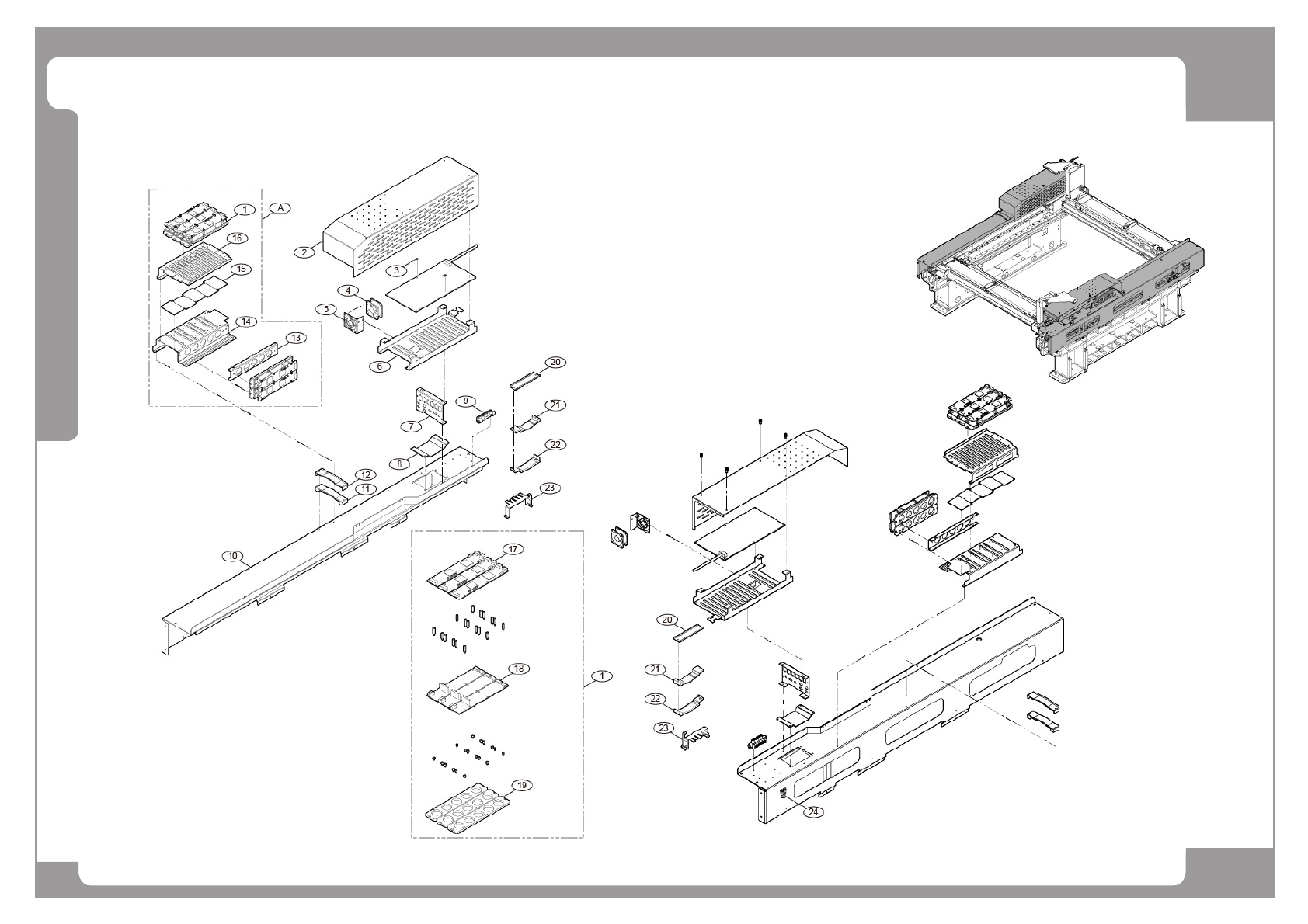

DECAN
S2
Y Frame Duct
Page
+$1:+$
145
DECAN
S2
Y Frame Duct
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011096A ASSY,ETC,IMS-Y CABLE DUCT TOTAL 1
A AM03-010753A DRIVER Y DUCT 2
1 AM03-010697B ASSY,ELECTRIC-SM511 HDCB PANA ASSY 10 AM03-010697A
2 FC15-002060C COVER-COVER DRIVER Y 2 FC15-002060B(~#98)
3 FC18-903190 PROFILE MOUNT 4
4 CS02-000006 COOLER FAN 2
5 FC09-001983A BKT FAN 2
6 FC09-003419A BKT AXIS B 2
7 FC09-003417A PANLEL CON Y 2
8 FC09-003420A BOTTOM DUCT 2
9 HP09-000127 MANIFOLD KM11-04-08-10 2
10 FC09-003410C Y CABLE DUCT 2 AM03-010752A/ FC09-003410B
11 PM02-001450A CUSHION CABLE Y 2
12 FC09-001485A BKT CUSHION Y 2
13 FC09-001647A BKT SIDE SUB 2
14 FC09-003414A BASE DRIVER Y 2
15 EP06-000374 SERVO CONTROL-DRIVER 10 EP06-000182
16 FC09-003416B BKT DRIVER T 2 FC09-003416A
17 AM03-010695A ASSY,BOARD-SM511_HDUB_PANA_ASSY 5
18 AM03-010696A ASSY,BOARD-SM511_HDLB_PANA_ASSY 5
19 FC30-000801A PLATE AMP Z 5
20 FC09-001648A BRACKET-CABLE FIXER 2
21 PM02-000794A CUSHION CABLE X 2
22 FC09-001481B BKT CUSHION X 2
23 FC09-001577B BRACKET-FLAT CABLE CLAMP 2
24 HP06-000457 FITTING 1
Page
+$1:+$
146

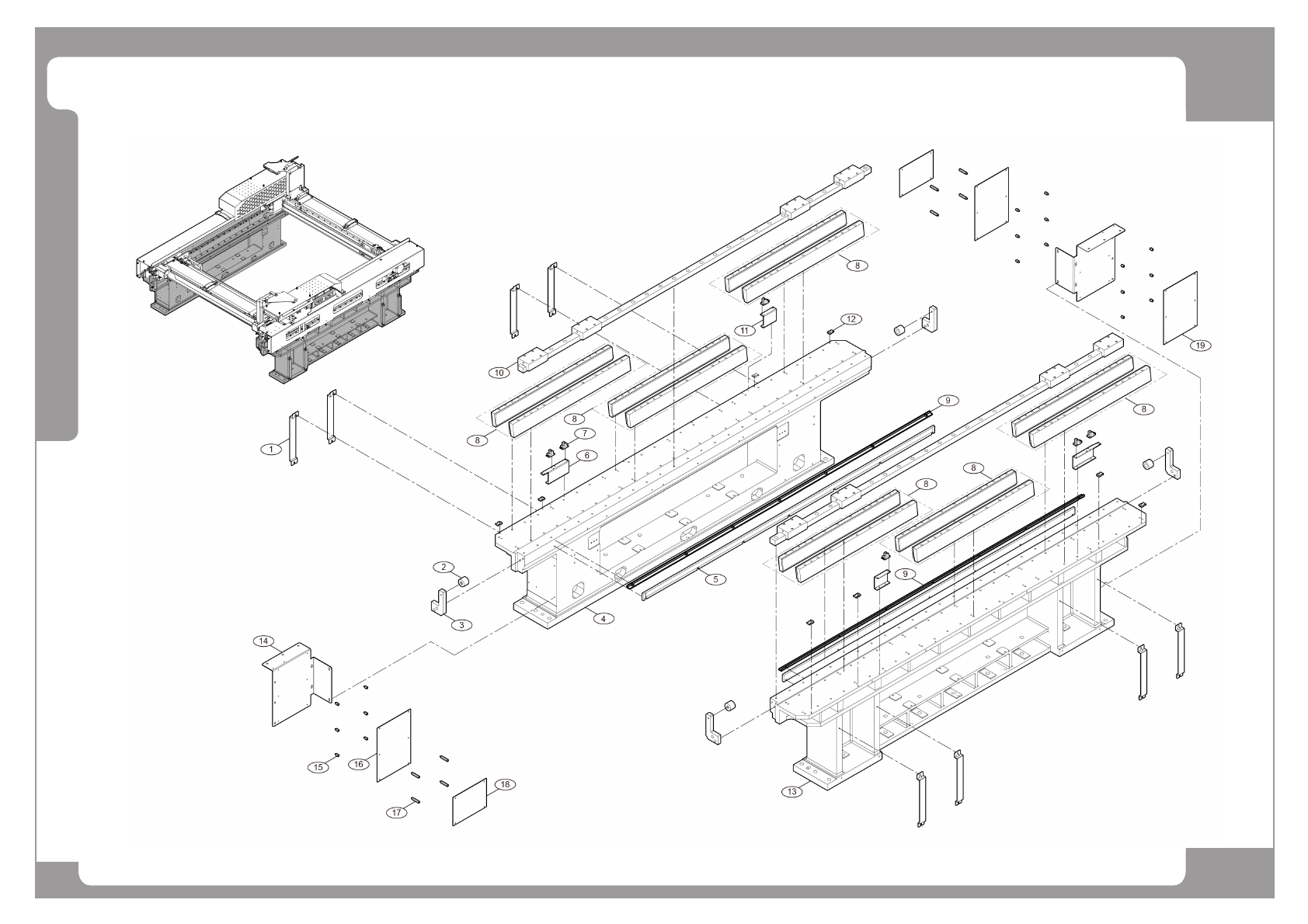

DECAN
S2
Y Frame
