DECAN_S2_TRM(Ver2.3_CS18.01) - 第156页
Page +$1:+$ 152 DECAN S2 Cover (2/2)
Page
+$1:+$
151
DECAN
S2
Cover (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-010723A ASSY,COVER-COVER TOTAL SM511 1
B AM03-011036A ASSY,COVER-LOWER FL 511 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-002066A LOWER FR 1
5 FC15-001147A FB SIDE COVER 4
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-002062A SIDE LOWER L 1
11 FC15-002061A SIDE LOWER R 1
C AM03-018772A ASSY,COVER-LOWER RR 511 1 AM03-011033A(~#197)
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
D AM03-018773A ASSY,COVER-LOWER RL 511 1 AM03-011034A(~#197)
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP CP-328-B-4-Ivory 4
16 AM03-005366A ASSY,CONTROLLER-TEACHING BOX ASSY 2
Page
+$1:+$
152
DECAN
S2

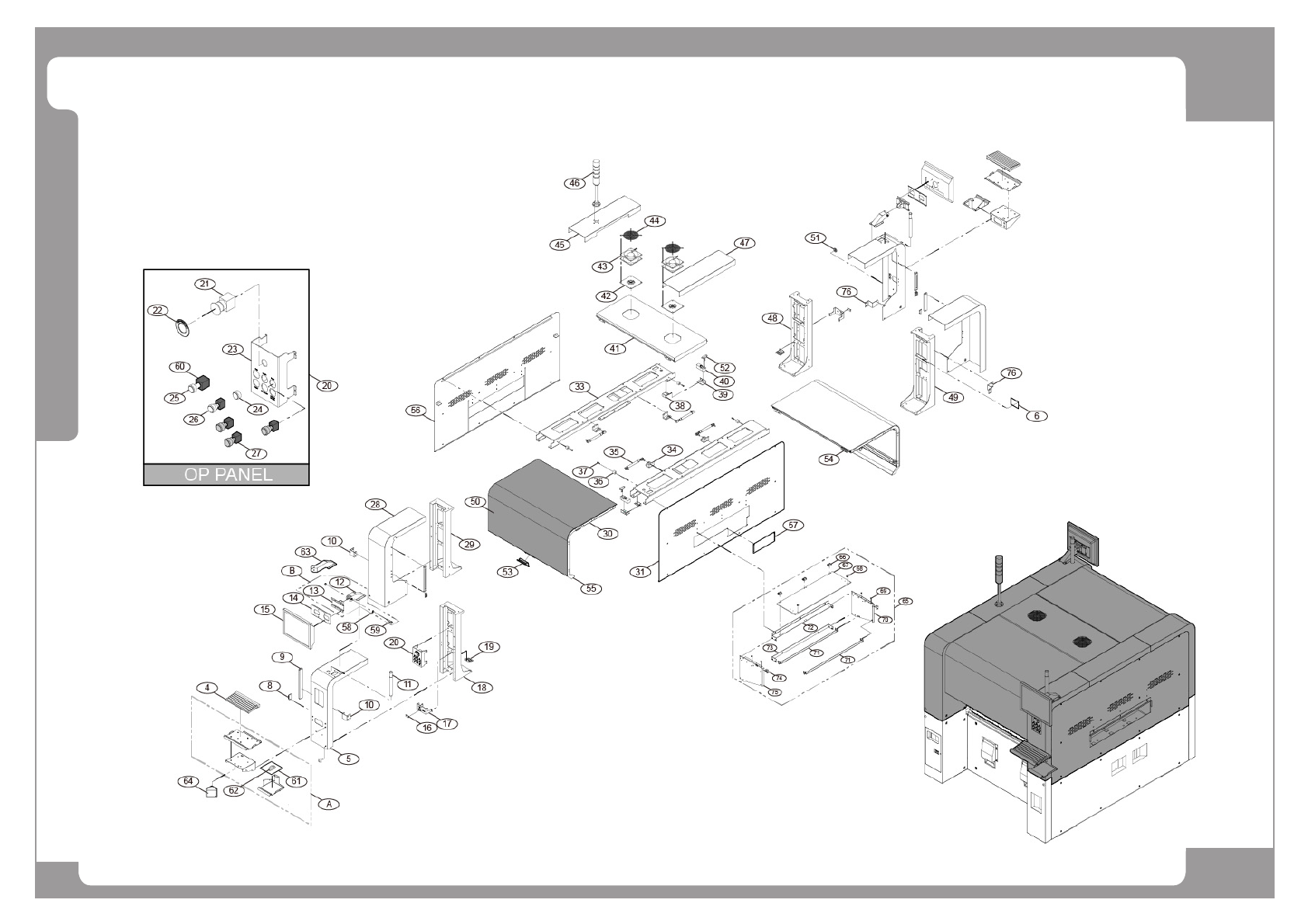

Cover (2/2)
Page
+$1:+$
153
DECAN
S2
Cover (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-018674B ASSY,COVER-KEYBOARD BKT DS 2 AM03-018674A(~#261)
4 CD04-900026 MINI_KEYBOARD 2
5 FC15-002286C COVER-UPPER R N 2 FC15-002286B
6 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
8 FC12-900009 MAGNETIC_C-179 4
9 J90831139A FRONT AREA SENSOR CABLE ASSY SM33-CV016 1
J90831759A REAR AREA SENSOR CABLE ASSY SM421-CV018 1
10 FC09-003935B COVER INNER BKT F 2 FC09-003935A
11 EP02-001746A HARNESS-V1+ BLUE TOWER LAMP CABLE ASSY 2
B AM03-011039A ASSY,COVER-LCD BKT 1
12 FC15-002089C LCD BASE 2
13 FC15-002090B LCD HINGE 2 FC15-002090A
14 FC15-000505B LCD_GUIDE_PL 2
15 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2
16 J7070353A BARCODE_COVER 2
17 FC09-003392B BRACKET-LOWER OP PANEL 2 FC09-003392A
18 FC39-001575B COVER FRAME FR N 1 FC39-001575A
19 J70700352B CONNECTOR BRACKET 2
20 AM03-010905C CABLE ASSY-OP_PANEL_ASSY_DECAN 2 AM03-010905B #280~
21 EP20-001015 SWITCH,ETC-EMER_YW1B-V4E02R 2 EP07-000581 #280~
22 PT03-900161A EMERGENCY STICKER 2
23 FC09-003393A BRACKET-OP PANEL 2
24 EP20-001012 SWITCH,PUSH-LBW6L-M1T14G_START 2 EP20-000113 #280~
25 EP20-001013 SWITCH,PUSH-LBW6L-M1T14R_STOP 2 EP20-000167 #280~
26 EP20-001017 SWITCH,PUSH-LBW6L-M1T14S 2 EP20-000127 #280~
27 EP20-001016 SWITCH,PUSH-LBW6L-M1T14PW 2 EP20-000114 #280~
EP20-001014 SWITCH,PUSH-LBW6L-M1T24PW 4 EP20-000115 #280~
28 FC15-002287B UPPER L N 2 FC15-002287A
