Page +$1:+$ 232 DECAN S2 Conveyor Sensor Board (3/4)
Page
+$1:+$
231
DECAN
S2
Conveyor Sensor Board (2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 1
2 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1
3 AM03-011146B CABLE ASSY-R_DUMP_BOX_SWITCH 1
4 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1
5 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1
6 J90831196C BUT_SENSOR_CABLE_ASSY 1
7 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1
8 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1
Page
+$1:+$
232
DECAN
S2

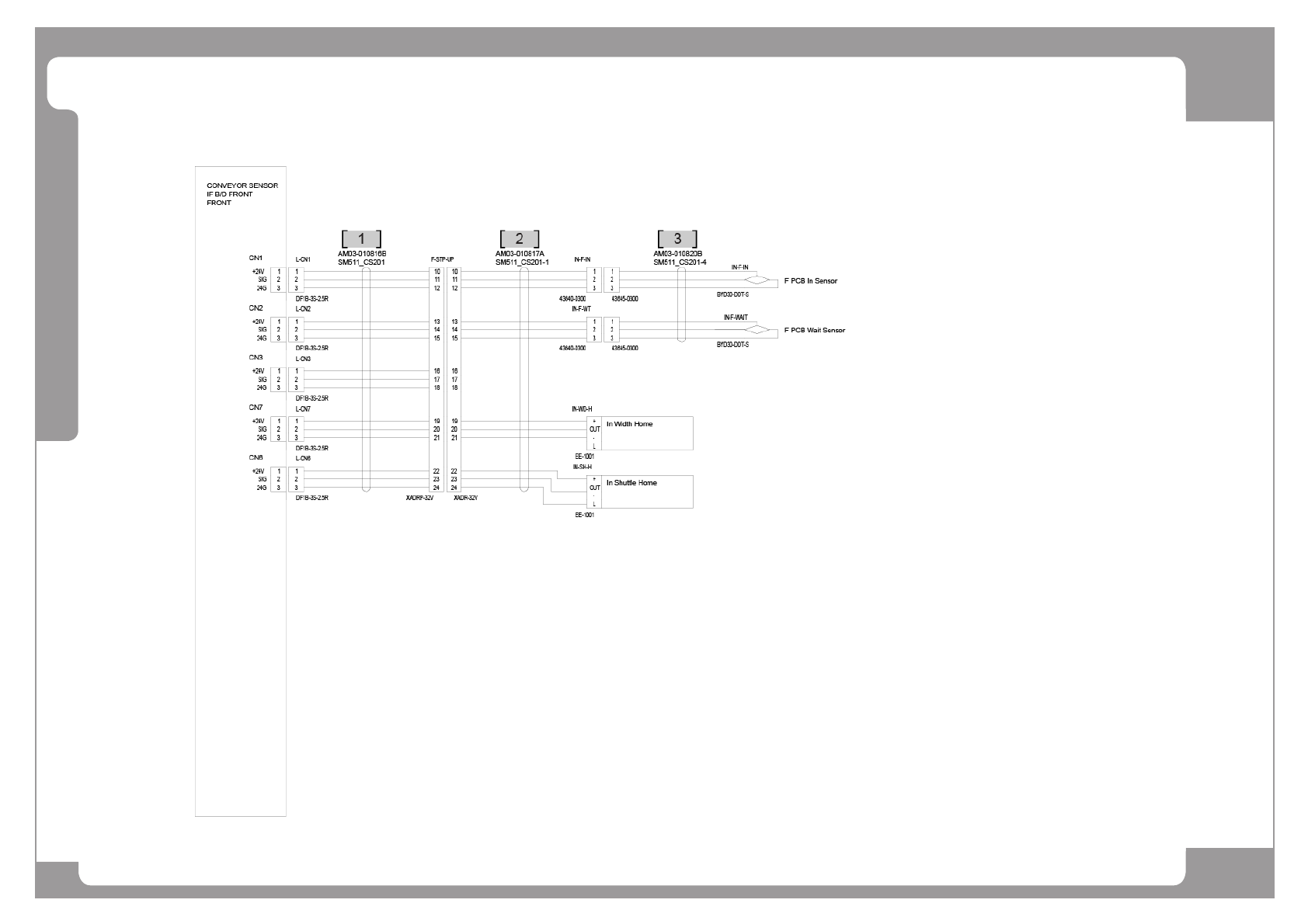

Conveyor Sensor Board (3/4)
Page
+$1:+$
233
DECAN
S2
Conveyor Sensor Board (3/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1
2 AM03-010817B CABLE ASSY-IN_CONV_32P_MODULE_B 1 AM03-010817A
3 AM03-019721A CABLE ASSY-IN_CONV_F_PCB_SEN_IN_WAIT 1
