DECAN_S2_TRM(Ver2.3_CS18.01) - 第24页
Page +$1:+$ 20 DECAN S2 Feeder Base (Rear) 9 7 16 15 5 3 1 2 6 12 14 8 5 5-1 15-1 15-1 15-2 5-2 15-3 15-2 5-2 15-3 5-2 A 11 13 16-1 10 Retrofit A-type Retrofit B-type
Page
+$1:+$
19
DECAN
S2
Feeder Base (Front)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A J90571009A FEEDER_BASE_MODULEJ90571009A 1
AM03-014910A ASSY,FEEDER BASE-FEEDER_BASE_ST_DECAN 1 J90571018A Phantom Assy
AM03-004577A ASSY,FEEDER BASE-FEEDER_BASE_MODULE_S 1
1 FC07-000033B VERTICAL_PLATE 1
2 J70570262C M_90_CAP_TOP_PLATE 5
3 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
4 FC05-000122A FEEDER_BASE_BODY 1
5 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
6 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
7 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
8 AM03-000694A ASSY,BOARD-FBLN 1
9 AM03-000693A ASSY,BOARD-FBRN 1
10 FC09-000901C BRACKET-TOP_PLATE_S;STS304_CP 1
11 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE;STS304_CP 1
12 FC14-000876 COUPLER TCP1B10-15A-R8036 60 HP06-900169
Page
+$1:+$
20
DECAN
S2

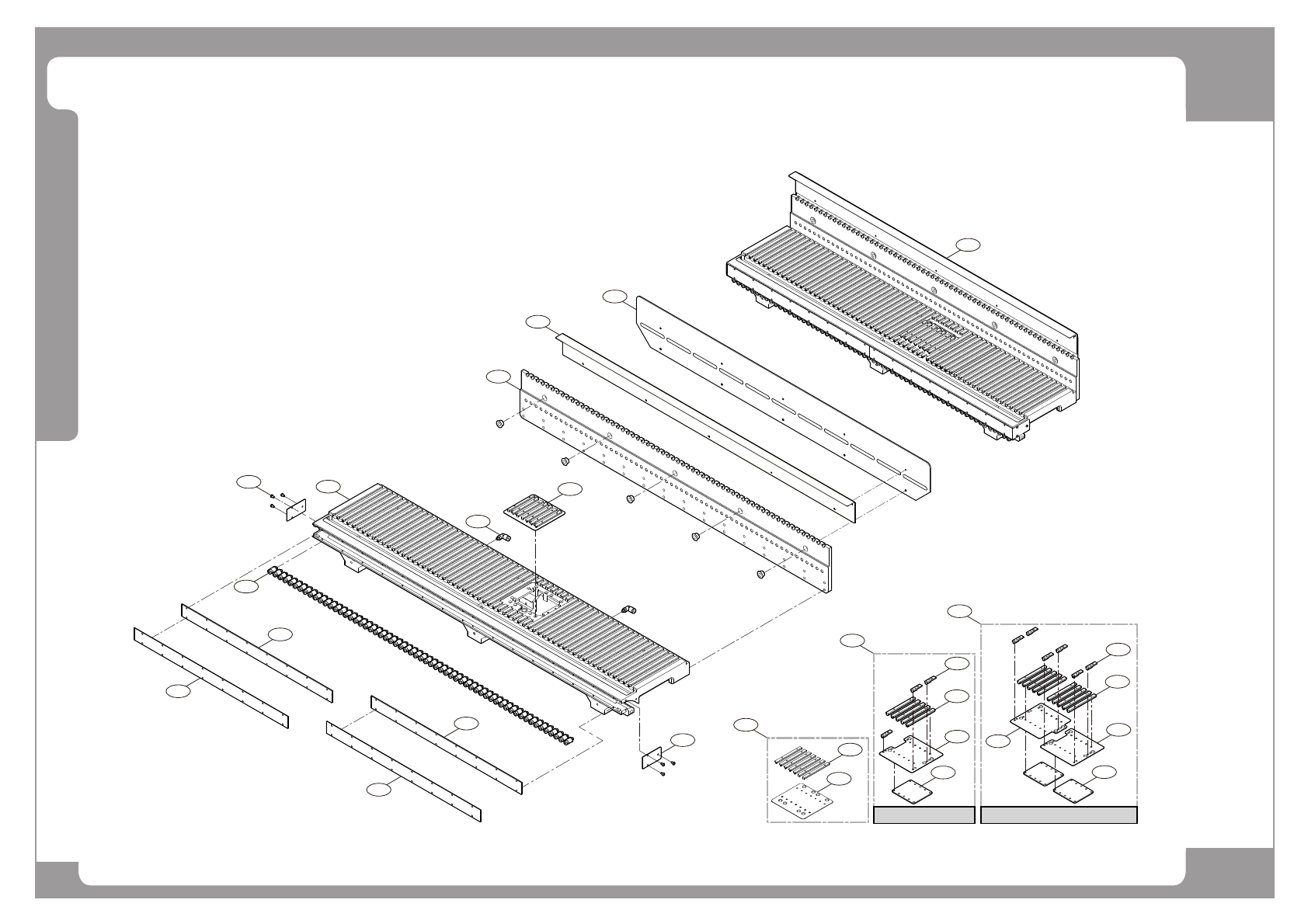

Feeder Base (Rear)
9
7
16
15
5
3
1
2
6
12
14
8
5
5-1
15-1
15-1
15-2
5-2
15-3
15-2
5-2
15-3
5-2
A
11
13
16-1
10
Retrofit A-type
Retrofit B-type
Page
+$1:+$
21
DECAN
S2
Feeder Base (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014087A FEEDER BASE STAGE TOTAL 1 AM03-012402A
1 FC09-001200C TOP_PLATE_BACK_HOLE 1 FC09-001200A
2 FC09-000901C TOP-PLATE-S 1 FC09-000901A
3 FC07-000033B VERTICAL LOCATOR 1
4 J70570262C M_90_CAP_TOP_PLATE 5
5 AM03-014393A ASSY,COVER_FEEDER_T_SLOT_SUB 2 FC15-002403A STANDARD
5-1 FC15-002954A COVER_NOCE_STAGE_C 1
5-2 FC07-001595A BLOCK_GUIDE_B_NONE_STAGE 17
6 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2 HP06-900047
7 FC05-000469A FEEDER_BASE_STAGE_SM511 1
8 J7057213A SIDE CABLE COVER-FB 2
9 FC18-901830 BUTTON HEAD CAP SCREW 6
10 FC14-000876 COUPLER 60 HP06-900169
11 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
12 AM03-000694A ASSY,BOARD-FBLN 1
13 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
14 AM03-000693A ASSY,BOARD-FBRN 1
15 AM03-014391A ASSY,COVER-RETROFIT_A_TYPE 1 WHEN 1 STAGE CAMERA
15-1 FC15-002834A COVER_NONE_STAGE_SUB 1
15-2 FC15-002832A COVER_NONE_STAGE 1
15-3 FC07-001594A BLOCK_GUIDE_B_NONE_STAGE 9
16 AM03-014392A ASSY,COVER-RETROFIT_B_TYPE 1 WHEN NO STAGE CAMERA
16-1 FC15-002833A COVER_NONE_STAGE-2 1
