DECAN_S2_TRM(Ver2.3_CS18.01) - 第274页
Page +$1:+$ 270 DECAN S2 Head IF Board (5/5)
Page
+$1:+$
269
DECAN
S2
Head IF Board (4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1
2 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1
3 AM03-005583A CABLE ASSY-SW_HOME_SENSOR 1
4 AM03-005582D CABLE ASSY-R_HOME_SENSOR 1 AM03-005582B ONLY FOR HS HEAD
AM03-007499C CABLE ASSY-R_HOME_SENSOR ONLY FOR FS HEAD
Page
+$1:+$
270
DECAN
S2

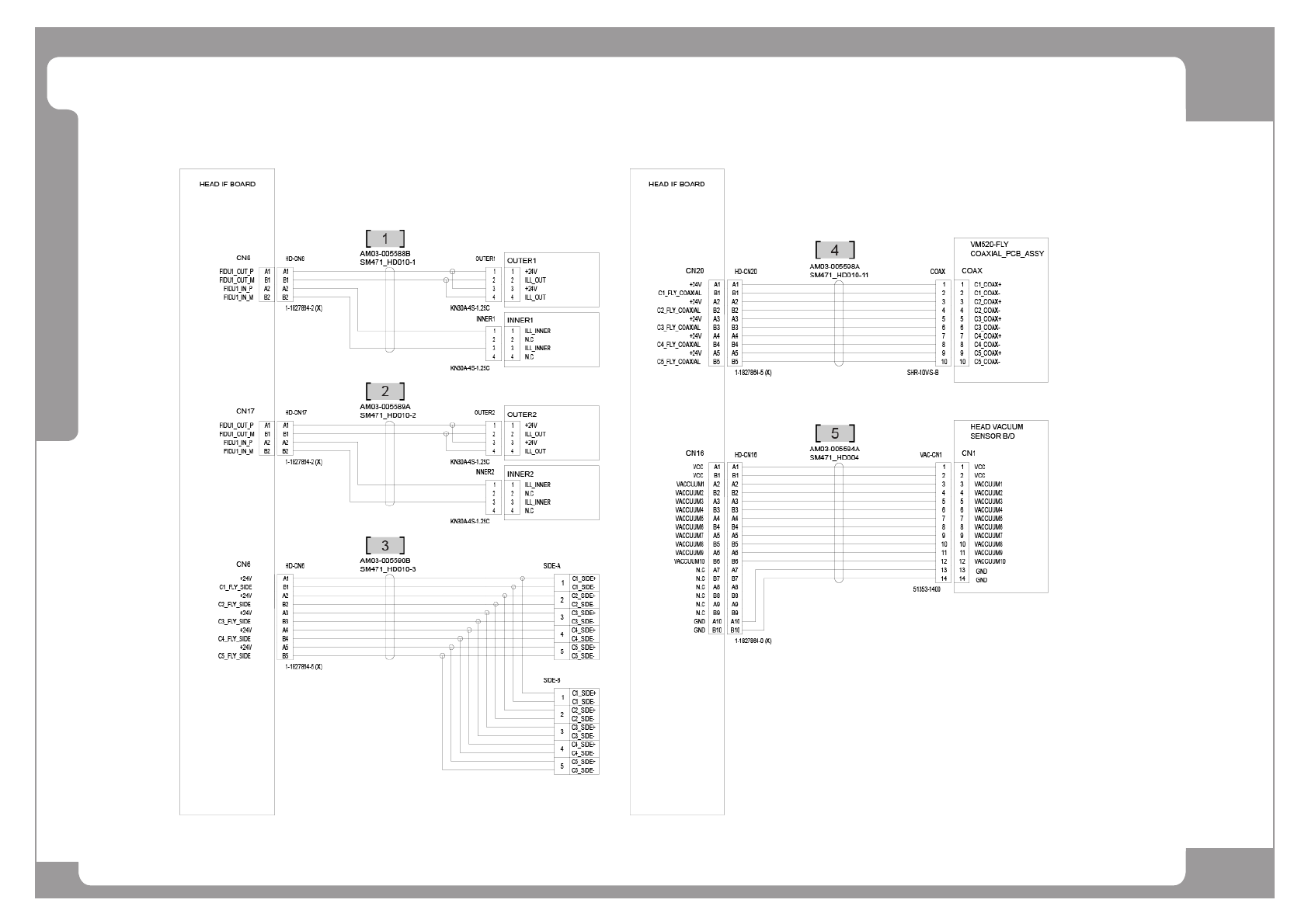

Head IF Board (5/5)
Page
+$1:+$
271
DECAN
S2
Head IF Board (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005588B CABLE ASSY-FID1_COAX 1
2 AM03-005589A CABLE ASSY-FID2_COAX 1
3 AM03-005590B CABLE ASSY-FLY_SIDE_1 1
4 AM03-005598A CABLE ASSY-FLY_COAXIAL 1
5 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1
