Page +$1:+$ 24 DECAN S2 Docking Cart (1/4)
Page
+$1:+$
23
DECAN
S2
Stage CAM Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B
B AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B
1 J7153373A FIDUCIAL_DISK 1
2 FC15-001295B LIGHT_COVER 1
3 FC09-002220A LIGHT_G_1 1
4 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
5 J90600075B STAGE SIDE LIGHT BOARD ASSY 1
6 EP15-000010A REFLECT_SHEET 4
7 FC09-002223A LIGHT GUIDE 4
8 FC15-001294A PROFILE_2 1
9 EP12-000044A GLASS 1
10 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
11 PT02-000048A DIFFUSER 1
12 FC15-002395B COVER-STAGE_CAM_BOARD 1 FC15-002395A
13 FC09-002218A GLASS_STOP 2
14 FC29-900610 HEX SUPPORT 4
15 FC15-001293A PROFILE_1 1
16 FC15-001291A COVER_2 1
17 FC09-002222A PCB_BASE_2 1
18 FC09-002221A PCB_BASE_1 1
19 FC05-000225A BASE 1
20 J7159120D CAMERA_STAND 1
21 JS759001A CAMERA_HOLDER 1
22 J90600074B STAGE OUTER LIGHT BOARD ASSY 4
23 FC09-003893A BKT_S_CAM_BOARD 1
24 FC15-001290A COVER_1 1
25 FC15-001292A COVER_COMP 1
26 J7066008D LINK_SHAFT_1 1
Page
+$1:+$
24
DECAN
S2
Docking Cart (1/4)
Page
+$1:+$
25
DECAN
S2
Docking Cart (1/4)

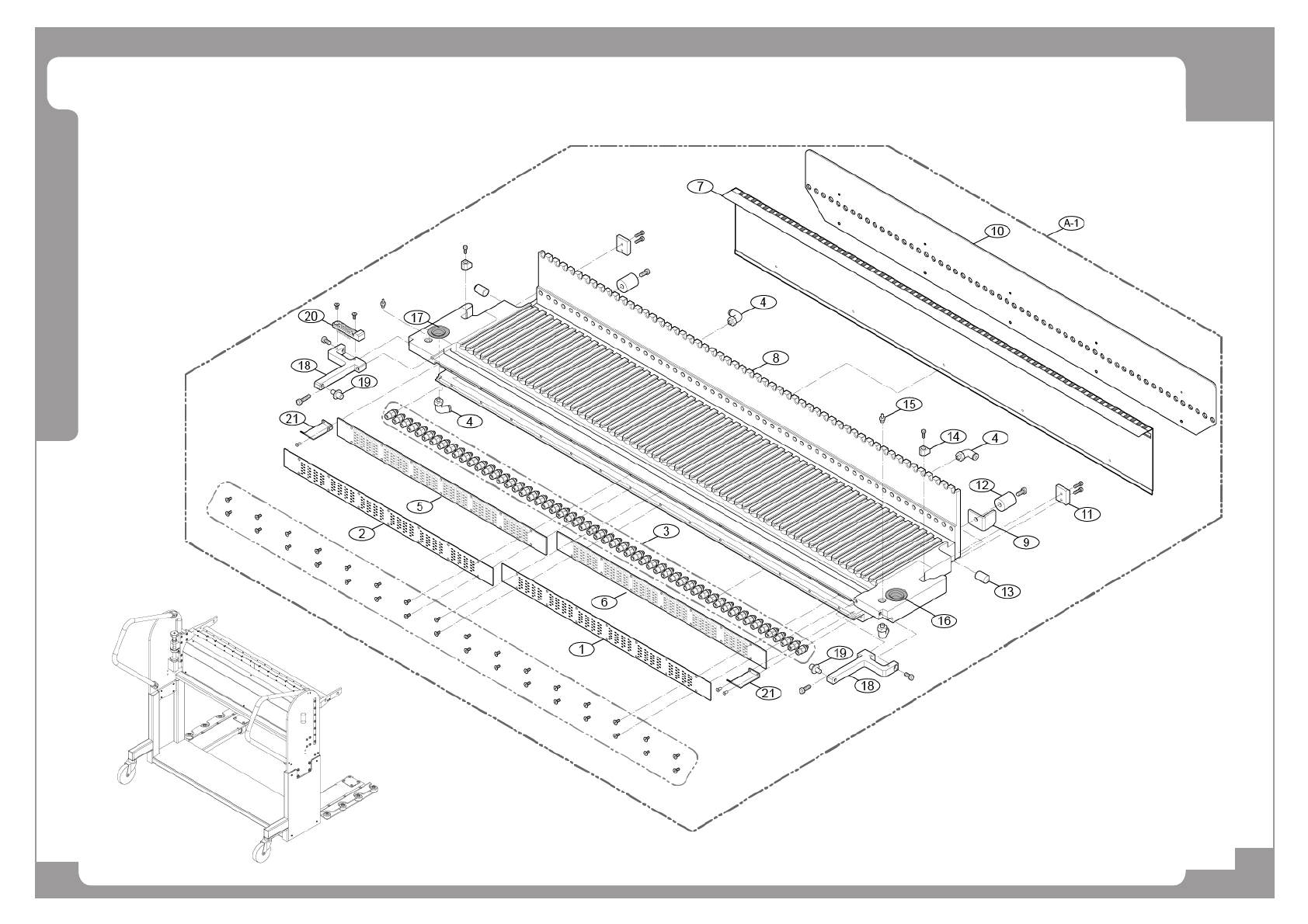

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1
2 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 FC14-000876 COUPLER TCP1B10-15A-R8036 56 HP06-900169
4 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4
5 AM03-0006345A ASSY,BOARD-FBLN 1
6 AM03-0006346A ASSY,BOARD-FBRN 1
7 FC30-001081A TOP PLATE S DCN 1
8 J90571009A DC-FEEDER_BASE_MODULE 1
9 FC09-002060A BRACKET-SME_DC_BKT 2
10 FC30-001080A TOP PLATE B DCN 1
11 J7257009A CUSHION-Y[J7257009A] 2
12 FC29-900535 URETHANS[AZXS 20-23-M5-7] 2
13 HP15-900008 BALL PLUNGERS[BSX12] 2
14 J7257013A CUSHION-LOCATION PIN[J7257013A] 2
15 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2
16 J7057236A SLOT BUSH[J7057236A] 1
17 MC06-900001 CIRCULAR BUSH[JBHM16-16] 1
18 J7057237C ANTI-PITCH ARM[J7057237C] 2
19 J7057238B ANTI-PITCH PIN[J7057238B] 2
20 J7257014A PROBE HOLDER 1
21 J7057239B CABLE HOLDER[J7057239B] 2
AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1 AM03-001731B
