NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1
2 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 FC14-000876 COUPLER TCP1B10-15A-R8036 56 HP06-900169
4 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4
5 AM03-0006345A ASSY,BOARD-FBLN 1
6 AM03-0006346A ASSY,BOARD-FBRN 1
7 FC30-001081A TOP PLATE S DCN 1
8 J90571009A DC-FEEDER_BASE_MODULE 1
9 FC09-002060A BRACKET-SME_DC_BKT 2
10 FC30-001080A TOP PLATE B DCN 1
11 J7257009A CUSHION-Y[J7257009A] 2
12 FC29-900535 URETHANS[AZXS 20-23-M5-7] 2
13 HP15-900008 BALL PLUNGERS[BSX12] 2
14 J7257013A CUSHION-LOCATION PIN[J7257013A] 2
15 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2
16 J7057236A SLOT BUSH[J7057236A] 1
17 MC06-900001 CIRCULAR BUSH[JBHM16-16] 1
18 J7057237C ANTI-PITCH ARM[J7057237C] 2
19 J7057238B ANTI-PITCH PIN[J7057238B] 2
20 J7257014A PROBE HOLDER 1
21 J7057239B CABLE HOLDER[J7057239B] 2
AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1 AM03-001731B
Page
+$1:+$
26
DECAN
S2
Docking Cart (2/4)
Page
+$1:+$
27
DECAN
S2
Docking Cart (2/4)

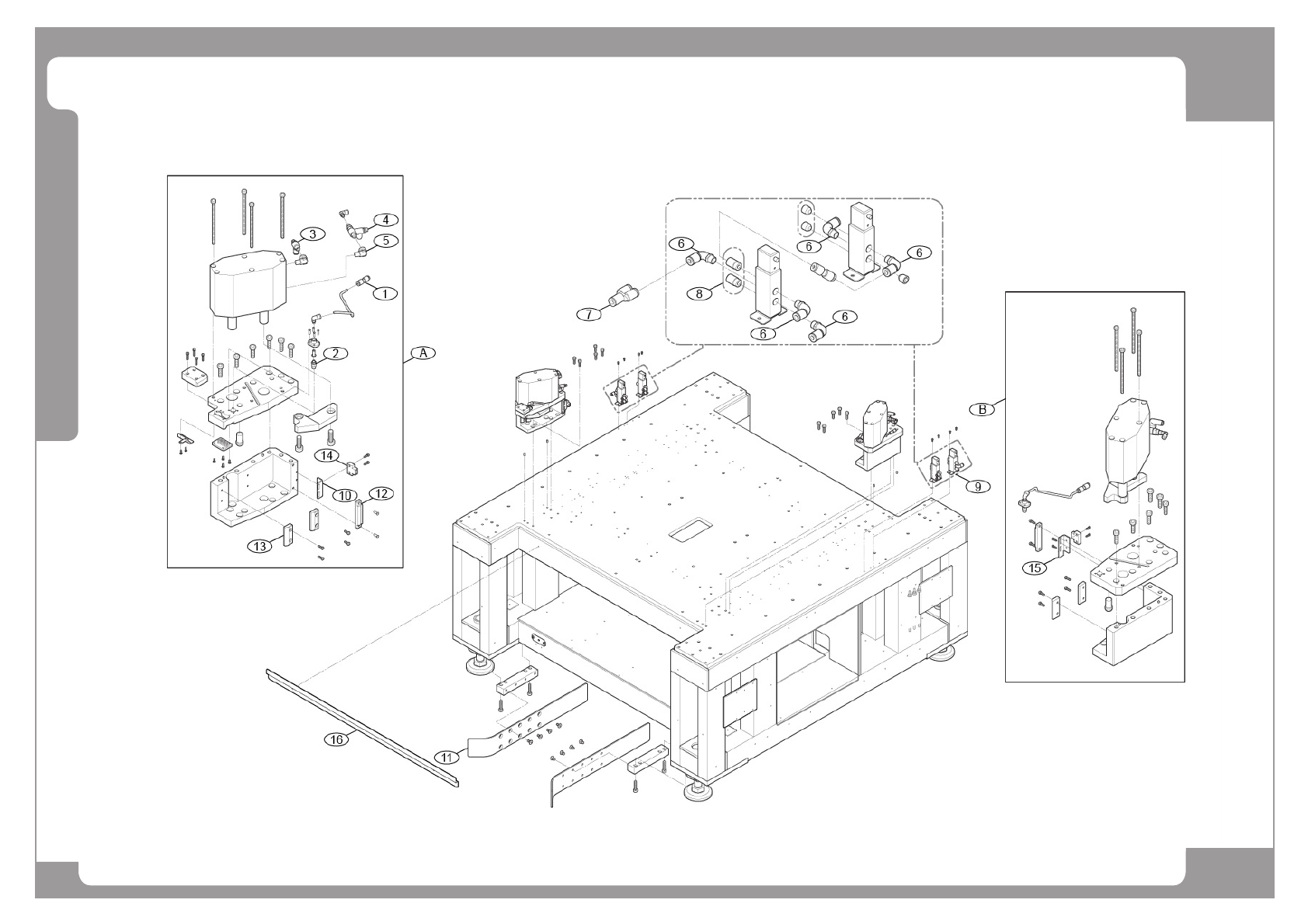

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
B AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
1 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 1
2 HP06-900299 COUPLER[KD-M5-SA34697KR] 1
3 HP14-900089 SPEED CON[AS2201F-01-06S] 1
4 HP14-900090 SPEED CON[ASP330F-01-06S] 1
5 HP06-900293 ELBOW FITTING[PT18EF] 2
6 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047
7 HP06-900050 UNION Y FITTING [KQ2U04-06] 1
8 HP09-900162 SILENCER AN101-01 2
9 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1
10 J7057244B SENSOR BRACKET[J7057244B] 1
11 J7057247A POSITIONNING GUIDE[J7057247A] 2
12 J70570250B BALL RAIL 2
13 J7257010B CUSHION-X[J7257010B] 4
14 EP19-900112 PHOTO SENSOR[EE-SY672] 2
15 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
16 FC15-001137A COVER-FB COVER 1
