DECAN_S2_TRM(Ver2.3_CS18.01) - 第326页
Page +$1:+$ 322 DECAN S2 Safety Contro l Board (4/8)
Page
+$1:+$
321
DECAN
S2
Safety Control Board (3/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010948B CABLE ASSY-R_OP_PANEL_IF 1
2 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1
3 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1
4 AM03-010839A CABLE ASSY-SACO_F_TBOX 1
5 AM03-010837C CABLE ASSY-FRONT_TEACHING_BOX_EXT 1 AM03-010837B
6 AM03-010840B CABLE ASSY-SACO_R_TBOX 1
7 AM03-010838C CABLE ASSY-REAR_TEACHING_BOX_EXT 1 AM03-010838B
Page
+$1:+$
322
DECAN
S2

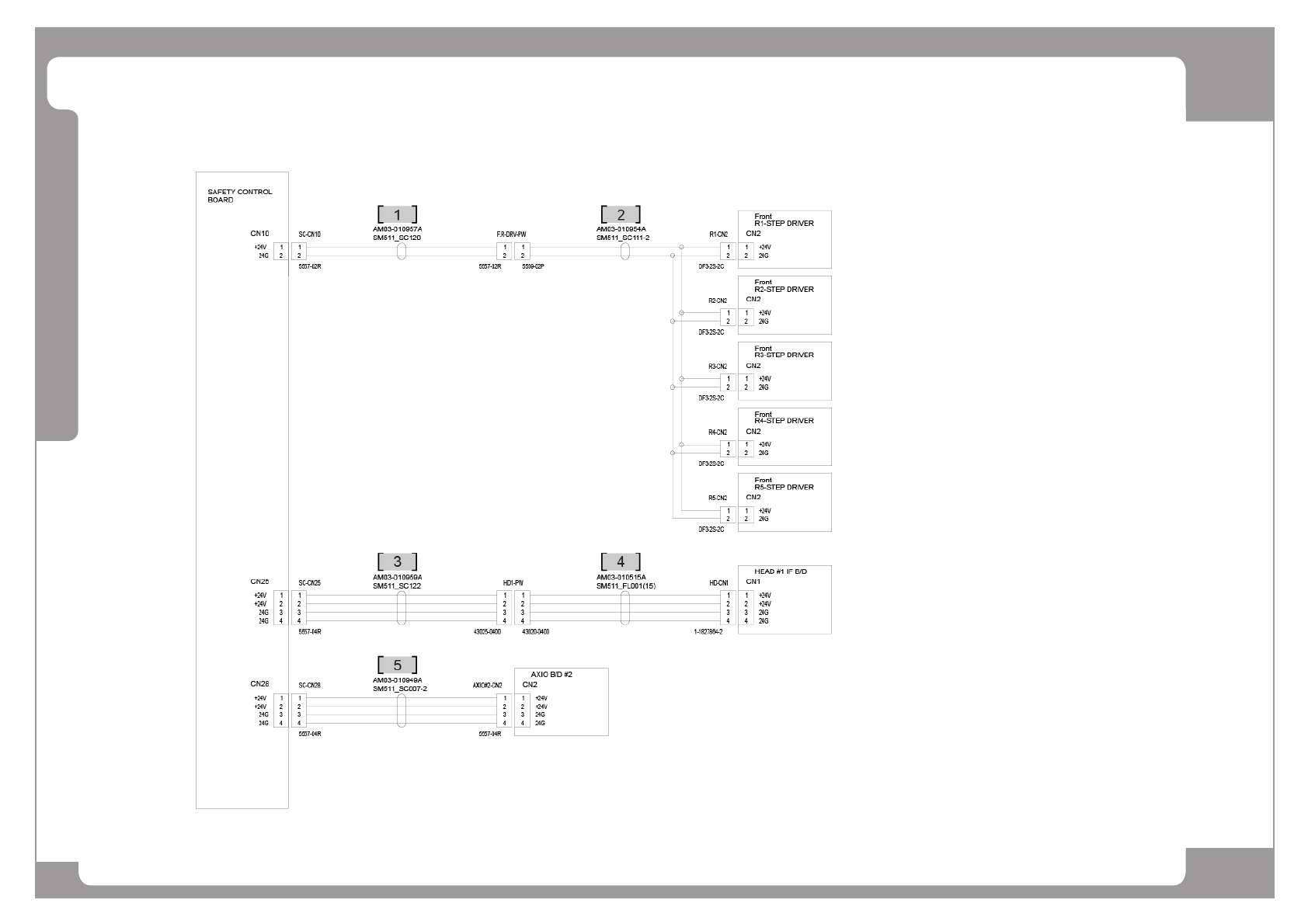

Safety Control Board (4/8)
Page
+$1:+$
323
DECAN
S2
Safety Control Board (4/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010957A CABLE ASSY-FR_STEP_DRV_PWR_EXT 1
2 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1
3 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1
4 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
5 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1
