Page +$1:+$ 31 DECAN S2 Docking C art (4/4) NO. P ART NO. P ART NAME Q'TY Old No. Sto ck Apply Reference 1 J70571021A NEW_ BOARD_COVER J70571021 A 1 2 J74601002A FE EDER_IO_EXT_INSULA TION_PCB J74601002A 1 3 J746010…
Page
+$1:+$
30
DECAN
S2

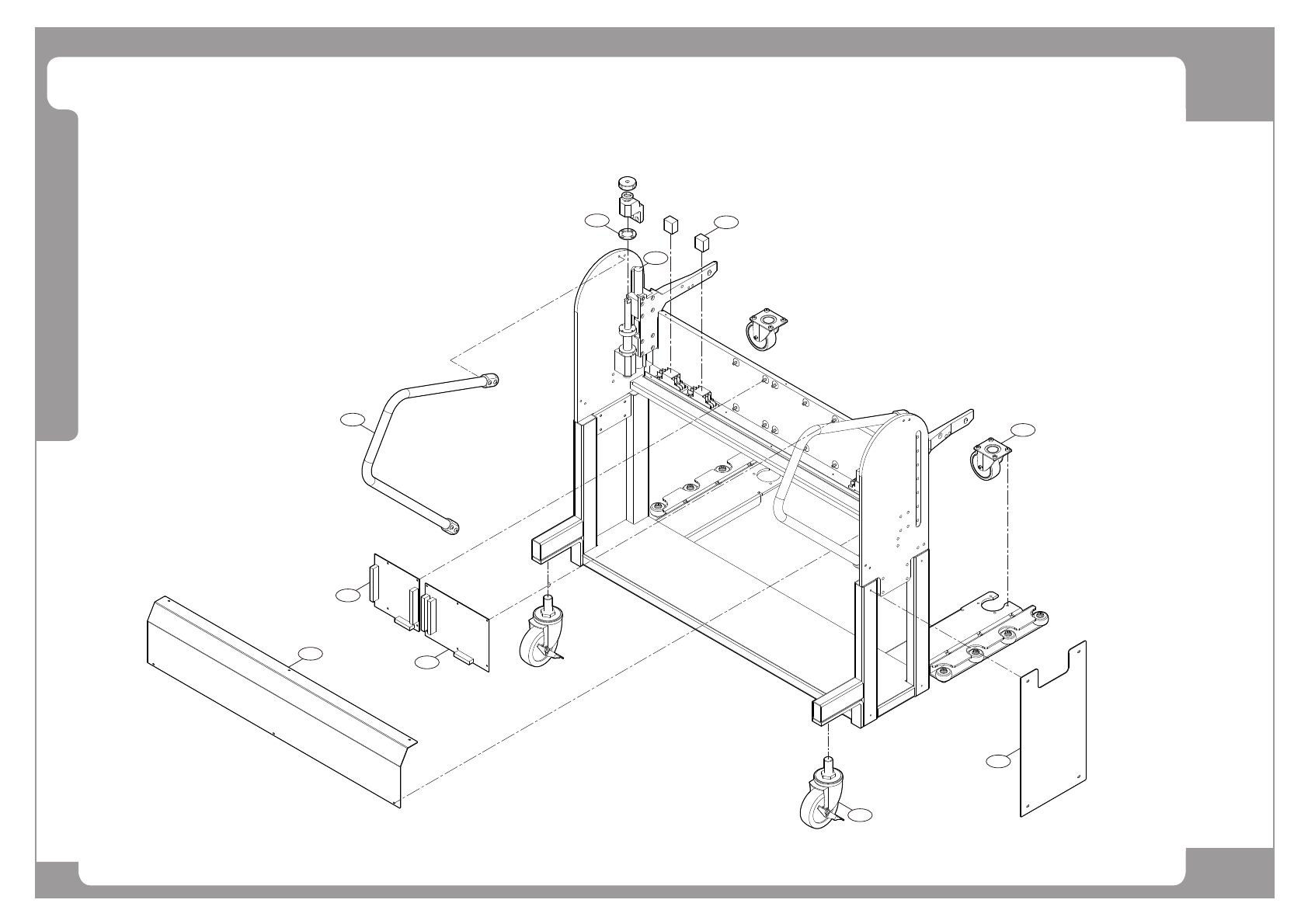

Docking Cart (4/4)
5
4
7
6
10
1
2
3
8
9
Page
+$1:+$
31
DECAN
S2
Docking Cart (4/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70571021A NEW_BOARD_COVER J70571021A 1
2 J74601002A FEEDER_IO_EXT_INSULATION_PCB J74601002A 1
3 J74601001A FEEDER_IO_INSULATION_PCB J74601001A 1
4 J70570252C CART GRIP 2
5 J7257008B CUSHION-Z[J7257008B] 2
6 EP18-000038 RELAY-LY2N-D2;POWER,DC24V, 36.9mA,10A 2
7 MC14-900026 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2
8 FC15-001209A COVER-LOWER COVER DCN 2
9 MC14-900027 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2
10 J9057179A D/CART VERTICAL GUIDE[J9057179A] 2
AM03-001738C CABLE ASSY-D-CART INNER IF CABLE ASSY 1
AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A
AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1
AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1
AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1
AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1
AM03-001748C CABLE ASSY-D-CART DEVICENET CABLE ASSY 1
Page
+$1:+$
32
DECAN
S2
Shuttle Conveyor (1/10)
1
2
A
3
Entry Zone Extension Assy
Exit Zone Extension Assy
