Page +$1:+$ 348 DECAN S2 Motor IF Board (9/18)
Page
+$1:+$
347
DECAN
S2
Motor IF Board (8/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1
4 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
5 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1
Page
+$1:+$
348
DECAN
S2
Motor IF Board (9/18)

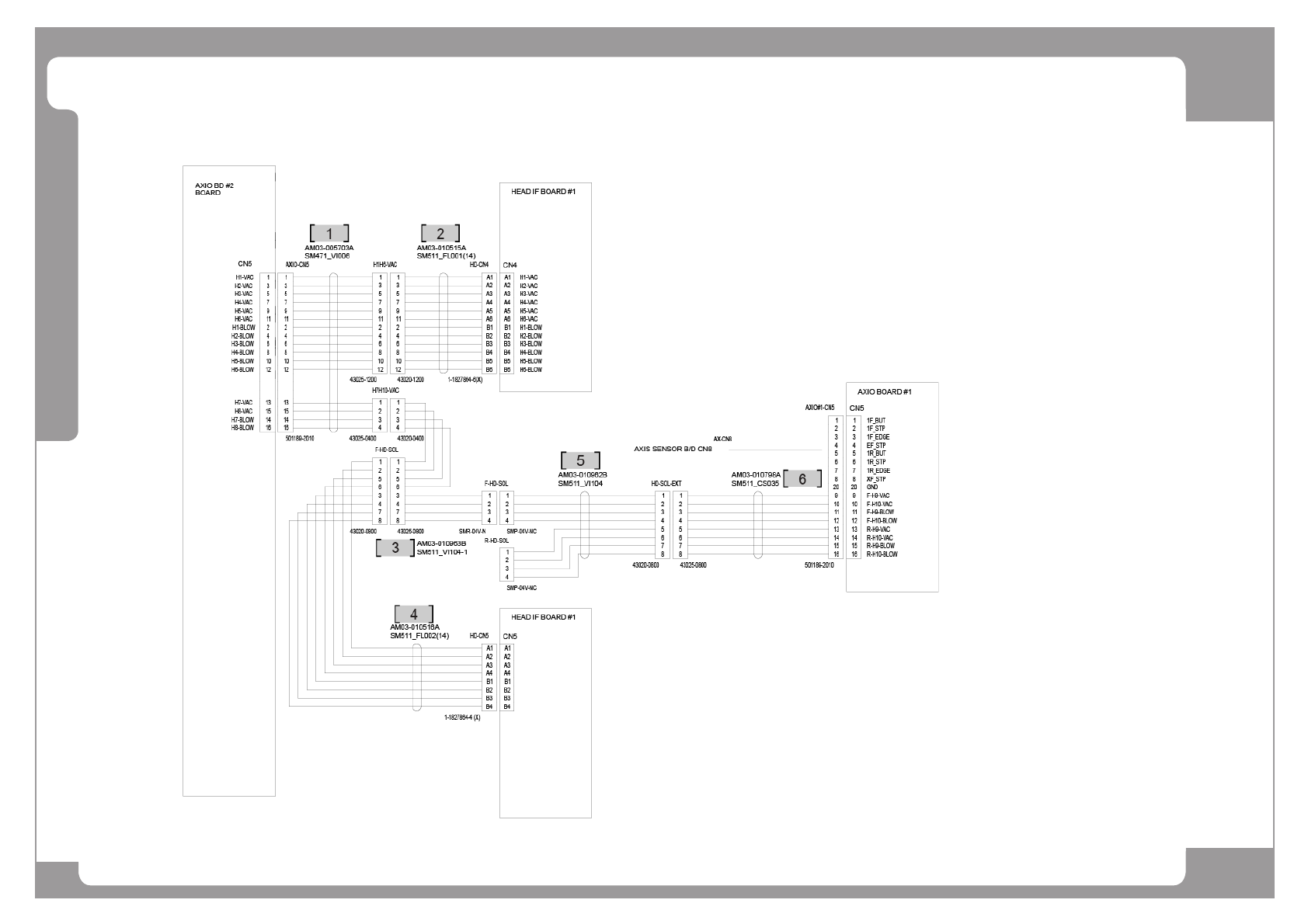

Page
+$1:+$
349
DECAN
S2
Motor IF Board (9/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1
4 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
5 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1
6 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
