Page +$1:+$ 355 DECAN S2 Motor IF Board (12/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1248A CAB LE ASSY -Z56_D RV_COMMAND 1 2 AM03-013438 A CABLE ASSY -SM51 1 FLA T 1 1 AM03-010…
Page
+$1:+$
354
DECAN
S2

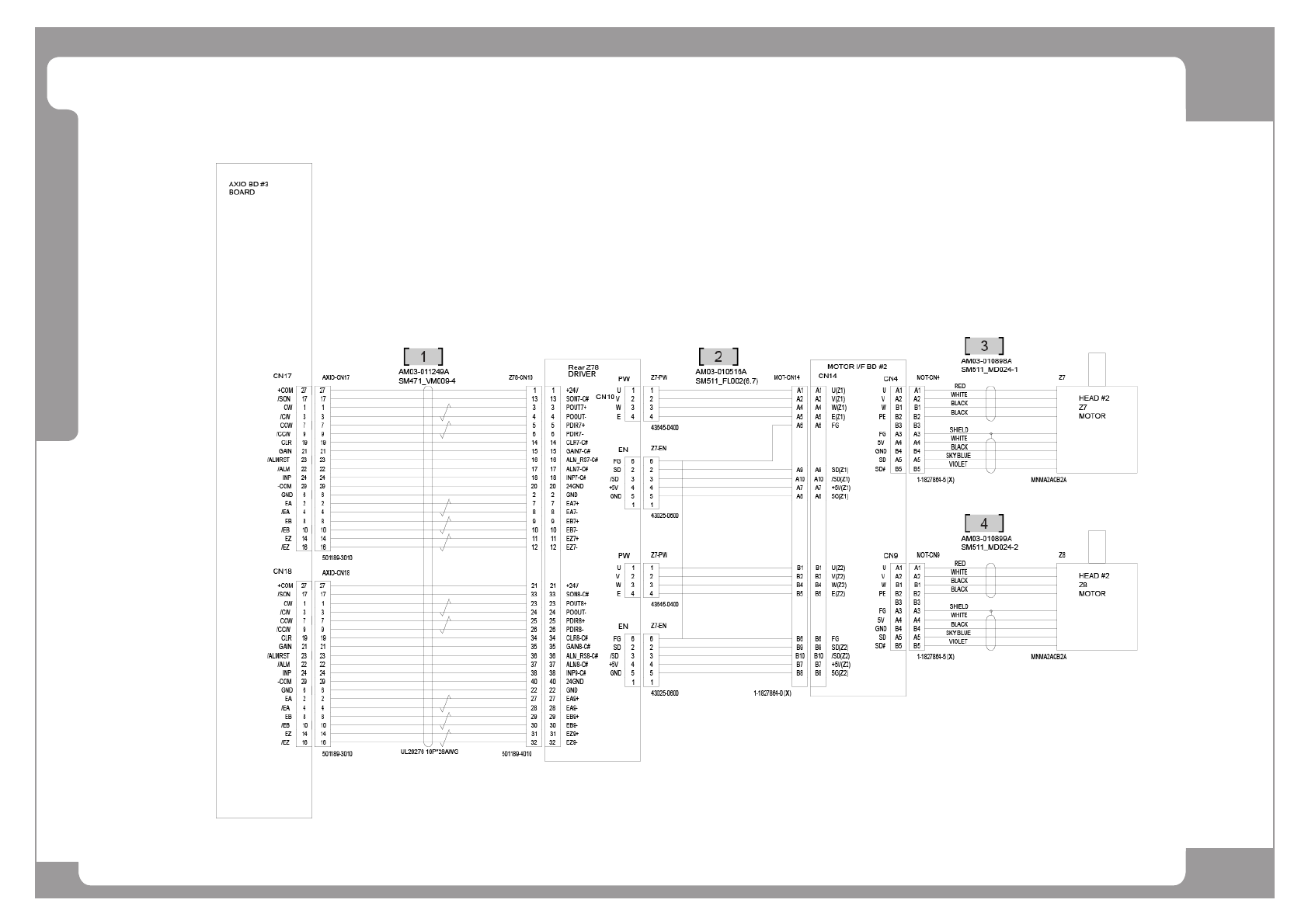

Motor IF Board (12/18)
Page
+$1:+$
355
DECAN
S2
Motor IF Board (12/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011248A CABLE ASSY-Z56_DRV_COMMAND 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-010896A CABLE ASSY-Z5_MOTOR 1
4 AM03-010897A CABLE ASSY-Z6_MOTOR 1
Page
+$1:+$
356
DECAN
S2
Motor IF Board (13/18)
