Page +$1:+$ 32 DECAN S2 Shuttle Conveyor (1/10) 1 2 A 3 Entry Zone Extension Assy Exit Zone Extension Assy
Page
+$1:+$
31
DECAN
S2
Docking Cart (4/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70571021A NEW_BOARD_COVER J70571021A 1
2 J74601002A FEEDER_IO_EXT_INSULATION_PCB J74601002A 1
3 J74601001A FEEDER_IO_INSULATION_PCB J74601001A 1
4 J70570252C CART GRIP 2
5 J7257008B CUSHION-Z[J7257008B] 2
6 EP18-000038 RELAY-LY2N-D2;POWER,DC24V, 36.9mA,10A 2
7 MC14-900026 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2
8 FC15-001209A COVER-LOWER COVER DCN 2
9 MC14-900027 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2
10 J9057179A D/CART VERTICAL GUIDE[J9057179A] 2
AM03-001738C CABLE ASSY-D-CART INNER IF CABLE ASSY 1
AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A
AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1
AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1
AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1
AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1
AM03-001748C CABLE ASSY-D-CART DEVICENET CABLE ASSY 1
Page
+$1:+$
32
DECAN
S2

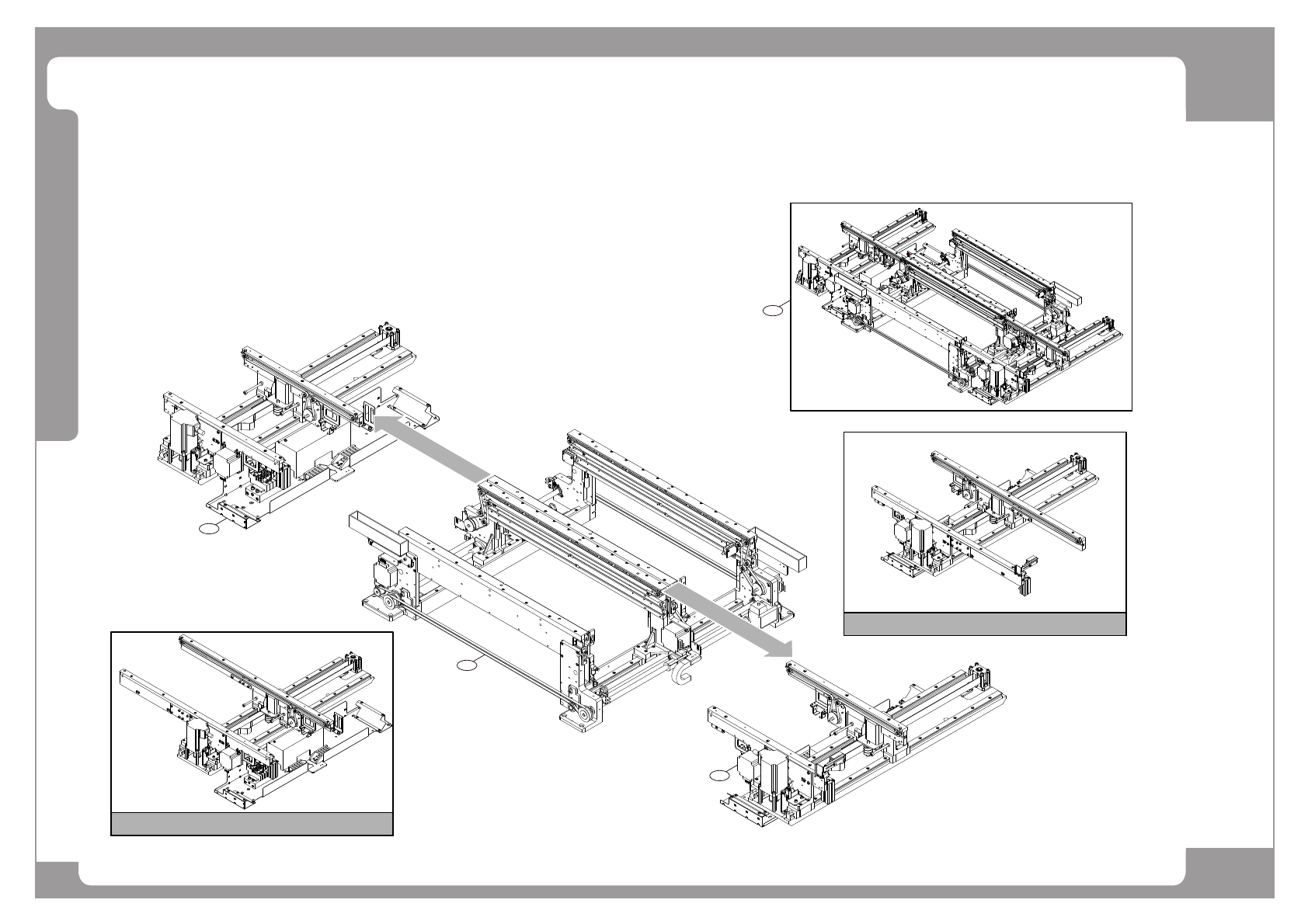

Shuttle Conveyor (1/10)
1
2
A
3
Entry Zone Extension Assy
Exit Zone Extension Assy
Page
+$1:+$
33
DECAN
S2
Shuttle Conveyor (1/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-010310A CONVEYOR_LR_ASSY 1
AM03-011692A ASSY,CONVEYOR-LR_EX_PT 1
AM03-010312A CONVEYOR_LR_EX_ASSY 1
AM03-011694A ASSY,CONVEYOR-RL_EX_PT 1
AM03-010313A CONVEYOR_RL_EX_ASSY 1
1 AM03-011696A ASSY,CONVEYOR-ENTRY_ZONE_PT 1
AM03-010320A CONVEYOR-ENTRY_ZONE_LR_ASSY 1
AM03-011698A ASSY,CONVEYOR-ENTRY_ZONE_EX_PT 1
AM03-010324A CONVEYOR-ENTRY_ZONE_LR_EX_ASSY 1
2 AM03-010588A SM511_WORK_ZONE_ASSY_LR_ASSY 1
AM03-011604A SM511_WORK_ZONE_ASSY_RL_ASSY 1
3 AM03-011697A ASSY,CONVEYOR-EXIT_ZONE_PT 1
AM03-010321A CONVEYOR_EXIT_ZONE_LR_ASSY 1
AM03-011699A ASSY,CONVEYOR-EXIT_ZONE_EX_PT 1
AM03-010325A CONVEYOR_EXIT_ZONE_LR_EX_ASSY 1
