Page +$1:+$ 360 DECAN S2 Motor IF Board (15/18)
Page
+$1:+$
359
DECAN
S2
Motor IF Board (14/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010900A CABLE ASSY-Z9_MOTOR 1
4 AM03-010901A CABLE ASSY-Z10_MOTOR 1
Page
+$1:+$
360
DECAN
S2
Motor IF Board (15/18)

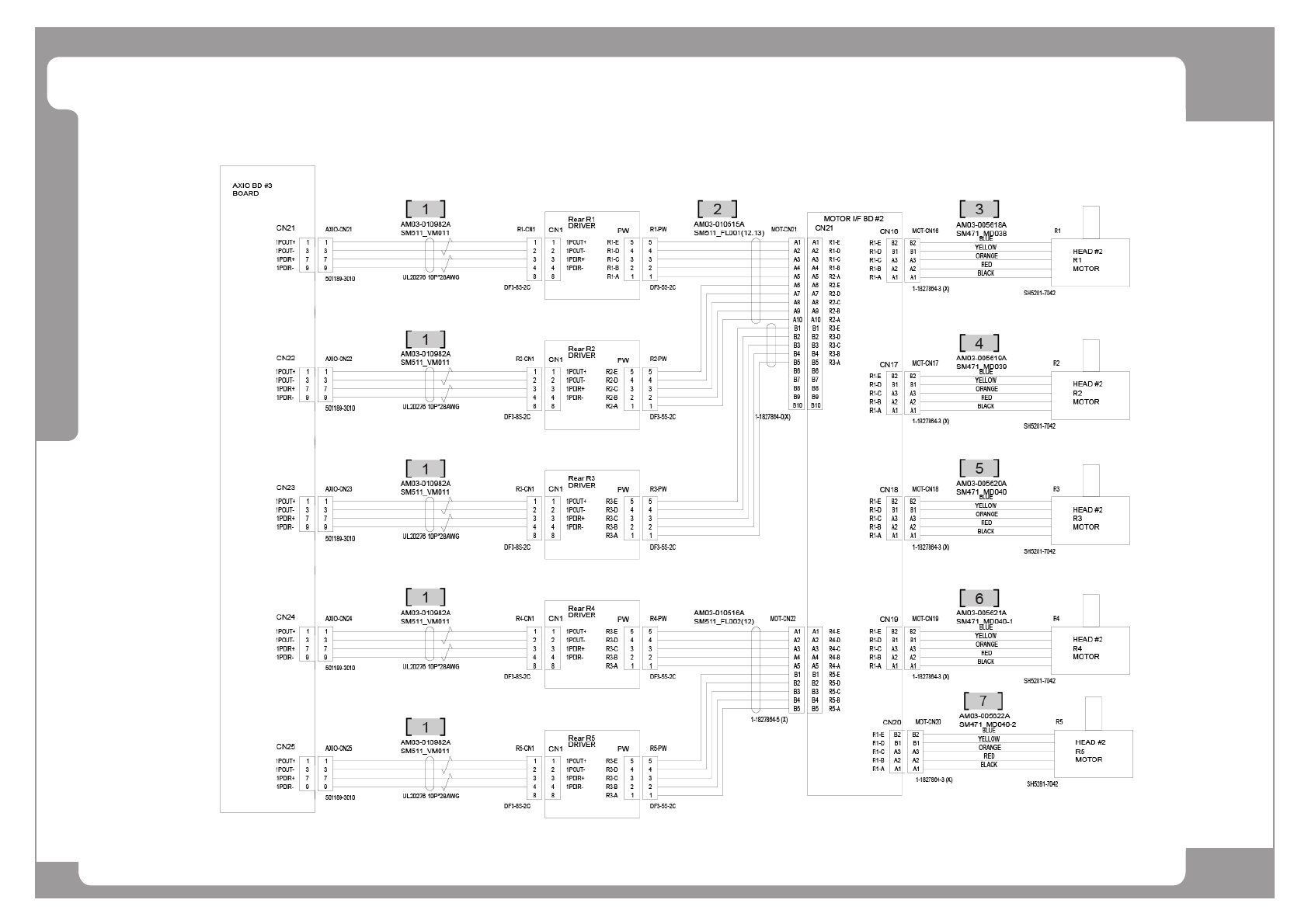

Page
+$1:+$
361
DECAN
S2
Motor IF Board (15/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010982A CABLE ASSY-R1_R2_R3_DRV_COMMAND 5
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-005618A CABLE ASSY-R1_MOTOR 1
4 AM03-005619A CABLE ASSY-R2_MOTOR 1
5 AM03-005620A CABLE ASSY-R3_MOTOR 1
6 AM03-005621A CABLE ASSY-R4_MOTOR 1
7 AM03-005622A CABLE ASSY-R5_MOTOR 1
