Page +$1:+$ 33 DECAN S2 Shuttle Conveyor (1/10) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-010310 A CONV EYOR_LR_ASSY 1 AM03-01 1692A ASSY ,CONVEYOR-LR_ EX_PT 1 AM03-010312A CONVEYOR_LR…
Page
+$1:+$
32
DECAN
S2
Shuttle Conveyor (1/10)
1
2
A
3
Entry Zone Extension Assy
Exit Zone Extension Assy
Page
+$1:+$
33
DECAN
S2
Shuttle Conveyor (1/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-010310A CONVEYOR_LR_ASSY 1
AM03-011692A ASSY,CONVEYOR-LR_EX_PT 1
AM03-010312A CONVEYOR_LR_EX_ASSY 1
AM03-011694A ASSY,CONVEYOR-RL_EX_PT 1
AM03-010313A CONVEYOR_RL_EX_ASSY 1
1 AM03-011696A ASSY,CONVEYOR-ENTRY_ZONE_PT 1
AM03-010320A CONVEYOR-ENTRY_ZONE_LR_ASSY 1
AM03-011698A ASSY,CONVEYOR-ENTRY_ZONE_EX_PT 1
AM03-010324A CONVEYOR-ENTRY_ZONE_LR_EX_ASSY 1
2 AM03-010588A SM511_WORK_ZONE_ASSY_LR_ASSY 1
AM03-011604A SM511_WORK_ZONE_ASSY_RL_ASSY 1
3 AM03-011697A ASSY,CONVEYOR-EXIT_ZONE_PT 1
AM03-010321A CONVEYOR_EXIT_ZONE_LR_ASSY 1
AM03-011699A ASSY,CONVEYOR-EXIT_ZONE_EX_PT 1
AM03-010325A CONVEYOR_EXIT_ZONE_LR_EX_ASSY 1
Page
+$1:+$
34
DECAN
S2

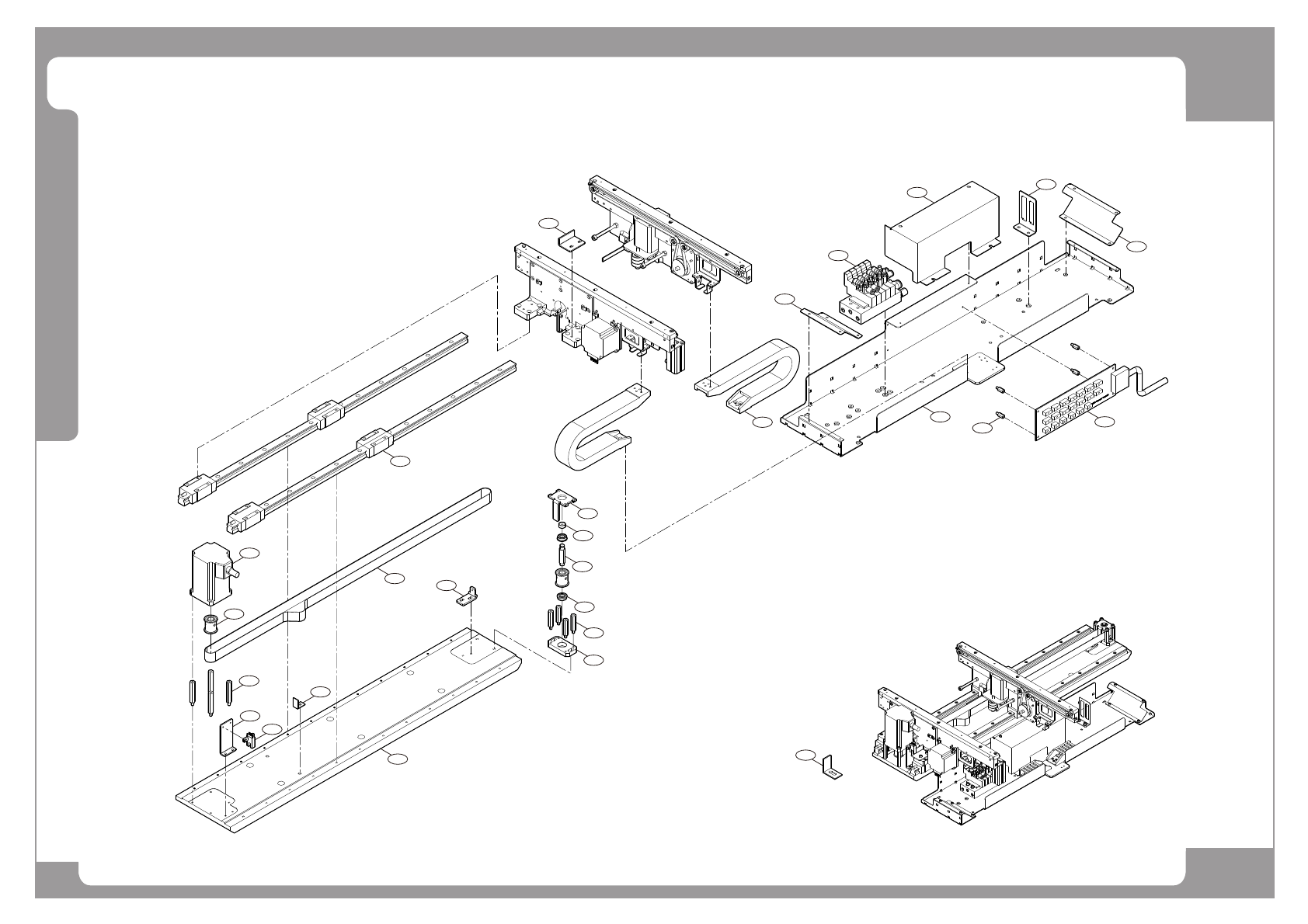

Shuttle Conveyor (2/10) - Entry
20
19
18
21
24
17
22
25
23
16
9
26
2
26
3
4
6
7
1
10
11
12
13
14
15
5
8
