Page +$1:+$ 65 DECAN S2 Full Dual Conveyor (2/12) - Entry NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC05-000339A BASE-SHUTTLE 1 2 FC18-903190 TIE_MOUNT 2 3 MC13-900 069 LM_ GUIDE_SHUTTLE SB…
Page
+$1:+$
64
DECAN
S2

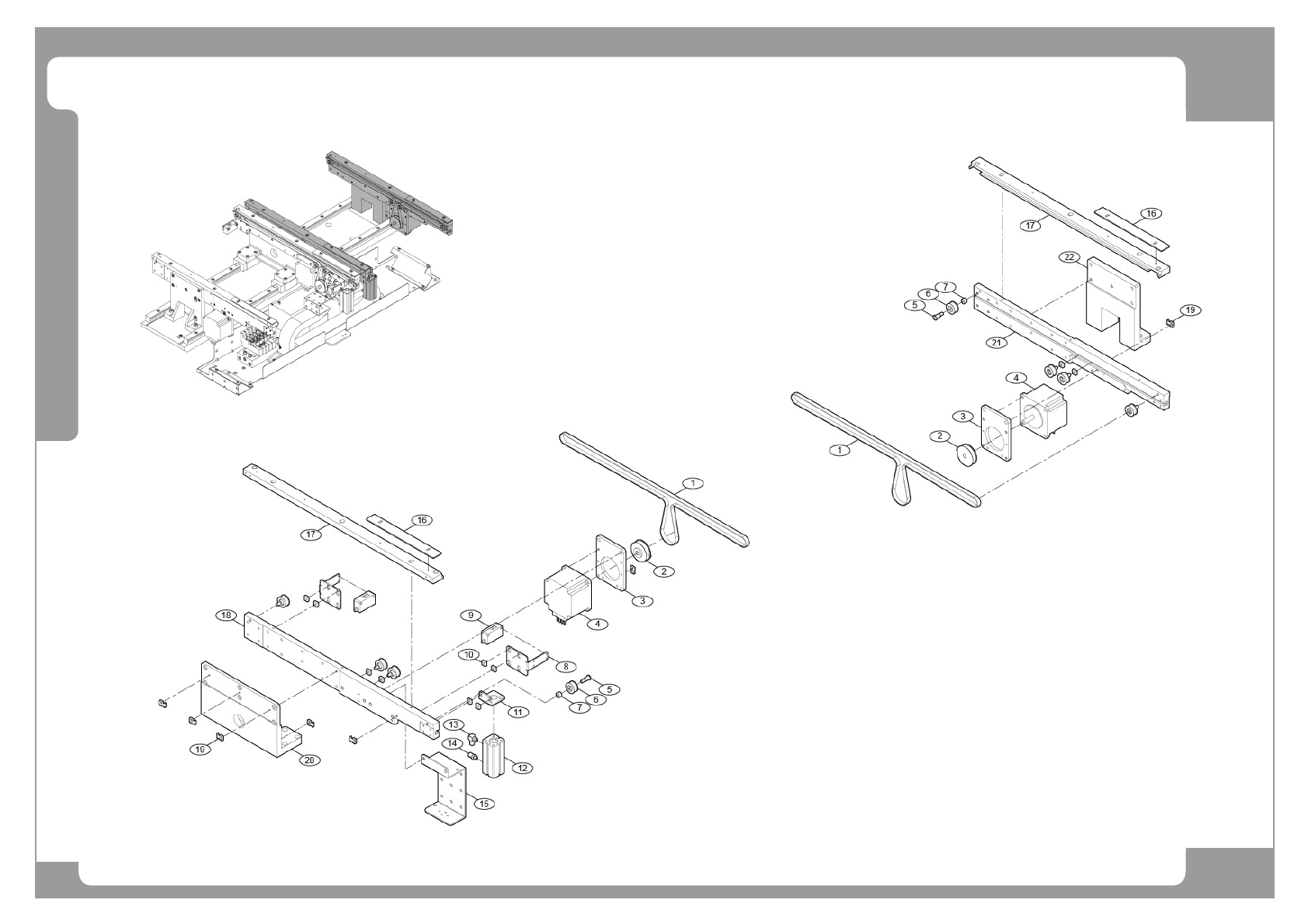

Full Dual Conveyor (2/12) - Entry
Page
+$1:+$
65
DECAN
S2
Full Dual Conveyor (2/12) - Entry
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000339A BASE-SHUTTLE 1
2 FC18-903190 TIE_MOUNT 2
3 MC13-900069 LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N 2
4 EP03-000142 CABLEVEYOR 2
5 HP06-900093 STRAIGHT FITTING 4
6 J70531101A COVER_LEFT 1
7 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1
8 FC15-002453A TOP_COVER_CV 1
9 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A
10 J70531102B COVER_RIGHT_PLATE 1
11 FC30-001653A PLATE-CONVEYOR_UNDER 1
12 FC29-900611 PCB_SUPPORT 4
13 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1
Page
+$1:+$
66
DECAN
S2
Full Dual Conveyor (3/12) - Entry
