Page +$1:+$ 70 DECAN S2 Full Dual Conveyor (5/12) - Exit
Page
+$1:+$
69
DECAN
S2
Full Dual Conveyor (4/12) - Entry
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A
2 FC29-002593A GUIDE_SHUTTLE_PCB 2
3 FC18-903190 TIE_MOUNT 7
4 FC29-002658A STAND-MOVE_RAIL 1
5 FC39-001367A FRAME-FD_SHUTTLE_A 1
6 J7053184A SQUARE NUT M4 10
7 J70531032B ST_SENSOR_BRACKET_2 2
8 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 2
9 J70531039A IDLER_SPACER_45 8
10 J72531001A IDLER_2 8
11 MC19-001112A IDLER SHAFT-S 8 J2101818
12 FC09-003405A BRACKET-MOTOR_A 2
13 FC09-003632C BRACKET-CABLE_FIX_3 1
14 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2
15 MC19-001136A PULLEY_B_M 2 J71531009A
16 MC05-000068A BELT_SHUTTLE_945 2
17 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A
18 HP06-900010 ELBOW FITTING [M-5HLH-4] 1
19 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1
20 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009
21 FC39-001368A FRAME-FD_SHUTTLE_B 1
22 FC29-002657A STAND-FIX_RAIL 1
Page
+$1:+$
70
DECAN
S2
Full Dual Conveyor (5/12) - Exit
Page
+$1:+$
71
DECAN
S2

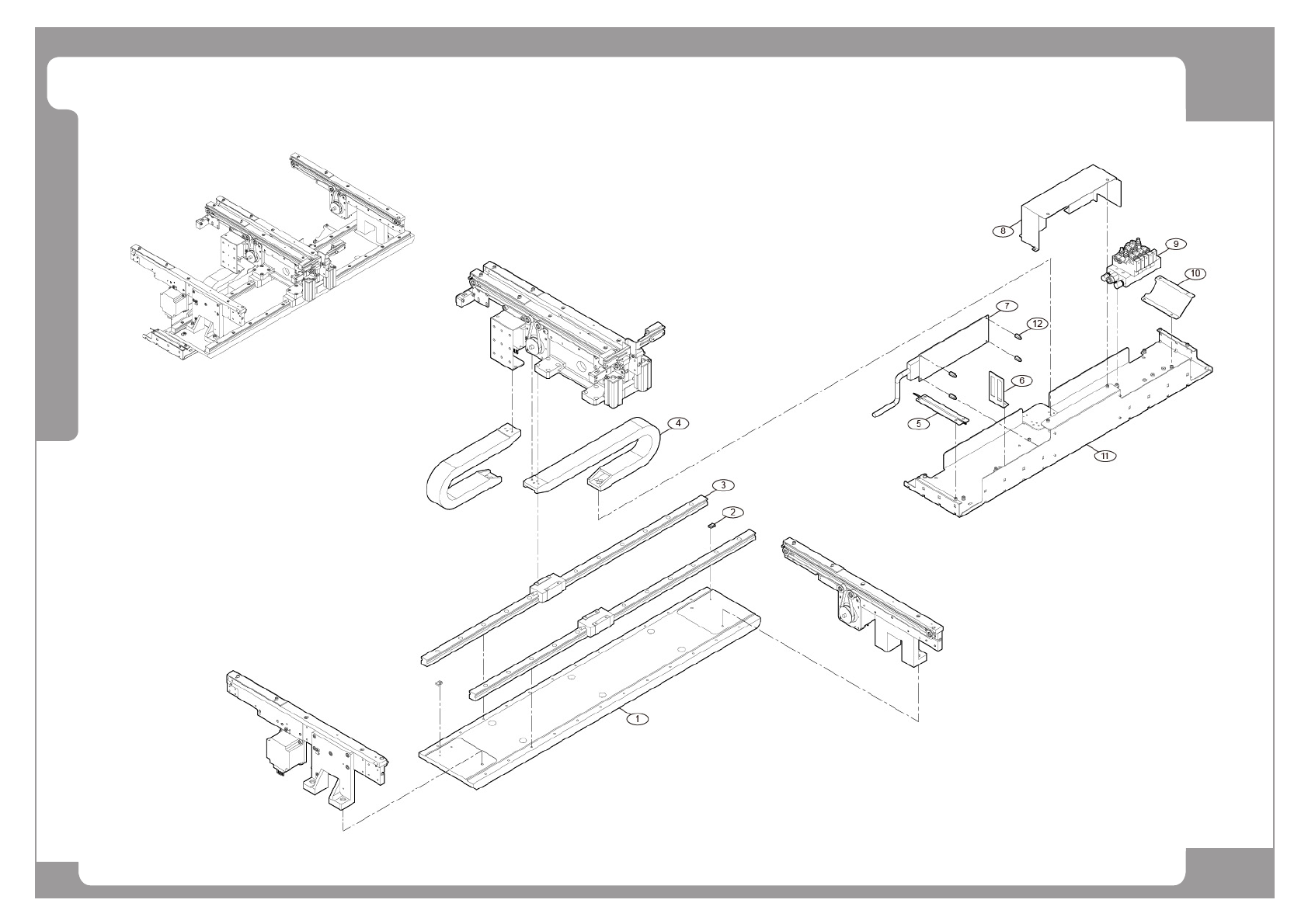

Full Dual Conveyor (5/12) - Exit
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000339A BASE-SHUTTLE 1
2 FC18-903190 TIE_MOUNT 2
3 MC13-900069 LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N 2
4 EP03-000142 CABLEVEYOR 2
5 J70531102B COVER_RIGHT_PLATE 1
6 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A
7 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1
8 FC15-002453A TOP_COVER_CV 1 J70531105A
9 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1
10 J70531101A COVER_LEFT 1
11 FC30-001653A PLATE-CONVEYOR_UNDER 1
12 FC29-900611 PCB_SUPPORT 4
