74
DECAN
S2
Full Dual Conveyor (7/12) - Exit
Page
+$1:+$
75
DECAN
S2
Full Dual Conveyor (7/12) - Exit

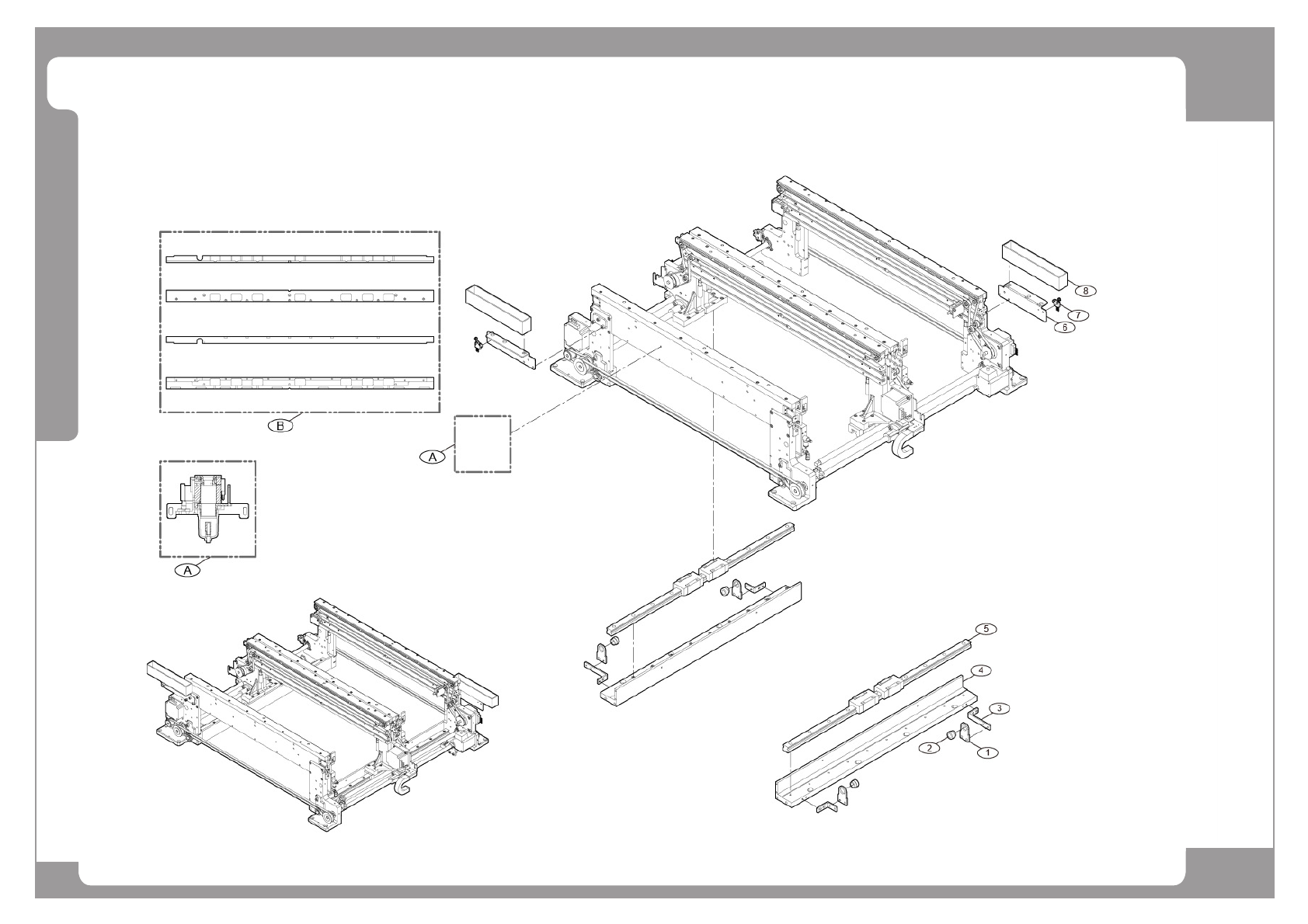

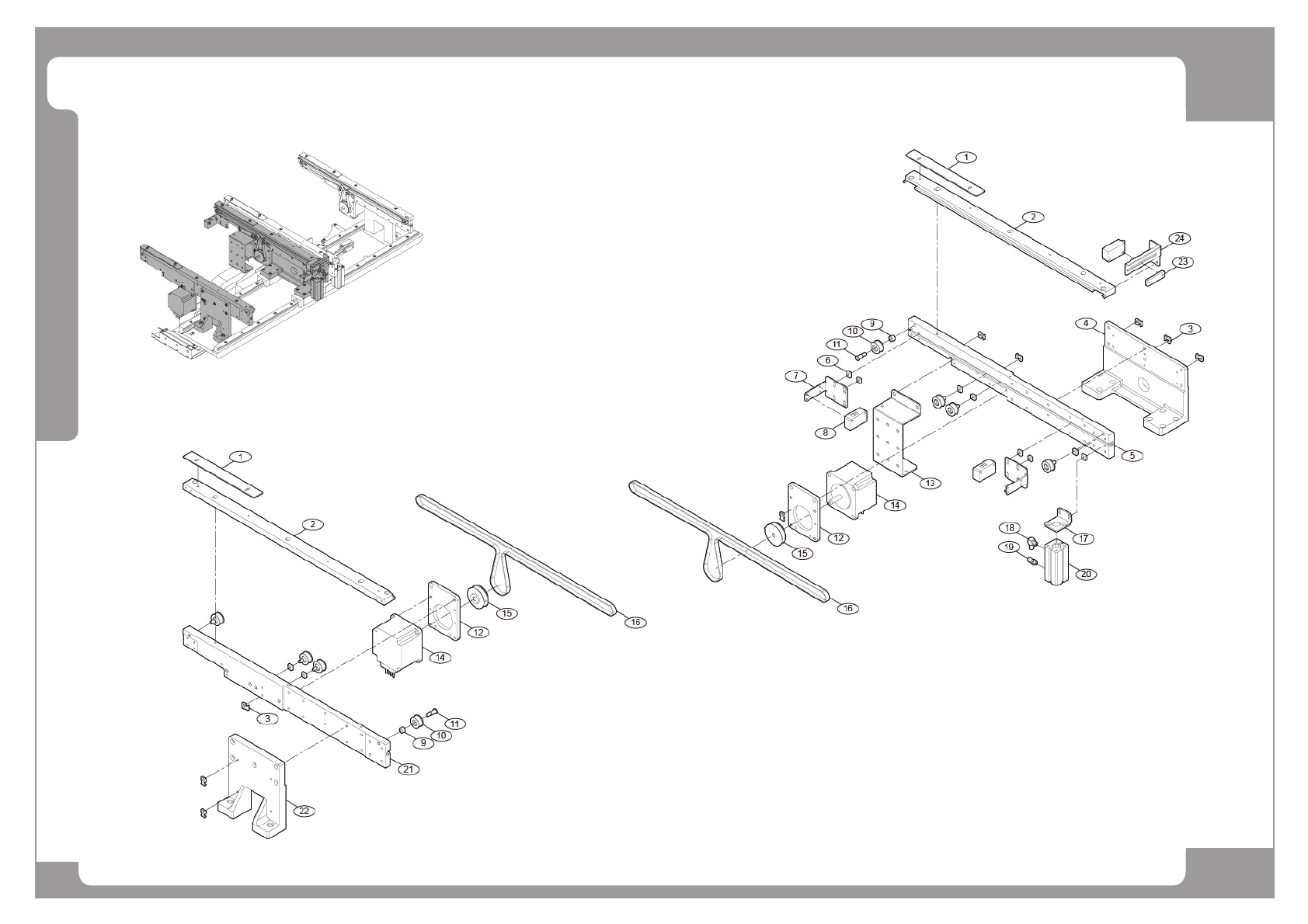

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A
2 FC29-002593A GUIDE_SHUTTLE_PCB 2
3 FC18-903190 TIE_MOUNT 8
4 FC29-002658A STAND-MOVE_RAIL 1
5 FC39-001368A FRAME-FD_SHUTTLE_B 1
6 J7053184A SQUARE NUT M4 8
7 J70531032B ST_SENSOR_BRACKET_2 2
8 AM03-019721A CABLE ASSY-EX_CV_F_R_PCB_SEN_FULL 3
9 J70531039A IDLER_SPACER_45 8
10 J72531001A IDLER_2 8
11 MC19-001112A IDLER SHAFT-S 8 J2101818
12 FC09-003405A BRACKET-MOTOR_A 2
13 FC09-003467D BRACKET-CABLE_FIX_2 1 FC09-003467A/ FC09-003467C
14 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2
15 MC19-001136A PULLEY_B_M 2 J71531009A
16 MC05-000068A BELT_SHUTTLE_945 2
17 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A
18 HP06-900010 ELBOW FITTING [M-5HLH-4] 1
19 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1
20 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009
21 FC39-001367A FRAME-FD_SHUTTLE_A 1
22 FC29-002657A STAND-FIX_RAIL 1
23 FC30-002522A BD_OUT_SENSOR_GUIDE 1 J70531607A
24 FC09-003407A BRACKET-BD_OUT_2 1
