Page +$1:+$ 94 DECAN S2 Single Conveyor (2/4)
Page
+$1:+$
93
DECAN
S2
Single Conveyor (1/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A OPTION
1 FC09-004238A BRACKET-SENSOR BKT 1
2 J7051113A CABLE DUCT-U-F[J7051113A] 1
Page
+$1:+$
94
DECAN
S2
Single Conveyor (2/4)
Page
+$1:+$
95
DECAN
S2
Single Conveyor (2/4)

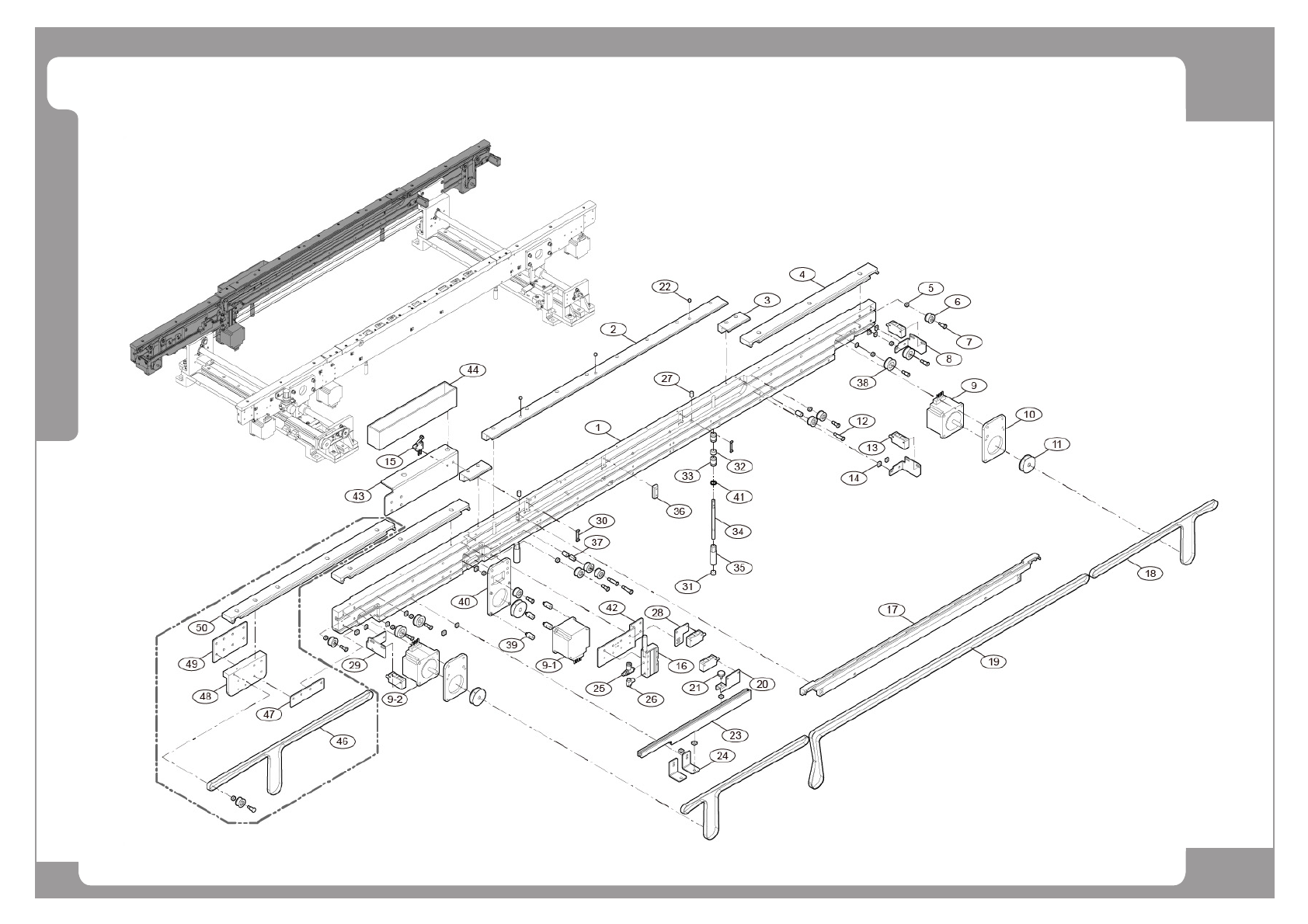

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC39-001579A FRAME-FRONT_CONVEYOR_S 1
2 J70531210A PCB-GUIDE-FC 1
3 J70531761A PCB_GUIDE_FC_S 1
4 FC29-003067A GUIDE-PCB_END_S 1
5 FC18-001478A IDLER SPACER-S 9 J7053047A
6 J7253007A IDLER-2 8
7 J7053009A IDLER-SHAFT-S2 9
8 J70531100B BRACKET_SENSOR_IN 2
9 J90831431B_AS CONV_BELT4_STEP_MOTOR_ASSY 1
9-1 AM03-001513A WORK_BELT2_STEP_MOTOR_ASSY 1
9-2 J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1
10 J70531106A BRACKET_BELT_MOTOR_S 2
11 J7153111A PULLEY_B_M_7MM 3
12 J7053770A IDLER-SHAFT-M 3
13 J90831402C CONV_PCB_SENSOR_CABLE_ASSY_LONG 5
14 J7053184A SQUARE NUT M4 16
15 EP20-900101 SWITCH_CLAMP EP20-900101 1
16 HP03-900036 CYLINDER 2
17 J71531045B CLAMP_FRONT_FRAME 1
18 MC05-000254 BELT-MAM-5P-860-7W 2
19 MC05-900130 FLAT BELT-WORK_FIX_750 1
20 J70531087A Q_SENSOR_BKT 1
21 J7053689A QUICK-SENSOR-KNOB 1
22 J7153373A FIDUCIAL_DISK 3
23 RM01-001087A RAIL_SENSOR_S 1
24 J70531086A BRACKET_RAIL 2
25 HP14-900083 THROTTLE VALVE(ELBOW) 1
26 HP06-900010 ELBOW FITTING 1
27 FC29-004427A STOPPER 2 2 J7253009B
28 J70531765A WORK_SENSOR_BRAKET 1
29 J70531088B WORK_SENSOR_BRACKET 1
