User’s Manual SIPLACE HS-50 4 Placement Functions Software Vers ion SR.501.xx E dition 01/99 4.1 Setup Display 129 Å Sele ct the entr y in the setup table for the t rack for w hich you want to execute a compo nent verifi…
4 Placement Functions User’s Manual SIPLACE HS-50
4.1 Setup Display Software Version SR.501.xx Edition 01/99
128
– &2%&
This column shows whether or not a component barcode has been specified for the corre-
sponding component in the setup using the "***" or "-" symbol.
A barcode is specified for the component.
The "Comp. verification with barcode ..." button is active when you click
on these lines in the table (see Section 4.1.2
).
- No barcode is specified for the component.
(The "Comp. verification with barcode ..." button is not active).
&RPSRQHQW9HULILFDWLRQ:LWK%DUFRGH
You prevent a track from being refilled with the wrong components with this function when re-
filling components with a specified component barcode.
The operator reads the track barcode and then the component barcode with the barcode rea-
der (see Chapter 12) . The two barcode assignments are compared with the help of the SC
software. Incorrect assignments are not accepted.
5HTXLUHPHQWV
– The barcode reader must be connected to the station computer.
– The "Track BC" option must be activated on the line computer (in the configuration editor)
for the corresponding station. (Only then will the "Component verification with barcode" op-
tion be displayed in the machine options on the station computer).
– The barcodes for the corresponding components must have been entered on the line com-
puter with the help of the component editor.
(A maximum of 6 different barcodes can be entered for a component at the present time).
– The "Component verification with barcode" option must be active in the machine options.
3URFHGXUH
Å Open the 2SWLRQVmenu in the Main view and click on the 0DFKLQHRSWLRQVmenu op-
tion. The "Machine options" window is opened (see Chapter 3).
Å Activate the checkbox for "Component verification with barcode".
Å Click on $SSO\. The window closes.
Å Switch the user interface to the "Setup location x" view.
Å Click on the icon in the toolbar for the desired location (see Fig. 4.1 - 1).
User’s Manual SIPLACE HS-50 4 Placement Functions
Software Version SR.501.xx Edition 01/99 4.1 Setup Display
129
Å Select the entry in the setup table for the track for which you want to execute a component
verification (or read the track barcode on the barcode bar using the barcode reader). The
line selected is highlighted in light blue in the table.
Å Click on the &RPSYHULILFDWLRQZLWKEDUFRGH button

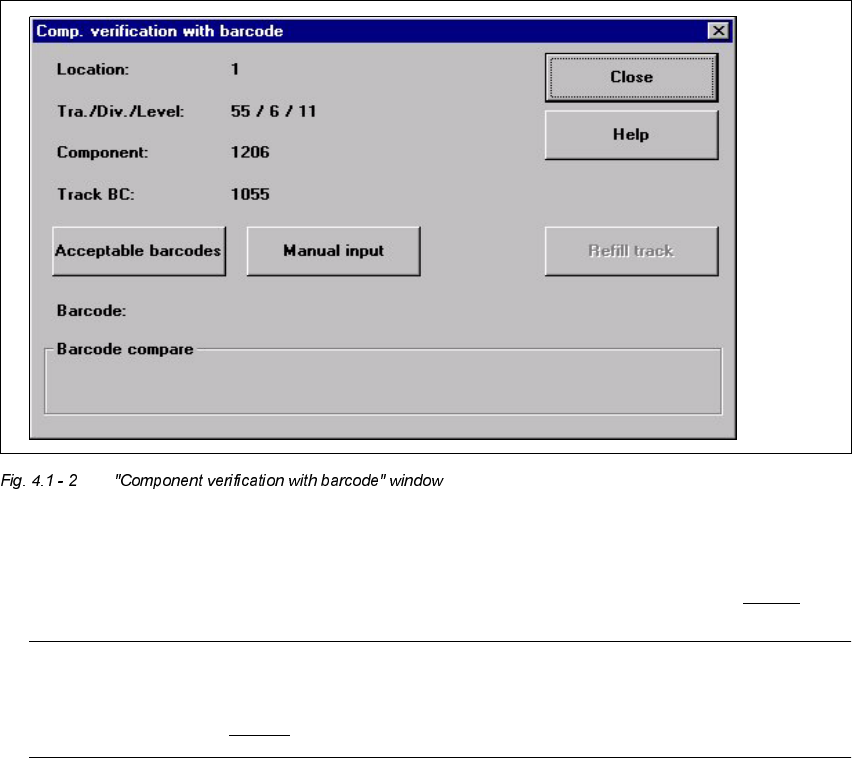

The following window is opened. The data for the selected track is displayed so you can
check the data.
Å Read the component barcode in from the corresponding component reel with the
barcode reader. The barcode read in is displayed in the "Barcode:" line (see Fig. 4.1 - 3
).
NOTE
If the component barcode cannot be read in, then enter it manually. The procedure is
described in Section 4.1.2.2.
4 Placement Functions User’s Manual SIPLACE HS-50
4.1 Setup Display Software Version SR.501.xx Edition 01/99
130
$FFHSW DEOH%DUFRGHV
The list of barcodes (max. of 6) that are known for the component in the selected track is dis-
played with this function.
Å Click on the $FFHSWDEOHEDUFRGHVbutton
The following selection box is opened.
Å Click on the &ORVH button. The selection box is closed.
The barcode read in using the barcode reader is compared to the possible barcodes.
The positions hidden due to the filter (marked by a ¤) will not be used for the comparison.
The results of the barcode comparison will be displayed in the display field of the "Compo-
nent verification with barcode" window (see the following examples).
7KHEDUFRGHVPDWFK
7KHEDUFRGHVGRQRWPDWFK
