4 Placement Functions User’s Manual SIPLACE HS-50
4.2 Error Display Software Version SR.501.xx Edition 01/99
136
  0HDQLQJRIWKH(QWULHVLQWK H 7DEOHIRU7UDFN(UURUV
– 1R
The error number of the corresponding error is entered in this column.
– &PS1DPH
The name of the component for which the error has occurred is entered here.
– /RF
The number of the location for which the corresponding component is set up is entered in
this column.
– 7U'7
The number of the track and of the feeder division for the corresponding component is en-
tered here.
The entry for "T" is irrelevant for model SIPLACE HS-50 machines.
(Only valid for automatic machines with wafflepack changers)
– 6HJ
The number of the segment that was used to insert the component is entered here.
– (
This column displays how often the corresponding error has occurred until now.
– 7H[W
The error that has occurred is described in this column.
User’s Manual SIPLACE HS-50 4 Placement Functions
Software Version SR.501.xx Edition 01/99 4.2 Error Display
137
 0DFKL QH(U URUV9LHZ
 0HDQLQJRIWKH(QWULHVLQWKH7DEOHIRU0DFKLQH(UURUV
– 1R
Error number of the corresponding error
– 6HJ
Number of the segment (see also Section 4.2.2.1
)
– '(9
Short description of the sender of the error
(e.g. "MC1" of an error has occurred on gantry 1)
– (
Error counter (see also Section 4.2.2.1
)
– 7H[W
Description of the corresponding error
4 Placement Functions User’s Manual SIPLACE HS-50
4.2 Error Display Software Version SR.501.xx Edition 01/99
138

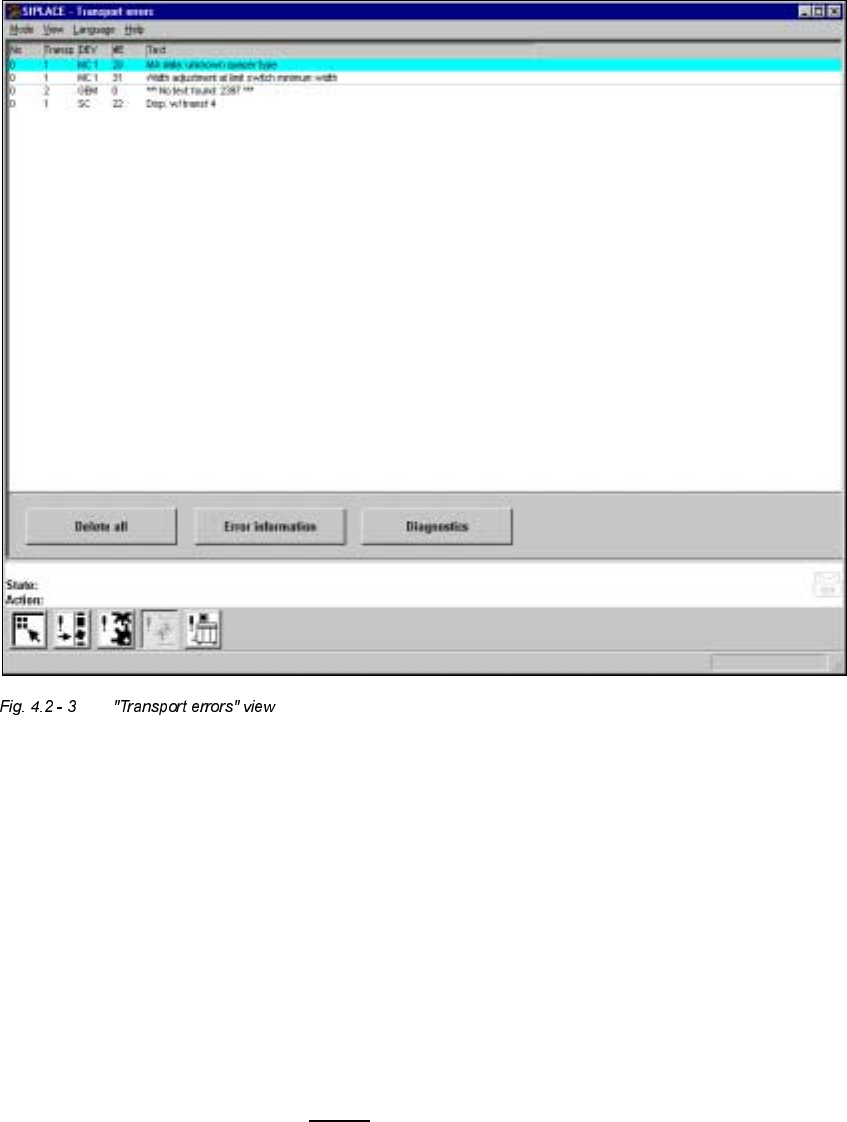

 7UDQVSRUW(UURUV9 LHZ
 0HDQLQJRIWKH(QWULHVLQWKH7DEOHIRU7UDQVSRUW(UURUV
– 1R
Error number of the corresponding error.
– 7UDQVS
The number of the transport in which the error has occurred is entered here.
1 = Transport 1 (Standard transport or right transport track for dual transports)
2 = Transport 2 (Left transport track for dual transports)
– '(9
Short description of the sender of the error
– (
Error counter (see also Section 4.2.2.1
).
– 7H[W
Description of the corresponding error.
