User’s Manual SIPLACE HS-50 4 Placement Functions Software Vers ion SR.501.xx E dition 01/99 4.3 Feeders 145 2PLW&RPSRQHQ W V9LHZ With the h elp of the "Omi t compone nts" functio n in this view…
4 Placement Functions User’s Manual SIPLACE HS-50
4.3 Feeders Software Version SR.501.xx Edition 01/99
144
5HILOOLQJ(PSW\7UDFNV
Å Select the entry in the table or the track that is to be confirmed as being "refilled". The line
selected is highlighted in light blue in the table and the "Selected track" button is active.
Å Click on the 6HOHFWHGWUDFNbutton when the feeder in this track has been refilled with com-
ponents.
The track is then considered full and the entry is deleted from the list of empty tracks.
The "Selected track" button is not active thereafter.
5HILOOLQJ$ OO(PSW\7UDFNVRID/RFDWLRQ
Å Click on the button for the location that is to be confirmed as being "refilled", e.g. /RFDWLRQ
.
All tracks of this location are then considered refilled and the corresponding entries for the
empty tracks in this location are deleted from the list of empty tracks.
The button for the location is not active thereafter.
5HILOOLQJ(PSW\7UDFN:KHQWKH&RPSRQHQW9HULILFDWLRQ:LWK%DUFRGH2SWLRQLV
$FWLYH
When the "Component verification with barcode" option is active, then empty tracks can nor-
mally only be confirmed as having been "refilled" in the manner described in Section 4.3.1.5
.
The tracks containing components without
component barcodes are an exception. You can
manually "refill" here even if the "Component verification with barcode" option is active.
Å Select the entry in the table (see Fig. 4.3 - 2) for an empty track that contains components
without
barcodes (see the note on page 4 - 143).
The "Selected track" button is active.
Å Click on the 6HOHFWHGWUDFN button when the feeder in this track has been refilled.
The "Selected track" button is not active thereafter.
User’s Manual SIPLACE HS-50 4 Placement Functions
Software Version SR.501.xx Edition 01/99 4.3 Feeders
145
2PLW&RPSRQHQWV9LHZ
With the help of the "Omit components" function in this view, you can omit specific compon-
ents from selected tracks when inserting components in the current PCB.
This is necessary, for example, when components have not been correctly inserted in the first
PCB of a new cluster. The components placed under "Omit components" are then ignored in
all tracks containing these components when inserting components into the current PCB. The
incompletely populated PCBs are then transported in the output conveyor and must be remo-
ved by hand.
After the PCB has been removed, the "Omit components" setting is reset for the components
not inserted, and they will then be used to populate the next PCB.
Å Click on the icon.

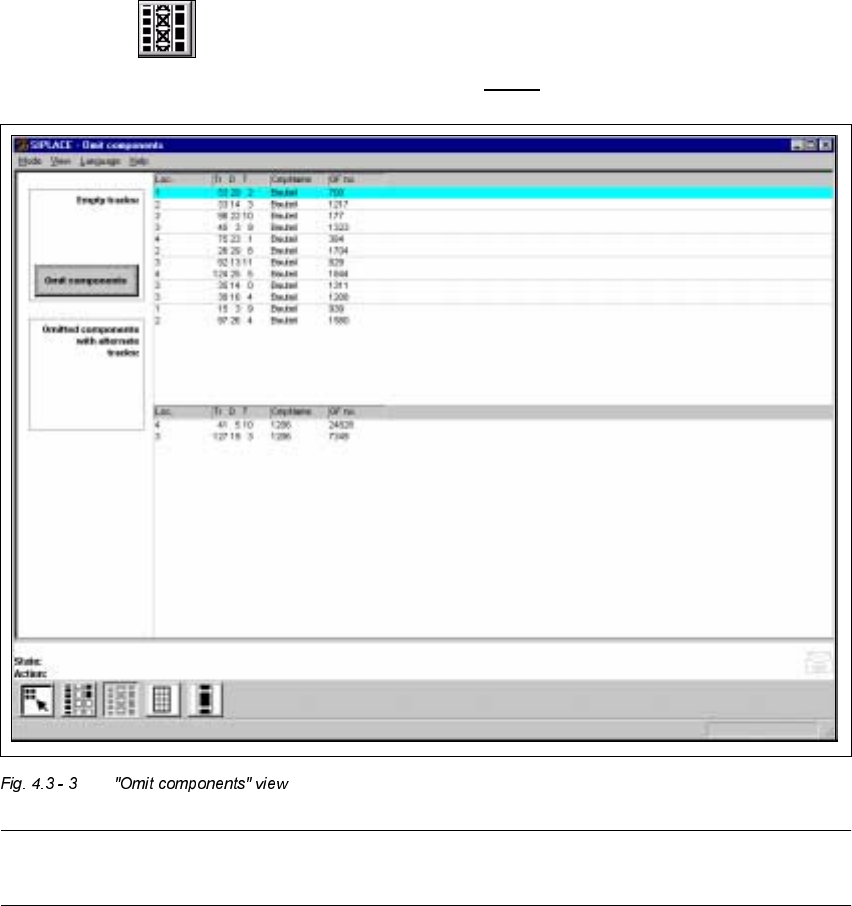

The "Omit components" view is displayed (see Fig. 4.3 - 3
).
NOTE
The "Omit components" function cannot be executed in the "Operator" access level.
4 Placement Functions User’s Manual SIPLACE HS-50
4.3 Feeders Software Version SR.501.xx Edition 01/99
146
0HDQLQJRIWKH(QWULHVLQWKH7DEOHV RIWKH2P LW&RPSRQHQWV9LHZ
– /RF
Number of the location
– 7U'7
Number of the track and of the feeder division
The entry for "T" is irrelevant for model SIPLACE HS-50 machines.
(Only valid for automatic machines with wafflepack changers)
– &PS1DPH
Name of the component
– *)QR
Number of the package form
2PLW&RPSRQHQW
Å Select the entry for the component that is to be omitted in the "Empty tracks" table. The line
selected is highlighted in light blue in the table.
The "Omit components" button is active.

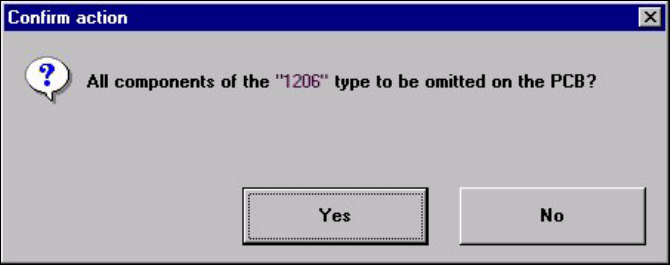

Å Click on the 2PLWF RPSRQH QWVbutton. The following selection box is opened.
Å Confirm the query with <HV.
The entries for all tracks whose feeders contain the components that are not to be used to
populate the current PCB are displayed in the "Omitted components with alternate tracks:"
table.
