User’s Manual SIPLACE HS-50 5 Single Functions Software Version S R.501.xx Edition 01/99 5.2 Single functions, Gantry 161 )XQFWLRQV In the "Noz zle offset" screen only the "Meas ure" but ton …
5 Single Functions User’s Manual SIPLACE HS-50
5.2 Single functions, Gantry Software Version SR.501.xx Edition 01/99
160
1R]]OHRIIVHW VFUHHQ
Å In the current screen for the single functions for Gantry x, click the symbol .

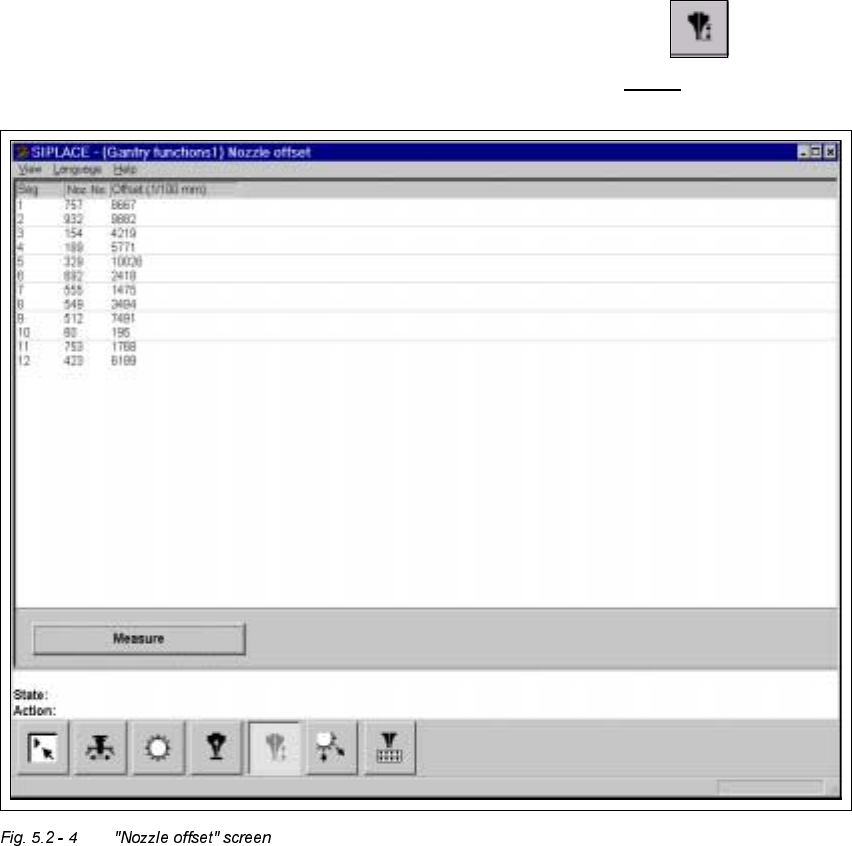

The user interface is switched to the "Nozzle offset" screen (see Fig. 5.2 - 4
).
User’s Manual SIPLACE HS-50 5 Single Functions
Software Version SR.501.xx Edition 01/99 5.2 Single functions, Gantry
161
)XQFWLRQV
In the "Nozzle offset" screen only the "Measure" button is available. This is used to start a
evaluation of the nozzle height for all nozzles.
0HDVXUH
When this function is activated, the gantry moves the placement head to a defined position
above the board conveyor. The z-axis is lowered until the nozzle touches the conveyor, the
procedure is then repeated for each nozzle. In this way, you can measure the height of each
nozzle.
The gantry then returns to its starting position.
Å Click the 0HDVXUH button.
This starts the procedure used to measure nozzle height.
The values determined are displayed in the column "Offset (1/100 mm)" for each of the
nozzles. These values can, for example, be used to determine whether the nozzle on a par-
ticular segment broken.
5 Single Functions User’s Manual SIPLACE HS-50
5.2 Single functions, Gantry Software Version SR.501.xx Edition 01/99
162
1R]]OHFRQILJXUDWLRQUHY ROY H UKHDGVFUHHQ
Å In the current screen for the single functions for Gantry x, click the symbol .
The user interface is switched to the "Nozzle configuration revolver head" screen (see Fig. 5.2
- 6).
.H\WR)LJ
(1) The entry for the segment currently located in the changeover position is highlighted in
light blue.
(2) The arrow points to the number of the segment which is in the changeover position.
1 2
