5 Single Functions User’s Manual SIPLACE HS-50
5.3 Single functions, Transport Software Version SR.501.xx Edition 01/99
170
 6LQJOHIXQFWLRQV7UDQVSRUW
NOTE
The travel functions of the x or y axis can only be carried out when the machine cover is
closed. To execute this function, press the start button.
As a rule, the gantries only travel slowly. The revolver head is set to travel slowly.
Å On the tool bar in the main view, click the symbol which represents the transport you want
to test the functions of (or select the corresponding menu item from the "View" menu, e.g.
"Transport 1" for Transport 1).
NOTE
When dual transport is installed and available in the machine options, the single functions
can be called for either the right-hand transport (Transport 1) or the left-hand transport
(Transport 2). The functions are identical for both right and left. The symbols used to call
the single functions are marked with the number which corresponds to the transport side.
Example for Transport 1 (= right-hand transport or single transport).

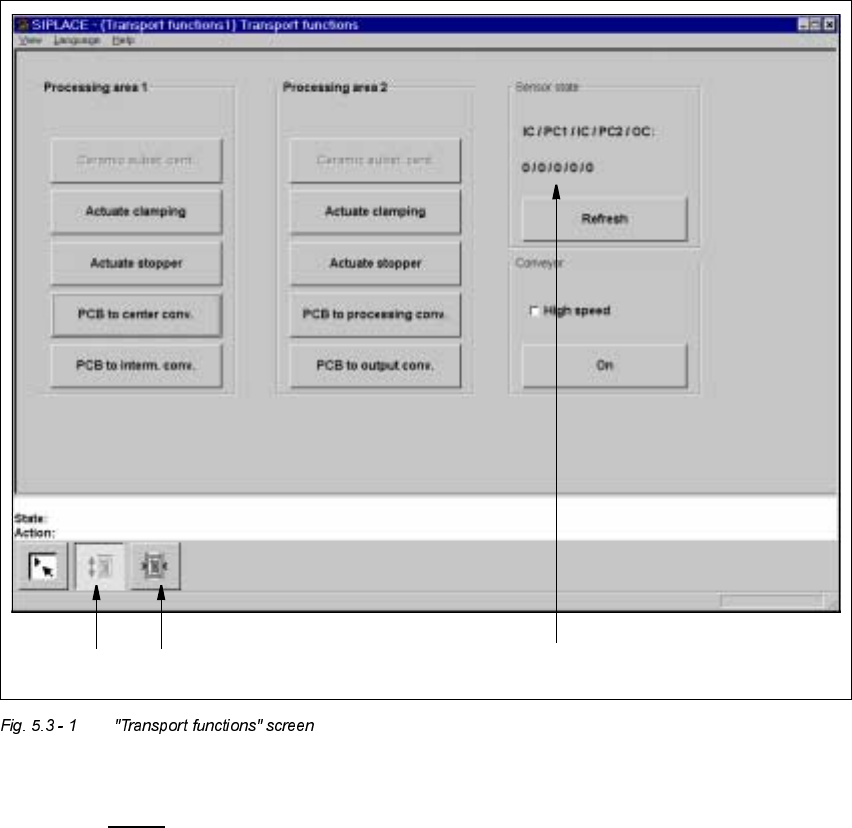

The user interface is switched to the "Transport functions" screen of the selected transport
(see Fig. 5.3 - 1
).
User’s Manual SIPLACE HS-50 5 Single Functions
Software Version SR.501.xx Edition 01/99 5.3 Single functions, Transport
171
 7UDQVSRUWIXQFWLRQVVFUHHQ
The transport functions are used for checking and adjusting the functional modules of the
board conveying systems.
.H\WR)LJ
(1) Functions for the board conveying systems
(2) Functions for adjusting the transport conveyor width
(3) Functions to display state of the ultrasonic sensors
12
3
5 Single Functions User’s Manual SIPLACE HS-50
5.3 Single functions, Transport Software Version SR.501.xx Edition 01/99
172
 )XQFWLRQV
&HUDPLFVXEVWFHQW
NOTE
The ceramic substrate centering function can only be activated if the "Ceramic substrate center-
ing" option is installed and entered in the machine options.
This function can be found in both "Processing area 1" and "Processing area 2" and is used
to check the centering (clamping) of ceramic substrate for each of the processing conveyors.
Å Click the 3&%WRSURFHVVLQJFRQYbutton in "Processing area 1".
The ceramic substrate is moved to processing conveyor 1.
Å Click the &HUDPLFVXEVWFHQWbutton in "Processing area 1".
The ceramic sustrate is centered (clamped).
Å Click the &HUDPLFVXEVWFHQWbutton again.
The centering is released again.
Å Click the 3&%WRSURFHVVLQJFRQYin "Processing area 2".
The ceramic substrate is moved to processing conveyor 2.
Å Click the &HUDPLFVXEVWFHQWbutton in "Processing area 2".
The ceramic sustrate is centered (clamped).
Å Click the &HUDPLFVXEVWFHQWbutton again.
The centering is released again.
$ FWXDWHFODPSLQJ
This function is available for both "Processing area 1" and "Processing area 2" and can be used
to check board clamping for the corresponding processing conveyors.
Å Use the 3&%WRSURFHVVLQJFRQY  function in "Processing area 1" to move the board to
processing conveyor 1.
Å Click the $ FWXDWHFODPSLQJbutton in "Processing area 1".
The board is clamped to processing conveyor 1.
Å Click the $ FWXDWHFODPSLQJbutton again.
The clamping is released again.
Å Use the 3&%WRSURFHVVLQJFRQY  function in "Processing area 2" to move the board to
processing conveyor 2 and check the board clamping for this area as described above.
