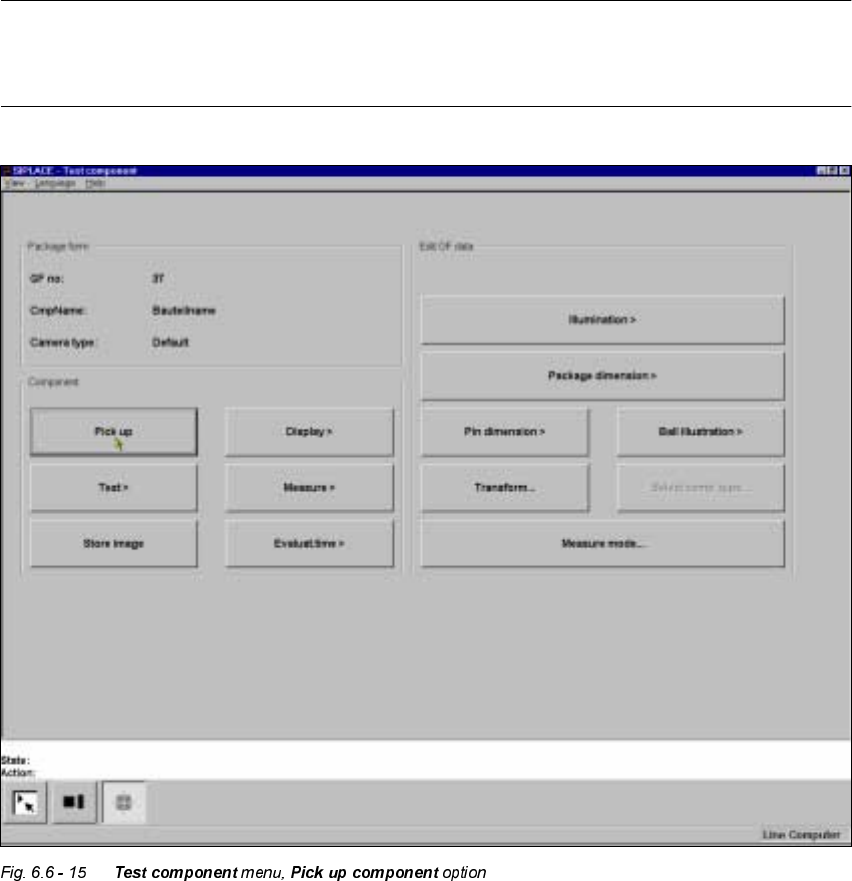

3LFN8S&RPSRQHQW2SWL RQ
NOTE
Before you can activate this option you must have already loaded a package form number. If this
is not the case, the button will remain inactive.
When this option is activated the following actions are started:
– A component is picked up from a specific track.
– If there already is a component beneath the component camera, it will be discarded.
– The options 7HVWand 0 HDVXUHcan be clicked on.
User Manual HS-50 6 Vision functions
Software-Version 5.01Edition 01/99 6.6 Test Component
253

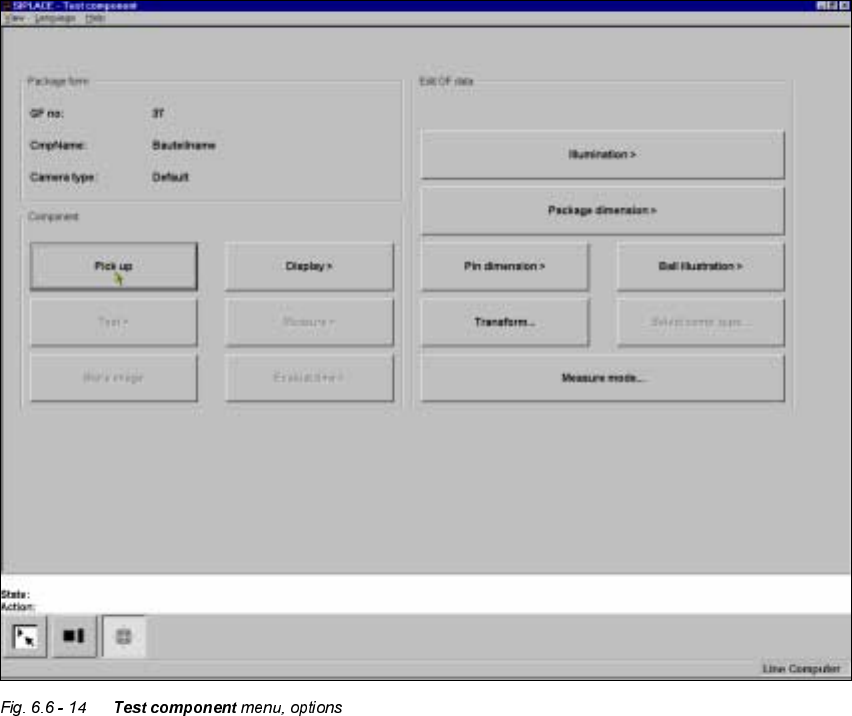

'LVSOD\&RPSRQHQW2SWL RQ
NOTE
Before you can activate this option you must have already loaded a package form number.
When this option is activated the following actions are started:
– The teach command will be given.
– The vision system generates the outside contours of the component from the synthetic descrip-
tion.
– The video image with the real camera image and the model overlayed on it will be displayed
on the screen.
– The header with commentaries is displayed.
The operator can now check the synthetic description visually against the real image.
