User Manual HS-50 6 Vision functions
Software-Version 5.01Edition 01/99 6.6 Test Component
267
6 WRUHLPDJH2 S WLRQ
NOTE
You cannot click on this option until a package form number has been loaded.

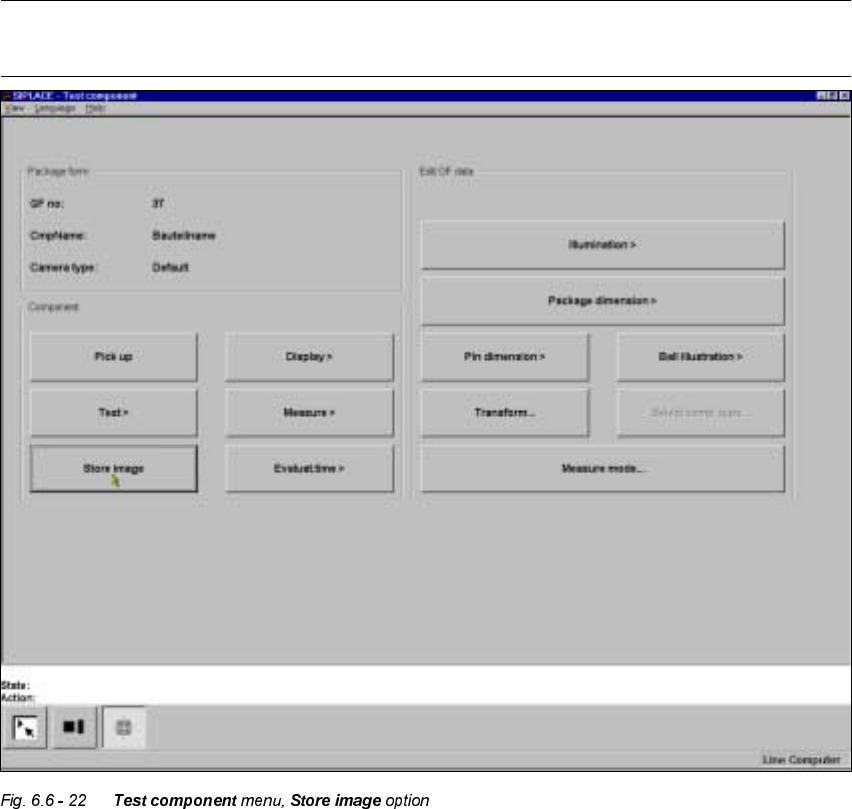

This menu is used to store the generated video image as a file on the hard disk of the machine
controller. The file name and path are preset to:
C:\TMP\MVSBILD.MVS
For further analysis at Siemens AG, copy the file from the hard disk of the MVS controller onto a
diskette and send it to the PL EA Service Department.
6 Vision functions User Manual HS-50
6.6 Test Component Software-Version 5.01 Edition 01/99
268
(YDOXDWWL P H2SWLRQ
NOTE
You cannot click on this option until a package form number has been loaded.

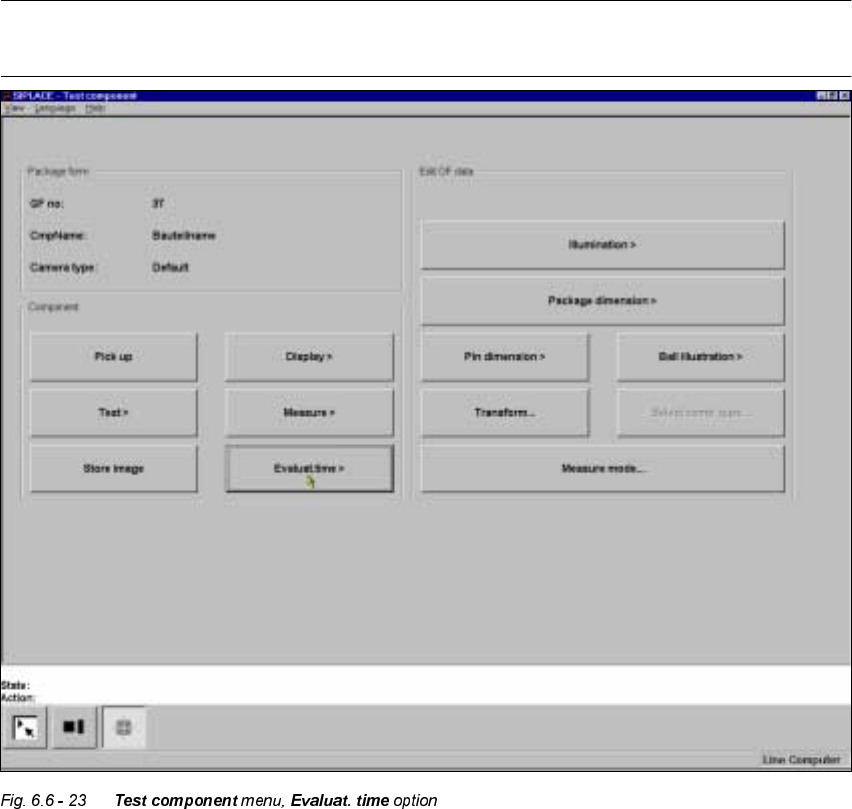

This option is used to display the evaluation time for a selected component. Once you have acti-
vated the function, the following actions are started:
– The measuring procedure is activated.

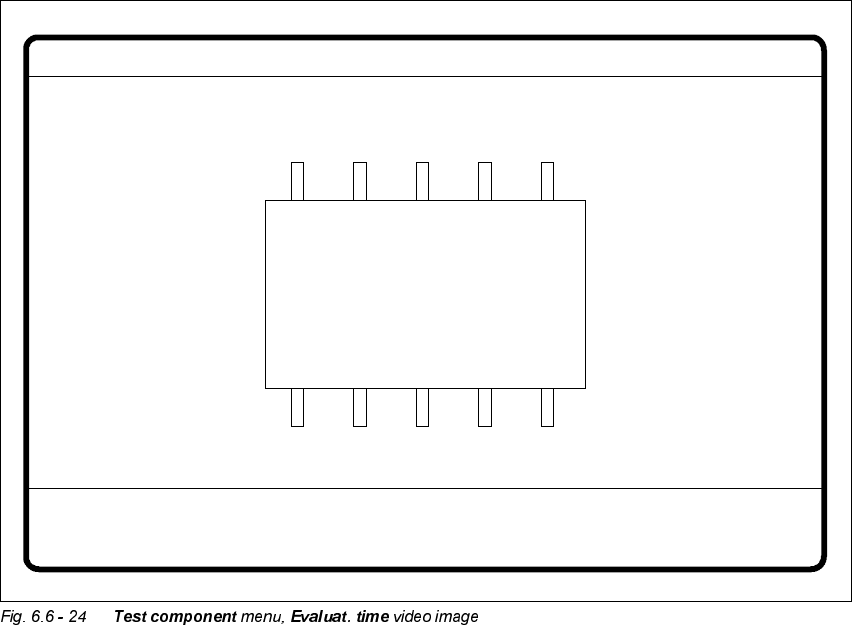

– The video image appears on the screen
– The evaluation time is overlaid.
User Manual HS-50 6 Vision functions
Software-Version 5.01Edition 01/99 6.6 Test Component
269
Å Press the RETURN key to start the measurement. Once the measuring procedure has ended,
the measuring time in msec is overlaid.
Å Press ESC to leave the option. The video image will disappear and the ‘Test component’ menu
will appear once more.
,QIRUPDWLRQRQWKH*URXSRI(GLW*)'DWD2SWLRQV
The following options belong to the (GLW*)GDWD group of options:
– Lighting
– Package dimensions
– Lead dimensions
– Ball illustration
– Transformation table
– Select component type (80F machines only)
– Measure mode
GF No. = 5
Evaluation time
Evaluation time [ms] =
RET: Measure component
