User Manual HS-50 6 Vision functions Software-Version 5.01Edition 01/99 6.7 Guidelines for Describing Package Form s 297 )ORZ &KD UW VIRU3URJUDPPLQJDQG7 HVWLQJD3DFNDJH )RUP*) Components ar e optica l…
6 Vision functions User Manual HS-50
6.7 Guidelines for Describing Package Forms Software-Version 5.01 Edition 01/99
296
If a package form is transferred to the station with the .SST file, then the settings for the .SST file
for measuring the package form will also be transferred. The package form interpreter will remain
inactive.
LC
Package form library
Describe package form & components
Assign nozzles
Select cameras
.OGF
Package form interpreter
SC
MVS
Automatic selection of meas. modes
Automatic lighting selection
Hard disk
GF manipulator
.SST
Important note:
Manipulation of components at the station must be the exception and not the rule
In general, only a few components have to be changed.
User Manual HS-50 6 Vision functions
Software-Version 5.01Edition 01/99 6.7 Guidelines for Describing Package Forms
297

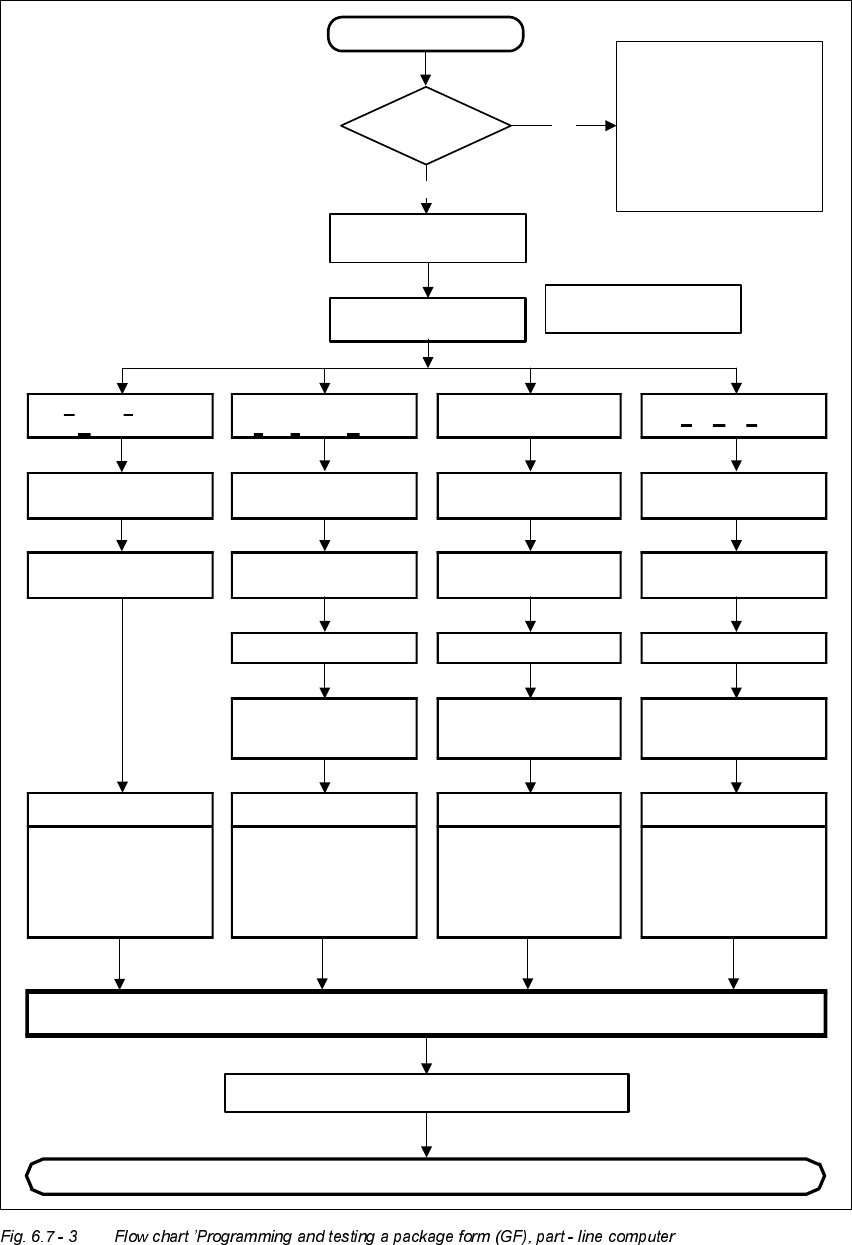

)ORZ&KDUWVIRU3URJUDPPLQJDQG7HVWLQJD3DFNDJH)RUP*)
Components are optically centered in SIPLACE automatic placement systems. It is also neces-
sary to create the package form description for the component on the SIPLACE line computer first.
We recommend that you always take the package form definitions and dimensions from the data
sheet.
The package form settings can be modified at the station. There are different measuring methods.
This means that the lighting settings will also vary. Almost all components can be optically cen-
tered by combining all the setting options in the optimum manner.
You should note, however, that a great many package forms have already been defined as stan-
dard. This means that the manipulation of package forms at the station should be the exception,
rather than the rule.
We can also provide the package form definitions of special components and hard to center com-
ponents as an extra service. Contact us for further details of this application.
6 Vision functions User Manual HS-50
6.7 Guidelines for Describing Package Forms Software-Version 5.01 Edition 01/99
298
Irregular
FDC
Regular
F
ully defined Comp.
P
artially defined
C
omponent
Ball Grid Array
Body dimensions
Body dimensions Body dimensions
SAVE
Continue programming at the station
New component
GF file
present?
No
Yes
Program additional file information
Please note that when
standard package form
are used by TEST
COMPONENT,
the component detection
may be changed (copy the
GF file [ _.SST file ] again,
if necessary).
Program GF file with
No. > 1499
Select package type
Program GF file with
No. > 1499
Enter
user comment
Enter
user comment
Enter
user comment
Enter
user comment
GF nominal dimensions
and tolerances
GF nominal dimensions
and tolerances
GF nominal dimensions
and tolerances
GF nominal dimensions
and tolerances
Program
group of leads,
lead model data
Program
group of leads,
lead model data
Program
ball pitch,
lead model data
Editing data
Nozzle type (camera)
sensor system type,
vacuum checks/
editing parameters/
reduction in acceleration
Editing data
Nozzle type (camera)
sensor system type,
vacuum checks/
editing parameters/
reduction in acceleration
Editing data
Nozzle type (camera)
sensor system type,
vacuum checks/
editing parameters/
reduction in acceleration
Editing data
Nozzle type (camera)
sensor system type,
vacuum checks/
editing parameters/
reduction in acceleration
